TE Connectivity AMP Connectors 5-223961-1 Equivalent & Substitute Parts

Part Overview

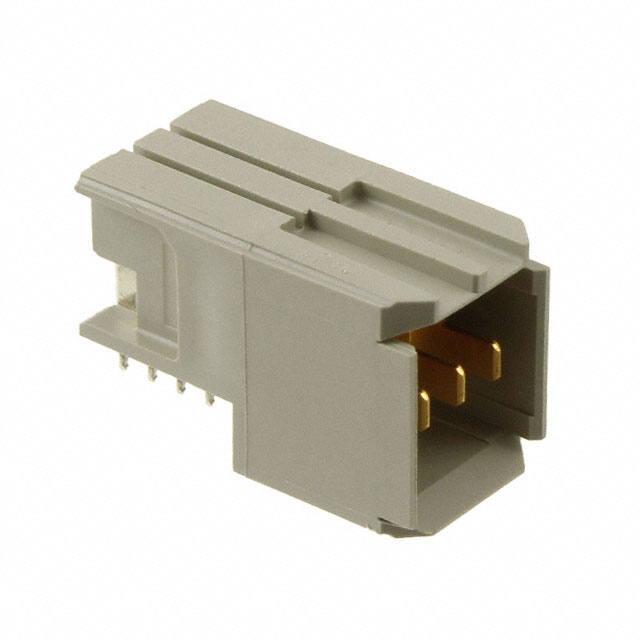

The TE Connectivity AMP Connectors 5-223961-1 is a 3-position backplane connector header with male blades designed for board edge mounting applications. This connector features press-fit termination, right-angle orientation, and is part of the Universal Power Modules (UPM) series. The part is classified as Active product status and is RoHS Compliant, making it suitable for modern electronic assembly requirements. Substitute parts are identified when equivalent electrical and mechanical specifications are required for design flexibility, inventory management, or supply chain continuity while maintaining full functional compatibility.

Substiute Parts

5-223961-1

TE Connectivity AMP ConnectorsIn Stock: 10545-223961-1 Datasheet

Current PartRFQ

5-5223961-1

TE Connectivity AMP ConnectorsIn Stock: 96075-5223961-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 5-223961-1 are identified based on strict equivalence across all critical electrical and mechanical parameters. The substitution logic is based on the following key parameters that must remain identical:

• Connector Type and Style: Header with male blades and blade power configuration
• Position Count: 3-position connector with all positions loaded
• Mounting Configuration: Board edge mounting with through-hole, right-angle orientation
• Termination Method: Press-fit termination technology
• Electrical Ratings: 250V voltage rating and UL94 V-0 flammability classification
• Environmental Specifications: Operating temperature range of -55°C to 125°C and MSL 1 rating
• Contact Material: Gold or Gold-Palladium finish
• Series Compatibility: UPM (Universal Power Modules) series designation

The substitute part 5-5223961-1 meets all these criteria and is therefore classified as a direct equivalent for the 5-223961-1.

Parameter Comparison

Engineering Selection Recommendations

Both the 5-223961-1 and 5-5223961-1 are Active product status connectors from TE Connectivity AMP Connectors and are fully compliant with RoHS requirements. The 5-223961-1 carries RoHS Compliant certification, while the 5-5223961-1 carries ROHS3 Compliant certification, representing an enhanced compliance level. Both parts share identical electrical specifications, mechanical configurations, and environmental ratings.

Selection between these parts should be based on inventory availability and supply chain requirements. The 5-5223961-1 currently maintains higher inventory levels (9526 pieces) compared to the 5-223961-1 (989 pieces), making it suitable for high-volume production requirements. Both parts are suitable for applications requiring 3-position blade power connectors with board edge mounting in the -55°C to 125°C operating range at 250V.

Frequently Asked Questions (FAQ)

Q: Are the 5-223961-1 and 5-5223961-1 fully interchangeable?

A: Yes. Both parts are identical in all critical electrical and mechanical parameters including connector type, position count, mounting configuration, termination method, voltage rating, operating temperature range, and contact finish. They are direct equivalents for backplane connector applications.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: ROHS3 Compliant represents an updated compliance designation reflecting current RoHS Directive requirements. Both certifications indicate compliance with hazardous substance restrictions. The 5-5223961-1 carries the more current ROHS3 designation.

Q: Can these connectors be used in applications requiring 250V operation?

A: Yes. Both the 5-223961-1 and 5-5223961-1 are rated for 250V operation and are suitable for power distribution applications within this voltage specification.

Q: What is the operating temperature range for these connectors?

A: Both parts operate across the range of -55°C to 125°C, making them suitable for industrial and commercial applications with extended temperature requirements.

Q: Are these connectors suitable for high-reliability applications?

A: Yes. Both parts feature UL94 V-0 flammability rating, gold or gold-palladium contact finish, and MSL 1 (Unlimited) moisture sensitivity level, indicating suitability for high-reliability applications.

Q: What mounting method do these connectors use?

A: Both connectors use press-fit termination with board edge, through-hole, right-angle mounting configuration, providing secure mechanical and electrical connection to printed circuit boards.

Q: Are there any packaging differences between these parts?

A: Both parts are supplied in tube packaging. The primary difference is inventory availability, with the 5-5223961-1 maintaining higher stock levels.
