TE Connectivity 5223016-4 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 5223016-4 is a 120-position backplane connector header designed for through-hole PCB mounting. This Futurebus-style male pin header operates across an industrial temperature range of -55°C to 125°C with a 30V voltage rating. The connector features press-fit termination, gold-plated contacts, and UL94 V-0 flammability compliance, making it suitable for high-reliability applications requiring robust interconnection solutions.

The part is currently active in production with 669 units in stock. Equivalent substitute parts are available from Amphenol ICC (FCI) under the Metral® series, offering comparable electrical and mechanical specifications with extended inventory availability.

Substiute Parts

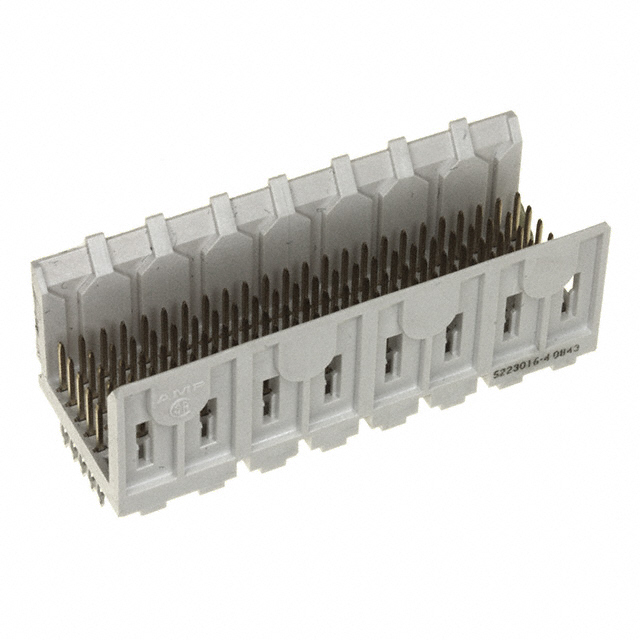

5223016-4

TE Connectivity AMP ConnectorsIn Stock: 7205223016-4 Datasheet

Current PartRFQ

89008-110LF

Amphenol ICC (FCI)In Stock: 129089008-110LF Datasheet

SimilarRFQ

89008-116LF

Amphenol ICC (FCI)In Stock: 100017689008-116LF Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 5223016-4 is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Number of Positions: 120
• Pitch: 0.079" (2.00mm)
• Number of Rows: 5
• Connector Type: Header, Male Pins
• Mounting Type: Through Hole
• Termination: Press-Fit
• Contact Finish: Gold
• Operating Temperature Range: -55°C ~ 125°C
• Material Flammability Rating: UL94 V-0
• RoHS Compliance: Required

The substitute parts identified (89008-110LF and 89008-116LF) from Amphenol ICC (FCI) meet all mandatory matching parameters. Both parts are manufactured under the Metral® series and maintain identical position count, pitch spacing, row configuration, and mounting specifications. Both substitutes provide equivalent press-fit termination with gold-plated contacts and operate within the same temperature range with matching flammability certification.

Parameter Comparison

Engineering Selection Recommendations

Both Amphenol ICC (FCI) substitute parts (89008-110LF and 89008-116LF) are qualified equivalents for the TE Connectivity 5223016-4 based on compliance and certification alignment.

Selection Criteria:

All three parts maintain active product status with full RoHS compliance and UL94 V-0 flammability certification. The substitute parts are manufactured under the Metral® series and provide identical electrical and mechanical interface specifications. Both substitutes carry MSL 1 (Unlimited) moisture sensitivity rating, matching the original part.

The Amphenol ICC parts provide documented current rating specifications (1A) and contact finish thickness data (30.0µin / 0.76µm), offering additional technical transparency. Both substitute parts are available in significantly higher inventory quantities (1,275 units for 89008-110LF and 1,000,100 units for 89008-116LF) compared to the original part (669 units).

Selection between the two Amphenol ICC substitutes depends on supply chain requirements and inventory availability. Both parts are functionally equivalent for PCB-mounted backplane connector applications requiring 120-position through-hole headers with press-fit termination.

Frequently Asked Questions (FAQ)

Q: What determines if a part can substitute for the TE Connectivity 5223016-4?

A: Substitution requires matching the following parameters: 120-position count, 0.079" (2.00mm) pitch, 5-row configuration, through-hole mounting, press-fit termination, gold contact finish, -55°C to 125°C operating range, and UL94 V-0 flammability rating. All three parts meet these criteria.

Q: Are the Amphenol ICC 89008-110LF and 89008-116LF parts interchangeable?

A: Both Amphenol ICC parts are functionally equivalent. They share identical electrical and mechanical specifications, including 120 positions, 2.00mm pitch, 5-row layout, press-fit termination, and gold plating. Selection depends on inventory availability and supply chain preferences.

Q: What is the difference between the TE Connectivity part and the Amphenol ICC substitutes?

A: The primary differences are manufacturer and series designation (Futurebus vs. Metral®). The Amphenol ICC parts provide documented current rating (1A) and contact finish thickness specifications (30.0µin), while the original part does not specify these values. All parts maintain identical connector geometry, termination method, and environmental ratings.

Q: Can these parts be used in applications requiring the 30V voltage rating?

A: The TE Connectivity 5223016-4 specifies a 30V voltage rating. The Amphenol ICC substitute parts do not provide explicit voltage rating specifications in the available data. Applications requiring confirmed 30V operation should reference the complete technical datasheets from Amphenol ICC to verify voltage capability.

Q: Are all three parts RoHS compliant?

A: Yes. The TE Connectivity 5223016-4 and both Amphenol ICC substitutes (89008-110LF and 89008-116LF) are RoHS compliant. All parts carry MSL 1 (Unlimited) moisture sensitivity rating and EAR99 export classification.

Q: What is the difference between the natural and white color options on the Amphenol ICC parts?

A: The Amphenol ICC parts are available in both natural and white color variants. The TE Connectivity original part is specified as natural color only. Color selection does not affect electrical or mechanical performance and is determined by application aesthetics or assembly documentation requirements.

Q: Are these parts suitable for high-reliability applications?

A: All three parts carry UL94 V-0 flammability certification and operate across the industrial temperature range of -55°C to 125°C, making them suitable for high-reliability backplane connector applications. RoHS compliance and MSL 1 rating support use in controlled manufacturing environments.
