SCHURTER 5220.0623.1 AC Power Connector - Equivalent & Substitute Parts

Part Overview

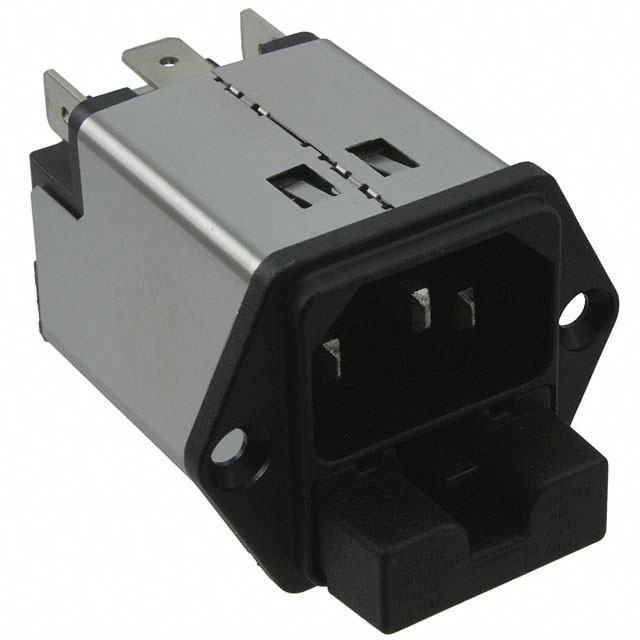

The SCHURTER 5220.0623.1 is an IEC 320-C14 power entry module receptacle designed for panel-mount applications in commercial equipment. This filtered connector accommodates a 6A current load at 250VAC and includes integrated EMI/RFI filtering with a fuse holder. The product is active and widely stocked, with 927 units currently available. Substitute parts are identified when equivalent electrical specifications, mechanical compatibility, and regulatory approvals align with the original design requirements.

Substiute Parts

5220.0623.1

SCHURTER Inc.In Stock: 9855220.0623.1 Datasheet

Current PartRFQ

6EGG1-2

TE Connectivity Corcom FiltersIn Stock: 33146EGG1-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The TE Connectivity Corcom Filters 6EGG1-2 qualifies as a direct substitute based on the following alignment of critical parameters:

Electrical Compatibility:

• Identical connector style (IEC 320-C14) and type (Receptacle, Male Blades - Module)
• Matching current rating at appliance inlet (6A)
• Compatible voltage rating (120/250VAC encompasses the 250VAC requirement)
• Identical number of positions (3)
• Equivalent filter type (Filtered EMI/RFI - Commercial) with matching current rating (6A)

Mechanical Compatibility:

• Identical mounting type (Panel Mount, Flange)
• Matching termination standard (Quick Connect - 0.250"/6.3mm)
• Fuse holder accommodation (Yes, Fuse Not Included)
• Panel cutout dimensions within acceptable tolerance (28.96mm x 33.02mm vs. 29.00mm x 32.00mm)

Regulatory & Compliance:

• ROHS3 Compliant (matching status)
• Approved by recognized agencies (CSA, UL, VDE) with overlap to original certifications (cULus, ENEC)

Parameter Comparison

Engineering Selection Recommendations

Both the SCHURTER 5220.0623.1 and TE Connectivity 6EGG1-2 are active products with current inventory availability. Selection between these parts should be based on:

Supply Chain Considerations: The TE Connectivity 6EGG1-2 offers higher stock availability (3299 units vs. 927 units), which may be advantageous for high-volume production or extended lead-time mitigation.

Regulatory Alignment: The SCHURTER part carries cULus and ENEC approvals. The TE Connectivity part carries CSA, UL, and VDE approvals. Both meet recognized safety standards. UL certification is common to both suppliers' approval portfolios, ensuring compatibility with North American and international regulatory requirements.

Mechanical Fit: Panel cutout dimensions differ slightly (0.04mm and 1.02mm variance). Both dimensions fall within standard manufacturing tolerances for panel-mount connectors and do not present installation barriers.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 6EGG1-2 be used as a direct replacement for the SCHURTER 5220.0623.1?

A: Yes. Both parts share identical electrical specifications (6A at 250VAC), connector style (IEC 320-C14), mounting configuration (panel mount with flange), and termination method (0.250" quick connect). Panel cutout dimensions are within acceptable manufacturing tolerance. Both are ROHS3 compliant and carry overlapping regulatory approvals.

Q: Are there differences in voltage rating between these parts?

A: The SCHURTER part is rated 250VAC. The TE Connectivity part is rated 120/250VAC. The TE Connectivity rating encompasses the SCHURTER specification, making it suitable for the same application.

Q: Do panel cutout dimension differences affect installation?

A: The panel cutout dimensions differ by less than 1.1mm in each axis (SCHURTER: 29.00mm x 32.00mm; TE Connectivity: 28.96mm x 33.02mm). These variations are within standard manufacturing tolerances for panel-mount connectors and do not prevent proper installation.

Q: Are the fuse holder specifications identical?

A: Yes. Both parts accommodate a fuse holder with identical configuration. Neither part includes a fuse; fuses must be sourced separately.

Q: What is the difference in regulatory approvals?

A: SCHURTER carries cULus and ENEC approvals. TE Connectivity carries CSA, UL, and VDE approvals. Both include UL certification, which is recognized across North American and international markets. The approvals are complementary rather than conflicting.

Q: Which part should be selected for new designs?

A: Both parts are suitable for new designs. Selection should be based on supply availability, lead time, and existing supplier relationships. The TE Connectivity part offers higher current inventory levels.
