TE Connectivity AMP Connectors 520935-5 Equivalent & Substitute Parts

Part Overview

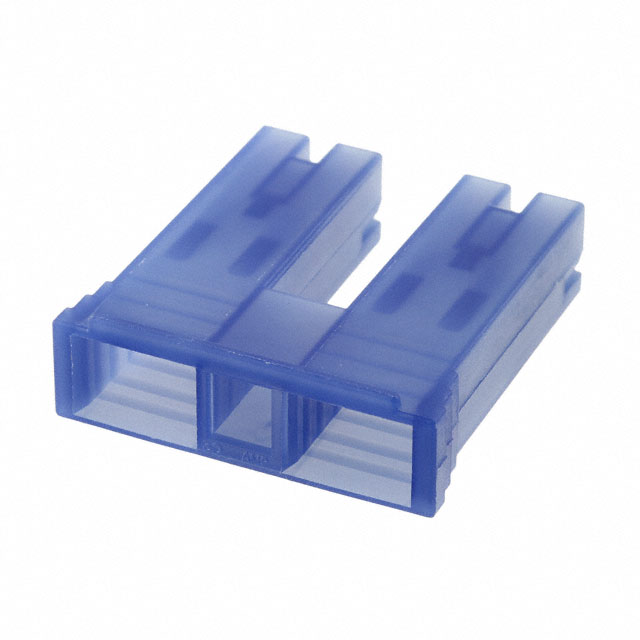

The TE Connectivity AMP Connectors 520935-5 is a 2 Position Housing Connector Female Receptacle in the Faston series, designed for 0.250" (6.35mm) Quick Connect/Disconnect applications. This component functions as a receptacle housing for inline, free-hanging connector assemblies and is manufactured from nylon material in blue color.

The 520935-5 carries an Obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and maintenance requirements for systems utilizing this connector housing.

Substiute Parts

520935-5

TE Connectivity AMP ConnectorsIn Stock: 908520935-5 Datasheet

Current PartRFQ

1-520935-5

TE Connectivity AMP ConnectorsIn Stock: 9601-520935-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 520935-5 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Terminal Type: Quick Connect, Disconnect
• Gender: Female, Receptacle
• Terminal Size: 0.250" (6.35mm)
• Number of Positions: 2
• Stacking Direction: Side to Side
• Mounting Type: Free Hanging (In-Line)
• Material: Nylon
• Color: Blue
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 1-520935-5 meets all mandatory matching parameters and is therefore classified as a direct equivalent. This substitute maintains identical electrical and mechanical specifications while differing in packaging configuration and product status.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 1-520935-5 is functionally and mechanically equivalent to the 520935-5 across all critical connector specifications. The primary distinction is product status: the original 520935-5 is classified as Obsolete, while 1-520935-5 maintains Active status with TE Connectivity AMP Connectors.

Both parts satisfy ROHS3 compliance requirements and carry identical Moisture Sensitivity Level ratings. The 1-520935-5 is supplied in Bulk packaging, whereas the original part packaging specification is not provided in the technical data.

For applications requiring the 0.250" (6.35mm) 2-position female receptacle housing connector in the Faston series, the 1-520935-5 provides continuity of supply and design compatibility. The Active product status of 1-520935-5 ensures ongoing manufacturer support and availability.

Frequently Asked Questions (FAQ)

Q: Can 1-520935-5 be used as a direct replacement for 520935-5?

A: Yes. The 1-520935-5 is a direct equivalent. Both parts share identical specifications for terminal type, gender, terminal size, number of positions, stacking direction, mounting type, material, color, and compliance ratings. The primary difference is that 1-520935-5 maintains Active product status while 520935-5 is Obsolete.

Q: What are the critical parameters that determine substitution eligibility?

A: Substitution eligibility is determined by matching: Terminal Type (Quick Connect, Disconnect), Gender (Female, Receptacle), Terminal Size (0.250"/6.35mm), Number of Positions (2), Stacking Direction (Side to Side), Mounting Type (Free Hanging/In-Line), Material (Nylon), Color (Blue), RoHS Status (ROHS3 Compliant), and Moisture Sensitivity Level (1/Unlimited).

Q: Does packaging affect electrical or mechanical compatibility?

A: No. Packaging configuration does not affect electrical or mechanical compatibility. The 1-520935-5 is supplied in Bulk packaging, while the original 520935-5 packaging is not specified. Both parts are functionally identical for connector applications.

Q: Are both parts RoHS compliant?

A: Yes. Both 520935-5 and 1-520935-5 are ROHS3 Compliant and carry identical Moisture Sensitivity Level ratings of 1 (Unlimited).

Q: Why is the original part marked as Obsolete?

A: The 520935-5 carries an Obsolete designation from TE Connectivity AMP Connectors. The 1-520935-5 maintains Active status, ensuring continued availability and manufacturer support for this connector housing specification.
