TE Connectivity 5207953-2 Jackscrew Socket Equivalent & Substitute Parts

Part Overview

The TE Connectivity 5207953-2 is an active D-Sub jackscrew socket accessory designed for the AMPLIMITE HD series connectors (HDE, HDF, HDP models). This component functions as a screw lock female connector with a 4-40 socket thread configuration. The part is manufactured by TE Connectivity AMP Connectors and is currently in active product status with 686 pieces available in new original inventory. Substitute parts are identified when equivalent electrical and mechanical parameters are required for applications where the primary part is unavailable or when alternative packaging or inventory levels necessitate component alternatives.

Substiute Parts

5207953-2

TE Connectivity AMP ConnectorsIn Stock: 7395207953-2 Datasheet

Current PartRFQ

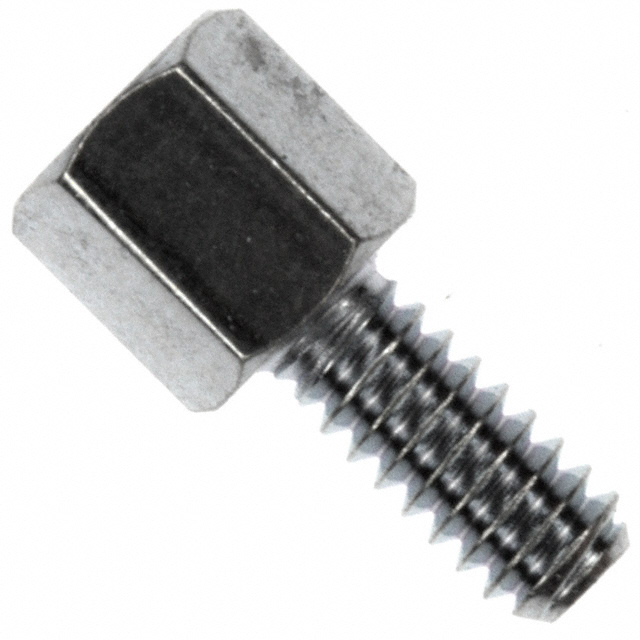

5207953-3

TE Connectivity AMP ConnectorsIn Stock: 156765207953-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 5207953-2 is determined by strict equivalence across the following critical parameters:

Mandatory Equivalence Parameters:

• Manufacturer: TE Connectivity AMP Connectors
• Series: AMPLIMITE HD
• Accessory Type: Jackscrew Socket
• For Use With: AMPLIMITE Series HDE, HDF, HDP
• Thread Size: 4-40 Socket, 4-40 Screw
• Length - Below Head: 0.250" (6.35mm)
• RoHS Status: RoHS Compliant
• Moisture Sensitivity Level: 1 (Unlimited)
• REACH Status: REACH Affected

The substitute part 5207953-3 meets all mandatory equivalence parameters, establishing direct functional and mechanical interchangeability within AMPLIMITE HD connector assemblies. Both parts share the same base product number (5207953) and are differentiated only by packaging designation and HTSUS classification, which do not affect electrical or mechanical performance in the application.

Parameter Comparison

Engineering Selection Recommendations

Both the 5207953-2 and 5207953-3 are active products manufactured by TE Connectivity AMP Connectors with full RoHS compliance and REACH compliance status. Selection between these parts is based on inventory availability and application requirements rather than electrical or mechanical performance differences.

The 5207953-3 substitute part provides significantly higher inventory availability (15,610 pieces versus 686 pieces), making it the preferred selection for high-volume production requirements or applications with extended lead time constraints. Both parts maintain identical functional specifications for AMPLIMITE HD series connector assemblies and are suitable for applications requiring MSL 1 moisture sensitivity classification.

Frequently Asked Questions (FAQ)

Q: Are 5207953-2 and 5207953-3 electrically and mechanically interchangeable?

A: Yes. Both parts are jackscrew sockets for AMPLIMITE HD series connectors with identical thread size (4-40), length (0.250" below head), and mechanical specifications. They function identically within HDE, HDF, and HDP connector assemblies.

Q: What is the difference between 5207953-2 and 5207953-3?

A: The parts differ in packaging designation and HTSUS classification code. The 5207953-3 carries HTSUS code 7318.15.6080 while the 5207953-2 carries HTSUS code 7318.15.2010. These classifications do not affect component performance or compatibility.

Q: Which part should be selected for new designs?

A: Either part is suitable for new designs. Selection should be based on inventory availability and supply chain requirements. The 5207953-3 offers higher stock levels (15,610 pieces) compared to 5207953-2 (686 pieces).

Q: Are both parts RoHS and REACH compliant?

A: Yes. Both 5207953-2 and 5207953-3 are RoHS Compliant and REACH Affected, meeting current environmental and regulatory requirements.

Q: What connector series are these jackscrew sockets compatible with?

A: Both parts are designed for use with AMPLIMITE Series HDE, HDF, and HDP D-Sub connectors.

Q: What is the moisture sensitivity level for these parts?

A: Both parts have Moisture Sensitivity Level (MSL) 1, indicating unlimited shelf life without moisture control requirements.
