TE Connectivity 5206973-2 D-Sub 50 Position Receptacle Equivalent & Substitute Parts

Part Overview

The TE Connectivity 5206973-2 is a 50 position D-Sub receptacle connector with female sockets, configured for right-angle through-hole solder termination. This connector belongs to the AMPLIMITE HD-20 series and is classified as obsolete. The part features a shell size 5 (DD, D) layout with three rows of contacts, rated for 6A current and 125V voltage operation across an extended temperature range of -55°C to 105°C.

Due to its obsolete product status, locating equivalent or substitute components is necessary for ongoing system support, maintenance, and new design implementations. Substitute parts must maintain functional compatibility through matching electrical ratings, mechanical dimensions, and termination methods while potentially offering improved availability or enhanced specifications.

Substiute Parts

5206973-2

TE Connectivity AMP ConnectorsIn Stock: 7235206973-2 Datasheet

Current PartRFQ

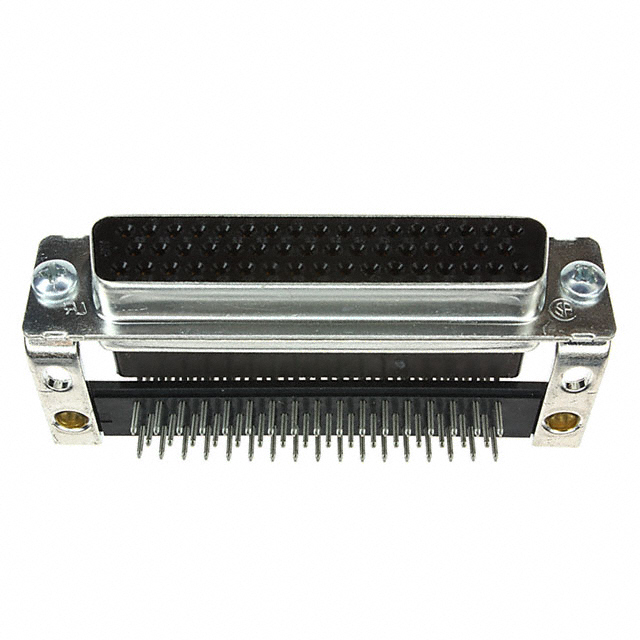

5745116-2

TE Connectivity AMP ConnectorsIn Stock: 9445745116-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 5206973-2 is determined by strict alignment with the following critical parameters:

Electrical Compatibility Requirements:

• Connector type must be receptacle with female sockets
• Position count must be 50
• Row configuration must be 3 rows
• Current rating must be 6A or greater
• Voltage rating must be 125V or greater
• Operating temperature range must encompass -55°C to 105°C

Mechanical Compatibility Requirements:

• Shell size must be 5 (DD, D)
• Mounting type must be through-hole, right-angle configuration
• Termination method must be solder
• Contact finish must be gold

Regulatory and Compliance Requirements:

• RoHS3 compliance required
• Moisture sensitivity level must be 1 (Unlimited)

The substitute part TE Connectivity 5206973-2 (base number 5206973) and 5745116-2 (base number 5745116) both satisfy these critical parameters. The 5745116-2 represents an active product variant within the AMPLIMITE HDP-20 series, offering improved availability compared to the obsolete HD-20 series original.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity 5745116-2

The 5745116-2 is the qualified substitute for the obsolete 5206973-2. Both connectors maintain identical electrical and core mechanical specifications across all critical parameters: 50 position receptacle configuration, 3-row layout, shell size 5 (DD, D), 6A current rating, 125V voltage rating, and -55°C to 105°C operating temperature range. Both parts are ROHS3 compliant with MSL 1 rating.

Differences and Considerations:

The 5745116-2 introduces the following variations from the original 5206973-2:

1. Product Status: The 5745116-2 is active, ensuring ongoing availability and supply chain support compared to the obsolete status of the original part.

2. Series Designation: The substitute belongs to the AMPLIMITE HDP-20 series versus the original AMPLIMITE HD-20 series, representing an evolution within the TE Connectivity D-Sub connector portfolio.

3. Dielectric Material: The 5745116-2 uses polyamide (PA) nylon with glass filling, providing enhanced material flammability rating (UL94 V-0) compared to the thermoplastic material of the original.

4. Shell Construction: The 5745116-2 features steel shell material with tin plating and includes mounting brackets with standard 4-40 screws, whereas the original has an unthreaded housing/shell design.

5. Backset Spacing: The 5745116-2 specifies 0.545" (13.84mm) backset spacing compared to 0.590" (14.99mm) for the original. This dimensional difference requires verification against printed circuit board layout and mechanical mounting requirements.

6. Contact Material: The 5745116-2 specifies phosphor bronze contact material, providing additional technical specification clarity.

Compliance Status:

Both parts maintain ROHS3 compliance and unlimited moisture sensitivity level (MSL 1). The 5745116-2 provides documented UL94 V-0 flammability rating, enhancing material safety documentation.

Selection Criteria:

Selection of the 5745116-2 as a substitute is appropriate when:

• Active product availability is required
• Enhanced material specifications (UL94 V-0 flammability) are acceptable or beneficial
• Mounting bracket integration with 4-40 screw fastening is compatible with system design
• Backset spacing of 0.545" (13.84mm) accommodates existing PCB layout and mechanical constraints

Frequently Asked Questions (FAQ)

Q: Can the 5745116-2 directly replace the 5206973-2 in existing designs?

A: The 5745116-2 maintains electrical compatibility across all critical parameters: 50 positions, 3 rows, shell size 5 (DD, D), 6A current, 125V voltage, and -55°C to 105°C operating range. However, the backset spacing differs (0.545" versus 0.590"), and the flange design changes from unthreaded housing to screw-mounted brackets. Verification against specific PCB layout and mechanical mounting requirements is necessary before implementation.

Q: What is the significance of the backset spacing difference?

A: Backset spacing defines the distance from the connector mounting plane to the rear of the connector body. The 5745116-2 backset of 0.545" (13.84mm) differs from the original 0.590" (14.99mm). This affects the overall depth profile and must be evaluated against available PCB space and system enclosure constraints.

Q: Are both parts RoHS compliant?

A: Yes, both the 5206973-2 and 5745116-2 are ROHS3 compliant, meeting current environmental and hazardous substance restrictions.

Q: What is the difference between the AMPLIMITE HD-20 and HDP-20 series?

A: The 5206973-2 belongs to the AMPLIMITE HD-20 series (obsolete), while the 5745116-2 belongs to the AMPLIMITE HDP-20 series (active). The HDP-20 represents an updated product line with enhanced specifications including improved flammability rating (UL94 V-0) and integrated mounting bracket features.

Q: Does the dielectric material change affect electrical performance?

A: Both dielectric materials (thermoplastic in the original and polyamide nylon glass-filled in the substitute) support the identical electrical ratings of 6A current and 125V voltage across the -55°C to 105°C temperature range. The polyamide material in the 5745116-2 provides enhanced material flammability characteristics.

Q: What is the contact material composition?

A: The 5745116-2 specifies phosphor bronze contact material with gold finish. The original 5206973-2 contact material composition is not specified in the provided documentation.

Q: Are there packaging differences between the two parts?

A: The 5206973-2 packaging is not specified in the provided data. The 5745116-2 is supplied in bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: What inventory status should be considered?

A: The 5206973-2 shows 675 pieces in stock as new original inventory. The 5745116-2 shows 906 pieces in stock as new original inventory. As an active product, the 5745116-2 offers superior long-term availability compared to the obsolete 5206973-2.

Q: Are both parts suitable for the same voltage and current applications?

A: Yes, both parts are rated for 6A current and 125V voltage, making them electrically equivalent for applications within these specifications.

Q: What mounting configuration differences exist?

A: Both parts feature through-hole, right-angle mounting. The primary difference is the flange design: the 5206973-2 has an unthreaded housing/shell, while the 5745116-2 includes mating side standard screws (4-40) with mounting brackets.
