Amphenol ICC 51952-001 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 51952-001 is a 26-position backplane connector header featuring male pins and blades for blade power applications. This connector is designed for through-hole mounting with solder termination, supporting 24 signal and 2 power contacts in a 4-row configuration with 0.100" (2.54mm) pitch spacing.

The 51952-001 carries an Obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and maintenance requirements for systems utilizing this connector family.

Substiute Parts

51952-001

Amphenol ICC (FCI)In Stock: 91851952-001 Datasheet

Current PartRFQ

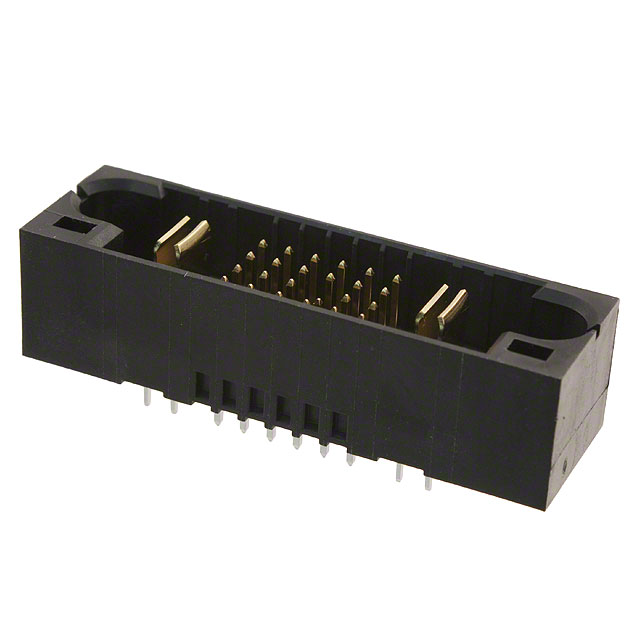

51952-001LF

Amphenol ICC (FCI)In Stock: 93451952-001LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 51952-001 is determined by strict equivalence across the following critical parameters:

Connector type, style, and configuration (Header, Male Pins and Blades, Blade Power) Position count and contact layout (26 positions, 24 Signal + 2 Power) Pitch spacing (0.100" / 2.54mm) Row configuration (4 rows) Mounting and termination method (Through Hole, Solder) Contact finish specification (Gold or Gold, GXT™ at 30.0µin thickness) Physical color and material properties (Black, UL94 V-0) Operating temperature range (-20°C ~ 105°C) Moisture sensitivity classification (MSL 1)

The 51952-001LF qualifies as a direct substitute based on full alignment with all critical parameters. The primary distinction is product status and regulatory compliance, not functional or mechanical characteristics.

Parameter Comparison

Engineering Selection Recommendations

The 51952-001LF is the direct functional equivalent of the 51952-001. Both parts share identical electrical and mechanical specifications across all critical parameters that determine connector compatibility and performance.

Selection between these parts should be based on the following factors:

For new designs or production requiring regulatory compliance, the 51952-001LF is the appropriate choice. It carries Active product status and RoHS Compliant certification, ensuring long-term availability and alignment with current environmental regulations.

For legacy system maintenance or retrofit applications where the original 51952-001 is specified, the 51952-001LF provides full functional interchangeability without design modification. The connector geometry, pin configuration, contact layout, and electrical characteristics are identical.

The 51952-001LF is supplied in Tray packaging, which may differ from original procurement specifications. Verify packaging requirements for your application before final part selection.

Frequently Asked Questions (FAQ)

Q: Can the 51952-001LF be used as a direct replacement for the 51952-001 in existing assemblies?

A: Yes. The 51952-001LF is mechanically and electrically identical to the 51952-001. All connector dimensions, pin configurations, contact layouts, and electrical ratings are equivalent. No design changes are required for substitution.

Q: What is the primary difference between these two parts?

A: The 51952-001 is Obsolete and RoHS non-compliant, while the 51952-001LF is Active and RoHS Compliant. The functional specifications are identical.

Q: Does the 51952-001LF meet the same operating temperature and environmental specifications?

A: Yes. Both parts operate across the identical temperature range (-20°C ~ 105°C), carry the same UL94 V-0 flammability rating, and share MSL 1 (Unlimited) moisture sensitivity classification.

Q: Are there any compatibility concerns with PCB layout or mounting?

A: No. The 51952-001LF maintains the same through-hole mounting footprint, solder termination method, and 0.100" (2.54mm) pitch spacing as the 51952-001. Existing PCB designs require no modification.

Q: What packaging format is the 51952-001LF supplied in?

A: The 51952-001LF is supplied in Tray packaging. Confirm packaging compatibility with your assembly and logistics requirements.

Q: Are both parts suitable for blade power connector applications?

A: Yes. Both the 51952-001 and 51952-001LF are designed for blade power applications with identical contact layout (24 Signal, 2 Power) and gold contact finish specifications.
