TE Connectivity AMP Connectors 5179010-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 5179010-2 is a 60 position rectangular connector receptacle with outer shroud contacts designed for surface mount applications. This connector features gold-plated contacts and is part of the Free Height (FH) series. The part is currently active in production status with 1115 pieces available in new original inventory. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity while maintaining full functional compatibility.

Substiute Parts

5179010-2

TE Connectivity AMP ConnectorsIn Stock: 12205179010-2 Datasheet

Current PartRFQ

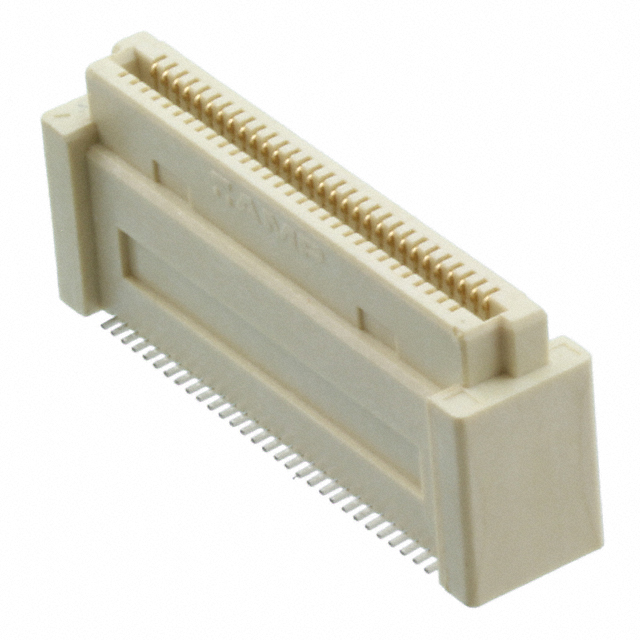

5-5179010-2

TE Connectivity AMP ConnectorsIn Stock: 22405-5179010-2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 5179010-2 are identified based on strict equivalence across all critical electrical and mechanical parameters. The substitution criteria are defined by the following parameters:

• Connector Type: Receptacle, Outer Shroud Contacts
• Number of Positions: 60
• Pitch: 0.031" (0.80mm)
• Number of Rows: 2
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Contact Finish Thickness: 8.00µin (0.203µm)
• Height Above Board: 0.463" (11.75mm)
• Mated Stacking Heights: 13mm
• Series: Free Height (FH)
• Features: Board Guide
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

Parts meeting all these parameters are classified as parametric equivalents and direct substitutes. Variations in any of these parameters result in functional or mechanical incompatibility.

Parameter Comparison

Engineering Selection Recommendations

Both the 5179010-2 and 5-5179010-2 are active production parts manufactured by TE Connectivity AMP Connectors with identical electrical and mechanical specifications. Both parts are ROHS3 compliant and carry MSL 1 (Unlimited) moisture sensitivity ratings, indicating equivalent environmental performance and regulatory compliance.

The 5-5179010-2 substitute part provides equivalent functionality with higher inventory availability at 2200 pieces compared to 1115 pieces for the main part number. Selection between these parts should be based on supply chain requirements and inventory management objectives, as all technical parameters are identical.

Frequently Asked Questions (FAQ)

Q: Are the 5179010-2 and 5-5179010-2 fully interchangeable?

A: Yes. Both parts are parametric equivalents with identical electrical and mechanical specifications, including connector type, position count, pitch, mounting type, contact finish, and physical dimensions. They are direct substitutes for each other.

Q: What determines if a part can substitute for the 5179010-2?

A: A substitute part must match all critical parameters: 60 positions, 0.031" (0.80mm) pitch, 2-row configuration, surface mount mounting type, gold contact finish at 8.00µin thickness, 0.463" (11.75mm) height above board, 13mm mated stacking height, Free Height (FH) series designation, board guide feature, ROHS3 compliance, and MSL 1 rating.

Q: Do both parts have the same RoHS and compliance status?

A: Yes. Both the 5179010-2 and 5-5179010-2 are ROHS3 compliant with MSL 1 (Unlimited) moisture sensitivity ratings. Both are active production parts from TE Connectivity AMP Connectors.

Q: Is there a difference in packaging between these parts?

A: Both parts are supplied in tube packaging. No packaging differences exist between the main part and substitute.

Q: Can I use the 5-5179010-2 in place of the 5179010-2 on my PCB assembly?

A: Yes. The 5-5179010-2 is a direct substitute with identical physical dimensions, mounting requirements, and electrical characteristics. No PCB layout or assembly process modifications are required.

Q: What is the difference between the part numbers 5179010-2 and 5-5179010-2?

A: The part numbers differ in nomenclature, but both parts are manufactured by TE Connectivity AMP Connectors with identical specifications. The difference in part number format does not indicate any functional or technical variation.
