TE Connectivity 5-175474-6 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 5-175474-6 is a 50-position receptacle connector for board-to-board applications with right-angle solder termination. This connector features an outer shroud contact style, board lock functionality, and gold-plated contacts rated at 30.0µin (0.76µm) thickness. The part operates with unlimited moisture sensitivity (MSL 1) and is classified as obsolete, necessitating identification of active equivalent alternatives for new designs and ongoing production requirements.

Substiute Parts

5-175474-6

TE Connectivity AMP ConnectorsIn Stock: 10875-175474-6 Datasheet

Current PartRFQ

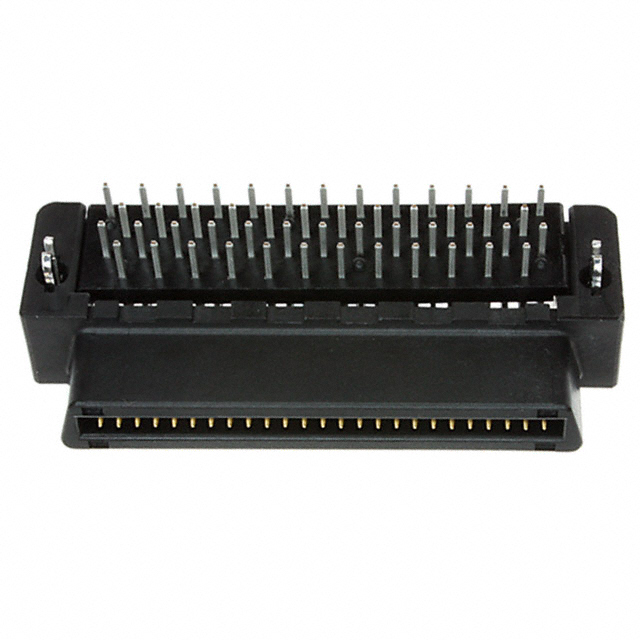

5-5175474-6

TE Connectivity AMP ConnectorsIn Stock: 11445-5175474-6 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 5-175474-6 is determined by strict equivalence across the following critical parameters:

• Connector Position Count: 50 positions maintained
• Row Configuration: 2-row arrangement preserved
• Connector Type: Receptacle configuration required
• Mounting Architecture: Through-hole, right-angle orientation required
• Termination Method: Solder termination required
• Contact Metallurgy: Gold plating with 30.0µin (0.76µm) thickness required
• Functional Features: Board lock mechanism required
• Series Compatibility: CHAMP .050 I series maintained
• Electrical Classification: D-Sub, D-Shaped connector category

The substitute part 5-5175474-6 maintains all critical parameters while advancing the product status from obsolete to active and improving regulatory compliance posture.

Parameter Comparison

Engineering Selection Recommendations

The 5-5175474-6 serves as the direct active substitute for the obsolete 5-175474-6. Selection of the substitute part is supported by the following engineering considerations:

Product Status Alignment: The substitute part maintains active product status, ensuring continued manufacturer support, availability, and technical documentation. The original part's obsolete classification creates supply chain risk and limits access to design resources.

Regulatory Compliance: The substitute part achieves ROHS3 compliance, addressing modern regulatory requirements for electronic component procurement. The original part's non-compliant status presents procurement restrictions in regulated markets and applications.

Functional Equivalence: All critical electrical and mechanical parameters remain identical between the main part and substitute, including position count, row configuration, termination method, contact metallurgy, and board lock features. The connector maintains the same CHAMP .050 I series specification and outer shroud contact architecture.

High-Density Classification: The substitute part incorporates high-density board-to-board design, representing a technical advancement while preserving backward compatibility with existing mechanical and electrical interfaces.

Export Classification: Both parts maintain identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications, ensuring consistent regulatory treatment across supply chain operations.

Frequently Asked Questions (FAQ)

Q: Can the 5-5175474-6 directly replace the 5-175474-6 in existing designs?

A: Yes. The substitute part maintains identical specifications across all critical parameters: 50-position receptacle configuration, 2-row arrangement, through-hole right-angle solder termination, gold contact finish at 30.0µin thickness, and board lock functionality. The connector series (CHAMP .050 I) and outer shroud contact style remain unchanged.

Q: What is the primary advantage of transitioning to the 5-5175474-6?

A: The substitute part is classified as active rather than obsolete, ensuring ongoing manufacturer support and supply availability. Additionally, the 5-5175474-6 achieves ROHS3 compliance, addressing regulatory requirements for modern procurement and end-market applications.

Q: Are there packaging differences between these parts?

A: The original part 5-175474-6 does not specify packaging information. The substitute part 5-5175474-6 is supplied in tray packaging. Verify tray packaging compatibility with your assembly and handling processes.

Q: Do these connectors have identical electrical performance?

A: Yes. Both parts maintain the same contact finish specification (gold at 30.0µin/0.76µm thickness), moisture sensitivity level (MSL 1, unlimited), and board lock features. Electrical performance characteristics are equivalent.

Q: What does "high density" mean for the 5-5175474-6?

A: The high-density classification indicates optimized contact spacing and connector geometry within the CHAMP .050 I series. This advancement maintains mechanical and electrical compatibility with the original part while improving space efficiency.

Q: Are export classifications affected by this substitution?

A: No. Both parts maintain identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications, ensuring consistent regulatory treatment for export and supply chain documentation.

Q: What is the inventory status for these parts?

A: The original part 5-175474-6 has 1015 pieces in stock. The substitute part 5-5175474-6 has 1124 pieces in stock, both listed as new original inventory.
