5174111-2 DIN Connector Header 96 Position Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 5174111-2 is a 96 Position DIN Connector Header with male pins, gold contact finish, and right-angle through-hole mounting. This backplane connector is designed for PCB applications requiring high-density interconnection in a 3-row configuration with 0.100" (2.54mm) pitch spacing.

The 5174111-2 is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support legacy system maintenance and production requirements.

Key Parameters

Parameter	Value
Connector Type	Header, Male Pins
Number of Positions	96
Pitch	0.100" (2.54mm)
Number of Rows	3
Style	C
Mounting Type	Through Hole, Right Angle
Termination	Solder
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution of the 5174111-2 is determined by strict equivalence across the following critical parameters:

Primary Matching Criteria:

Connector Type: Header, Male Pins
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Number of Rows: 3
Style: C
Mounting Type: Through Hole, Right Angle
Termination: Solder
Material Flammability Rating: UL94 V-0
Moisture Sensitivity Level: 1 (Unlimited)

Secondary Considerations:

Contact Finish: Gold (primary specification)
RoHS Compliance Status
Product Status (Active preferred for new designs; Obsolete acceptable for legacy support)
Insulation Material composition

Substitute parts are grouped into two categories:

Category A - Direct Header Equivalents: Parts maintaining Header connector type with gold contact finish and identical mechanical specifications.

Category B - Plug Configuration Alternatives: Parts with Plug connector type instead of Header. These require mechanical interface verification but maintain electrical and positional compatibility through DIN 41612 standard compliance.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Connector Type	Positions	Pitch	Rows	Style	Mount Type	Contact Finish	Product Status	RoHS Status
5174111-2	TE Connectivity AMP	Header, Male Pins	96	0.100" (2.54mm)	3	C	Through Hole, RA	Gold	Obsolete	ROHS3 Compliant
2-1392009-6	TE Connectivity AMP	Header, Male Pins	96	0.100" (2.54mm)	3	C	Through Hole, RA	Gold-Palladium	Active	RoHS Compliant
0850030567	Molex	Header, Male Pins	96	0.100" (2.54mm)	3	C	Through Hole, RA	Gold	Obsolete	ROHS3 Compliant
09031966951	HARTING	Header, Male Pins	96 (94 + 2 Leading)	0.100" (2.54mm)	3	C	Through Hole, RA	Gold	Active	ROHS3 Compliant
09031967921	HARTING	Header, Male Pins	96	0.100" (2.54mm)	3	C	Through Hole, RA	Not Specified	Active	ROHS3 Compliant
09033966951	HARTING	Header, Male Pins	96 (94 + 2 Leading)	0.100" (2.54mm)	3	C	Through Hole, RA	Nickel-Phosphor	Active	ROHS3 Compliant
121A10149X	Amphenol CONEC	Header, Male Pins	96	0.100" (2.54mm)	3	C	Through Hole, RA	Gold	Obsolete	ROHS3 Compliant
86093967113745E1LF	Amphenol ICC (FCI)	Header, Male Pins	96	0.100" (2.54mm)	3	C	Through Hole, RA	Gold	Active	RoHS Compliant
86093967113785E1LF	Amphenol ICC (FCI)	Header, Male Pins	96	0.100" (2.54mm)	3	C	Through Hole, RA	Gold	Active	RoHS Compliant
DIN-096CPC-RR1-HM	3M	Plug, Male Pins	96	0.100" (2.54mm)	3	C	Through Hole, RA	Gold	Active	RoHS Compliant
DIN-096CPC-RR1L-HM	3M	Plug, Male Pins	96	0.100" (2.54mm)	3	C	Through Hole, RA	Gold	Active	RoHS Compliant

Engineering Selection Recommendations

For Direct Replacement (Header Configuration):

The TE Connectivity AMP Connectors 2-1392009-6 is the primary recommended substitute. It maintains identical mechanical and electrical specifications with the 5174111-2, including 96 positions, 0.100" pitch, 3-row configuration, and right-angle through-hole mounting. The 2-1392009-6 is Active status with RoHS compliance, providing superior supply chain availability compared to the obsolete 5174111-2. The contact finish differs (Gold-Palladium versus Gold), which is acceptable for equivalent electrical performance in standard backplane applications.

The Amphenol ICC (FCI) 86093967113745E1LF and 86093967113785E1LF are Active status alternatives with gold contact finish matching the original specification. Both parts maintain full mechanical and electrical compatibility with identical pitch, position count, and mounting configuration. These parts carry RoHS compliance certification.

The HARTING 09031966951 is an Active status header with gold contact finish and DIN 41612 series designation. This part is suitable for applications requiring active product support and long-term availability.

For Plug Configuration (Alternative Interface):

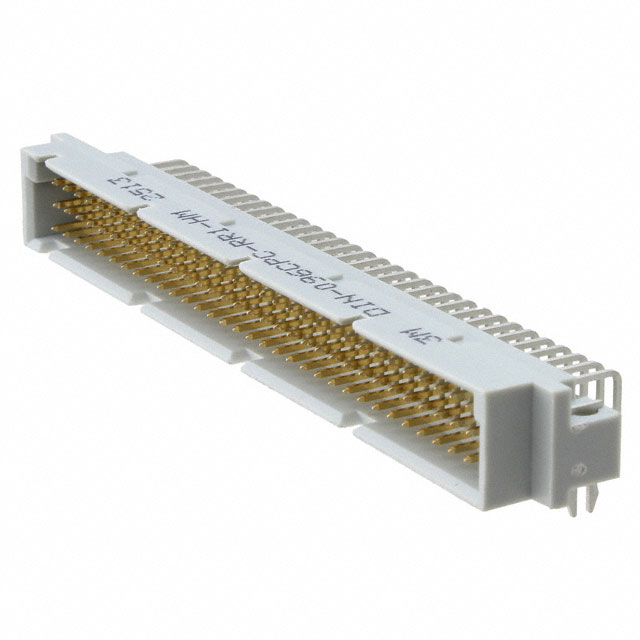

The 3M DIN-096CPC-RR1-HM and DIN-096CPC-RR1L-HM are Plug connectors (not Headers) with identical positional and pitch specifications. These parts are suitable only when the application design permits Plug-type connector interface instead of Header-type. Both are Active status with RoHS compliance and gold contact finish.

Compliance Considerations:

All recommended substitutes maintain UL94 V-0 flammability rating and Moisture Sensitivity Level 1 (Unlimited) specifications. RoHS compliance status varies between ROHS3 Compliant and RoHS Compliant designations; both are acceptable for current regulatory requirements. REACH status is either Unaffected or Affected; applications subject to REACH regulations should verify specific requirements with the selected substitute manufacturer.

Frequently Asked Questions (FAQ)

Q: Can the 5174111-2 be directly replaced with the 2-1392009-6?

A: Yes. The 2-1392009-6 is a direct mechanical and electrical equivalent. Both parts share identical connector type (Header, Male Pins), position count (96), pitch (0.100"), row configuration (3), mounting style (Through Hole, Right Angle), and termination method (Solder). The contact finish differs (Gold-Palladium versus Gold), which does not affect electrical performance in standard backplane applications. The 2-1392009-6 is Active status, providing superior availability.

Q: What is the difference between Header and Plug connector types in this product category?

A: Headers and Plugs are complementary connector types within DIN 41612 standard backplane systems. Headers are mounted on one PCB and accept mating Plugs from another PCB. The 5174111-2 is a Header type. The 3M DIN-096CPC-RR1-HM and DIN-096CPC-RR1L-HM are Plug types. These cannot be directly substituted without redesigning the mating connector interface. Substitution between Header and Plug types requires verification that the application design accommodates the alternative connector configuration.

Q: Are there differences in contact finish between substitute parts, and do these affect compatibility?

A: Yes, contact finish varies among substitutes. The 5174111-2 specifies Gold finish. Substitutes include Gold (2-1392009-6, 0850030567, 09031966951, 121A10149X, 86093967113745E1LF, 86093967113785E1LF, DIN-096CPC-RR1-HM, DIN-096CPC-RR1L-HM), Gold-Palladium (2-1392009-6), and Nickel-Phosphor (09033966951) finishes. All finishes provide equivalent electrical conductivity and corrosion resistance for standard backplane applications. Contact finish selection should be based on application-specific environmental requirements and existing connector inventory compatibility.

Q: What is the significance of "94 + 2 Leading Contacts" in the HARTING part specifications?

A: HARTING parts 09031966951 and 09033966951 specify 96 positions as "94 + 2 Leading Contacts." This indicates a DIN 41612 standard configuration where two additional leading contacts are provided for keying or alignment purposes. The total position count remains 96, maintaining mechanical and electrical compatibility with the 5174111-2. The leading contacts do not affect substitution suitability for standard 96-position applications.

Q: Which substitute parts are recommended for new designs versus legacy system support?

A: For new designs, select Active status parts: TE Connectivity 2-1392009-6, HARTING 09031966951, Amphenol ICC (FCI) 86093967113745E1LF or 86093967113785E1LF, or 3M DIN-096CPC-RR1-HM and DIN-096CPC-RR1L-HM. These parts offer long-term supply chain availability and manufacturer support. For legacy system maintenance and replacement of existing 5174111-2 installations, Obsolete status parts (Molex 0850030567, Amphenol CONEC 121A10149X) may be acceptable if inventory is available, but Active status alternatives are preferred to avoid future supply constraints.

Q: Are all substitute parts RoHS compliant?

A: All substitute parts listed carry either ROHS3 Compliant or RoHS Compliant designations. ROHS3 Compliant indicates compliance with the most current RoHS 3 directive. RoHS Compliant indicates compliance with earlier RoHS standards. Both designations satisfy current regulatory requirements. Applications subject to specific RoHS version requirements should verify the exact compliance level with the selected manufacturer.

Q: What packaging options are available for substitute parts?

A: Substitute parts are supplied in Bulk, Tray, or unspecified packaging configurations. The 2-1392009-6 is supplied in Bulk packaging. The Molex 0850030567, Amphenol CONEC 121A10149X, Amphenol ICC (FCI) 86093967113745E1LF, and 86093967113785E1LF are supplied in Tray packaging. HARTING parts and 3M parts are supplied in Bulk packaging. Packaging selection should be based on production volume requirements and inventory management procedures.

Q: Can the 09031967921 (HARTING) be used as a substitute despite not specifying contact finish?

A: The 09031967921 maintains all critical mechanical specifications (96 positions, 0.100" pitch, 3-row configuration, Through Hole Right Angle mounting) but does not specify contact finish in the provided data. This part is Active status and ROHS3 compliant. Use of this part requires verification of contact finish specification directly from HARTING to ensure compatibility with application requirements. Contact the manufacturer for complete technical specifications before selection.
