TE Connectivity 5-147381-4 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 5-147381-4 is a surface mount rectangular connector header from the AMPMODU 50/50 Grid series. This 40-position, dual-row connector operates at 0.050" (1.27mm) pitch and features shrouded 4-wall construction with push-pull fastening. The part is classified as Active product status and is RoHS Compliant with MSL 1 rating. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across alternative manufacturers and series offerings, enabling design flexibility and supply chain optimization.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	40
Number of Rows	2
Pitch - Mating	0.050" (1.27mm)
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Surface Mount
Shrouding	Shrouded - 4 Wall
Termination	Solder
Fastening Type	Push-Pull
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Material	Phosphor Bronze
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Material Flammability Rating	UL94 V-0
Operating Temperature Range	-65°C ~ 105°C
Current Rating per Contact	0.5A
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 5-147381-4 are qualified based on the following critical parameters that must remain constant or compatible:

Mandatory Matching Parameters:

Number of Positions: 40
Number of Rows: 2
Pitch - Mating: 0.050" (1.27mm)
Row Spacing - Mating: 0.050" (1.27mm)
Connector Type: Header
Contact Type: Male Pin
Mounting Type: Surface Mount
Shrouding: Shrouded - 4 Wall
Termination: Solder
Fastening Type: Push-Pull
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Material: Phosphor Bronze
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Material Flammability Rating: UL94 V-0

Allowable Variations:

Contact Length - Mating: 0.120" (3.05mm) to 0.131" (3.33mm)
Insulation Height: 0.220" (5.60mm) to 0.226" (5.74mm)
Contact Finish Thickness - Mating: 3.00µin to 30.0µin
Current Rating per Contact: 0.5A to 3.1A
Operating Temperature Range: -55°C ~ 125°C (extended from -65°C ~ 105°C)
Voltage Rating: Up to 275VAC
Packaging: Tape & Reel (TR), Tube, or Cut Tape (CT)
Features: Board Lock, Board Guide, Pick and Place combinations

Samtec Tiger Eye™ TFC and TFM series connectors meet these criteria and are classified as equivalent substitutes.

Parameter Comparison

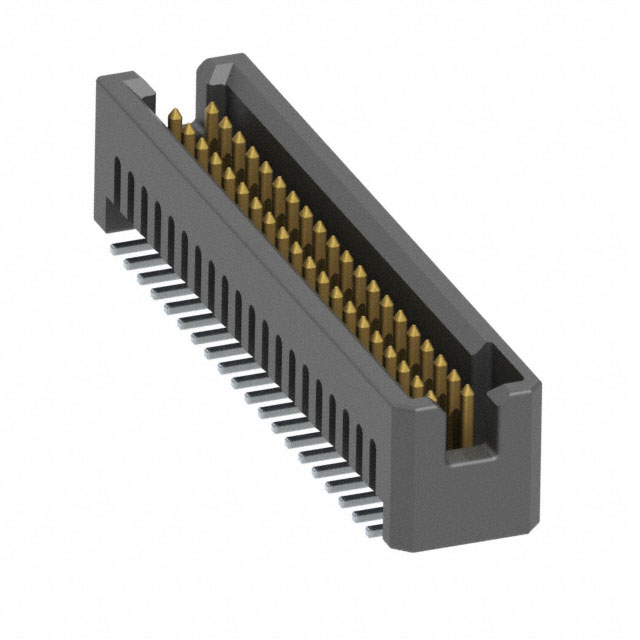

Parameter	TE Connectivity 5-147381-4	Samtec TFC-120-02-F-D-A-K-TR	Samtec TFC-120-02-L-D-A-K	Samtec TFC-120-02-L-D-A-K-TR	Samtec TFM-120-02-L-D	Samtec TFM-120-02-L-D-A	Samtec TFM-120-02-L-D-A-K	Samtec TFM-120-02-L-D-A-K-TR	Samtec TFM-120-02-L-D-A-P-TR	Samtec TFM-120-02-L-D-K-TR	Samtec TFM-120-02-L-D-LC
Manufacturer	TE Connectivity	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.
Series	AMPMODU 50/50 Grid	Tiger Eye™ TFC	Tiger Eye™ TFC	Tiger Eye™ TFC	Tiger Eye™ TFM	Tiger Eye™ TFM	Tiger Eye™ TFM	Tiger Eye™ TFM	Tiger Eye™ TFM	Tiger Eye™ TFM	Tiger Eye™ TFM
Number of Positions	40	40	40	40	40	40	40	40	40	40	40
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Pitch - Mating	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Row Spacing - Mating	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Length - Mating	0.120" (3.05mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)	0.131" (3.33mm)
Insulation Height	0.226" (5.74mm)	0.226" (5.74mm)	0.226" (5.74mm)	0.226" (5.74mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)	0.220" (5.60mm)
Contact Shape	Circular	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)	3.00µin (0.076µm)	10.0µin (0.25µm)	10.0µin (0.25µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Current Rating per Contact	0.5A	3.1A	3.1A	3.1A	2.9A	2.9A	2.9A	2.9A	2.9A	2.9A	2.9A
Voltage Rating	Not specified	275VAC	275VAC	275VAC	275VAC	275VAC	275VAC	275VAC	275VAC	275VAC	275VAC
Operating Temperature Range	-65°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Packaging	Tape & Reel (TR)	Cut Tape (CT)	Tube	Tape & Reel (TR)	Tube	Tube	Tube	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tube
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

All substitute parts listed are classified as Active product status, ensuring ongoing manufacturer support and availability. All substitute parts maintain RoHS3 compliance, which exceeds the RoHS Compliant status of the primary part. All parts carry MSL 1 (Unlimited) moisture sensitivity rating, indicating no special handling requirements during storage or assembly.

Samtec Tiger Eye™ TFC Series (TFC-120-02-F-D-A-K-TR, TFC-120-02-L-D-A-K, TFC-120-02-L-D-A-K-TR): These parts provide equivalent mechanical and electrical performance with enhanced current rating (3.1A per contact versus 0.5A) and voltage rating (275VAC). The TFC series offers board-to-board or cable compatibility. Packaging options include Cut Tape, Tube, and Tape & Reel formats.

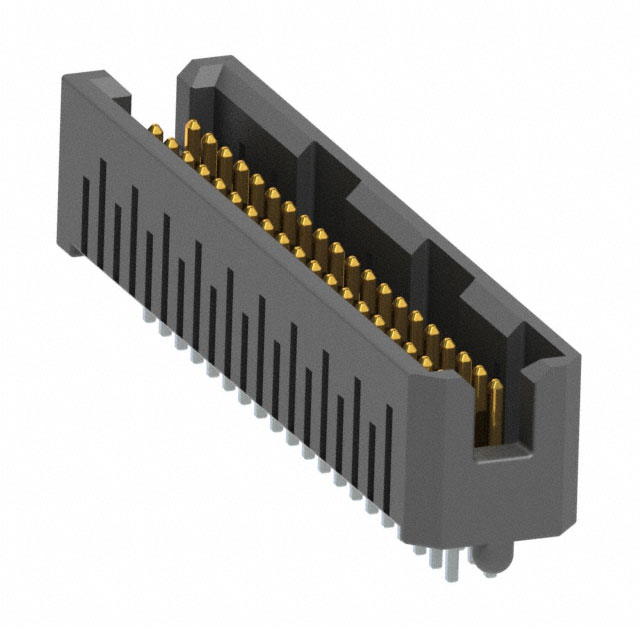

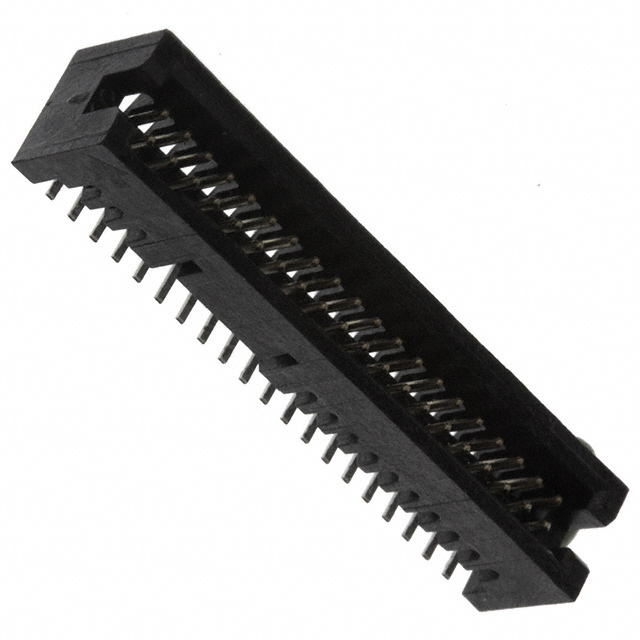

Samtec Tiger Eye™ TFM Series (TFM-120-02-L-D, TFM-120-02-L-D-A, TFM-120-02-L-D-A-K, TFM-120-02-L-D-A-K-TR, TFM-120-02-L-D-A-P-TR, TFM-120-02-L-D-K-TR, TFM-120-02-L-D-LC): These parts provide equivalent mechanical and electrical performance with current rating of 2.9A per contact and voltage rating of 275VAC. The TFM series offers board-to-board or cable compatibility. Insulation height is 0.220" (5.60mm) versus 0.226" (5.74mm) on the primary part. Feature variations include Board Lock, Board Guide, and Pick and Place options. Packaging options include Tube and Tape & Reel formats.

Contact Length Consideration: Samtec substitute parts feature contact length of 0.131" (3.33mm) compared to 0.120" (3.05mm) on the TE Connectivity part. This 0.011" (0.28mm) difference is within acceptable tolerance for board-to-board mating applications.

Operating Temperature Range: Samtec substitutes operate across -55°C ~ 125°C, providing extended upper temperature capability compared to the TE Connectivity part (-65°C ~ 105°C). The lower temperature limit is -55°C versus -65°C on the primary part.

Frequently Asked Questions (FAQ)

Q: Can Samtec Tiger Eye™ TFC and TFM series connectors directly replace the TE Connectivity 5-147381-4?

A: Yes, within the specified electrical and mechanical parameters. Both series maintain identical pitch (0.050"), position count (40), row configuration (2), shrouding (4-wall), termination (solder), and fastening (push-pull). Contact material, insulation material, and flammability rating are identical. Differences in contact length (0.011" longer on Samtec parts) and insulation height (0.006" shorter on TFM series) are within acceptable tolerances for board-to-board applications.

Q: What is the primary difference between Samtec TFC and TFM series?

A: The TFC series provides higher current rating (3.1A per contact) and maintains insulation height of 0.226" (5.74mm), matching the TE Connectivity part. The TFM series provides 2.9A per contact with insulation height of 0.220" (5.60mm). Both series support board-to-board or cable configurations. Feature options differ between series, with TFC offering Board Guide and TFM offering Board Lock or Board Guide combinations.

Q: Are there packaging format options for substitute parts?

A: Yes. Samtec TFC series is available in Cut Tape (CT), Tube, and Tape & Reel (TR) formats. Samtec TFM series is available in Tube and Tape & Reel (TR) formats. The primary TE Connectivity part is supplied in Tape & Reel format. Selection of packaging format depends on assembly process requirements and volume specifications.

Q: What is the significance of the contact finish thickness variation?

A: Contact finish thickness varies across substitute parts: TE Connectivity 5-147381-4 specifies 30.0µin (0.76µm), Samtec TFC-120-02-F-D-A-K-TR specifies 3.00µin (0.076µm), Samtec TFC-120-02-L-D-A-K and TFC-120-02-L-D-A-K-TR specify 10.0µin (0.25µm), and Samtec TFM series specifies 15.0µin (0.38µm). All values provide adequate gold plating for reliable mating contact performance. Thicker plating on the primary part provides extended contact life in high-cycle mating applications.

Q: Do substitute parts meet the same compliance standards?

A: Yes. All substitute parts are ROHS3 Compliant, which exceeds the RoHS Compliant status of the primary part. All parts carry UL94 V-0 flammability rating and MSL 1 moisture sensitivity level. ECCN classification is EAR99 for all parts, and HTSUS code is 8536.69.4040 for all parts.

Q: What is the impact of the extended operating temperature range on substitute parts?

A: Samtec substitute parts operate across -55°C ~ 125°C, compared to -65°C ~ 105°C on the TE Connectivity part. The upper temperature limit is extended by 20°C, providing capability for higher-temperature applications. The lower temperature limit is reduced by 10°C. Applications requiring operation below -55°C must use the TE Connectivity part or confirm compatibility with Samtec technical documentation.

Q: How do feature options (Board Lock, Board Guide, Pick and Place) affect substitution?

A: Feature options do not affect electrical or mechanical compatibility. Board Lock provides mechanical retention during assembly. Board Guide aids in connector alignment during mating. Pick and Place indicates suitability for automated assembly equipment. Selection of feature options depends on assembly process requirements and mechanical retention needs. The primary TE Connectivity part includes Board Lock and Pick and Place features.

Q: What inventory levels are available for substitute parts?

A: Samtec TFC-120-02-F-D-A-K-TR: 1185 pcs; Samtec TFC-120-02-L-D-A-K: 1135 pcs; Samtec TFC-120-02-L-D-A-K-TR: 1634 pcs; Samtec TFM-120-02-L-D: 923 pcs; Samtec TFM-120-02-L-D-A: 1096 pcs; Samtec TFM-120-02-L-D-A-K: 1085 pcs; Samtec TFM-120-02-L-D-A-K-TR: 1564 pcs; Samtec TFM-120-02-L-D-A-P-TR: 948 pcs; Samtec TFM-120-02-L-D-K-TR: 2129 pcs; Samtec TFM-120-02-L-D-LC: 1171 pcs. Primary part TE Connectivity 5-147381-4: 1026 pcs.

Q: Are substitute parts suitable for automotive, medical, and military applications?

A: The TE Connectivity 5-147381-4 is specified for Automotive, General Purpose, Medical, Military, and Telecommunications applications. Samtec substitute parts do not specify application categories in the provided data. Confirmation of suitability for specific automotive, medical, or military applications requires review of Samtec technical documentation and compliance certifications specific to the intended application.
