TE Connectivity 5-146858-1 Equivalent & Substitute Parts

Part Overview

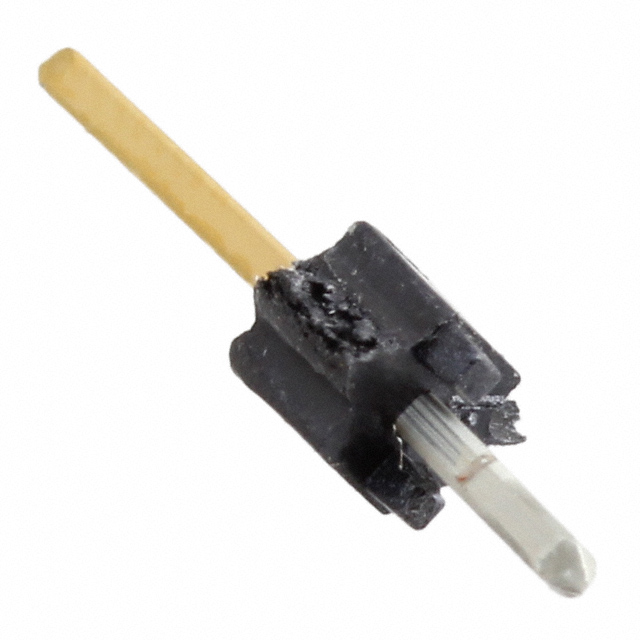

The TE Connectivity 5-146858-1 is a rectangular connector header manufactured under the AMPMODU series. This through-hole, cuttable position connector features a 0.100" (2.54mm) pitch and is designed for board-to-board or cable applications with male pin contacts. The part is currently active in production with 10,758 units in stock.

Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct functional replacement in applications where the connector pitch, contact type, mounting method, and current rating remain constant.

Key Parameters

Parameter	Value
Manufacturer Part Number	5-146858-1
Manufacturer	TE Connectivity AMP Connectors
Category	Rectangular Connectors
Series	AMPMODU
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	Cuttable
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Shape	Square
Insulation Material	Thermoplastic
Operating Temperature	-65°C ~ 105°C
Current Rating	3A
Material Flammability Rating	UL94 V-0
Product Status	Active
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 5-146858-1 are identified based on the following critical parameters that must align for functional equivalence:

Primary Matching Criteria:

Pitch - Mating: 0.100" (2.54mm)
Contact Type: Male Pin
Number of Rows: 1
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Shape: Square
Current Rating: 3A
Material Flammability Rating: UL94 V-0
Insulation Height: 0.100" (2.54mm)

Secondary Considerations:

Contact Length - Mating: 0.230" (5.84mm)
Insulation Material composition
Operating Temperature range
Product Status (Active preferred)
RoHS and REACH compliance status

The substitute parts listed are from the Amphenol ICC (FCI) BERGSTIK® II series, which maintains compatibility across the primary electrical and mechanical parameters. Variations in contact post length, contact finish specifications, and insulation material (Liquid Crystal Polymer vs. Thermoplastic) do not prevent functional substitution when the mating interface and current-carrying capacity remain constant.

Parameter Comparison

Parameter	5-146858-1	68000-100HLF	68000-200HLF	68000-400HLF	68001-100HLF	68001-200HLF	68001-400HLF	68002-400HLF
Manufacturer	TE Connectivity	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)
Series	AMPMODU	BERGSTIK® II	BERGSTIK® II	BERGSTIK® II	BERGSTIK® II	BERGSTIK® II	BERGSTIK® II	BERGSTIK® II
Connector Type	Header, Breakaway	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	1	1	1	1	1	1	1	1
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square
Contact Length - Mating	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)
Insulation Height	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Current Rating	3A	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-65°C ~ 105°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 130°C
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
RoHS Status	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant
REACH Status	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Affected	REACH Affected	REACH Affected	REACH Affected	REACH Affected
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

Primary Substitutes (Active Status, Full Compliance):

The following parts are recommended as direct substitutes based on active product status and compliance certifications:

68000-100HLF: Active status, RoHS compliant, REACH unaffected. Operating temperature extends to 125°C. Suitable for applications requiring extended thermal performance.
68000-200HLF: Active status, ROHS3 compliant, REACH unaffected. Maintains identical mating contact length and insulation specifications. Recommended for new designs requiring ROHS3 certification.
68001-200HLF: Active status, RoHS compliant. Contact post length of 0.120" (3.05mm) provides increased board penetration depth compared to the main part. Suitable for applications with thicker PCB assemblies.
68001-400HLF: Active status, RoHS compliant. Tin finish on mating contact with extended post length. Operating temperature to 125°C.
68002-400HLF: Active status, RoHS compliant. Extended operating temperature to 130°C with 0.150" (3.81mm) contact post length. Suitable for high-temperature applications.

Secondary Substitutes (Active Status, REACH Affected):

68000-400HLF: Active status, RoHS compliant. REACH affected status requires compliance verification for regulated substance applications.
68001-100HLF: Active status, RoHS compliant. REACH affected status requires compliance verification.

Not Recommended:

68001-200H: Obsolete product status. RoHS non-compliant. Not suitable for new designs or long-term supply continuity.

Frequently Asked Questions (FAQ)

Q: What are the critical parameters that determine if a part can substitute for the TE Connectivity 5-146858-1?

A: The following parameters must match for functional substitution: 0.100" (2.54mm) pitch, male pin contact type, single row configuration, through-hole mounting, solder termination, push-pull fastening, square contact shape, 3A current rating, and UL94 V-0 flammability rating. All listed substitute parts meet these criteria.

Q: Can I use a substitute part with a different contact post length?

A: Yes. Contact post length variations (0.095", 0.110", 0.120", or 0.150") do not affect mating interface compatibility. Post length selection depends on PCB thickness and assembly requirements. Longer posts provide greater board penetration; shorter posts suit thinner assemblies.

Q: What is the difference between the AMPMODU and BERGSTIK® II series?

A: Both series are rectangular connector headers with identical mating pitch and contact specifications. The primary differences are in insulation material (Thermoplastic vs. Liquid Crystal Polymer) and contact material (Copper Alloy vs. Phosphor Bronze). These material differences do not prevent functional substitution.

Q: Are all substitute parts RoHS compliant?

A: All listed active substitute parts are RoHS compliant. The main part is ROHS3 compliant. For new designs, 68000-200HLF is specifically ROHS3 compliant. Parts with REACH affected status (68000-400HLF, 68001-100HLF, 68001-200HLF, 68001-400HLF, 68002-400HLF) require compliance verification for applications subject to REACH regulations.

Q: What is the difference between parts with gold and tin contact finishes?

A: Contact finish affects corrosion resistance and contact resistance characteristics. Gold-finished contacts (68000-100HLF, 68000-200HLF, 68001-100HLF, 68001-200HLF) provide superior corrosion resistance. Tin-finished contacts (68000-400HLF, 68001-400HLF, 68002-400HLF) are cost-effective for standard applications. Both finishes support the 3A current rating.

Q: Can I use a substitute part with a higher operating temperature rating?

A: Yes. The main part operates to 105°C. All substitute parts operate to 125°C or 130°C, providing thermal margin for applications approaching the main part's temperature limit. Higher temperature ratings do not create compatibility issues.

Q: What packaging options are available?

A: The main part is supplied in Cut Tape (CT) packaging. All active substitute parts are also available in Cut Tape (CT) packaging, ensuring consistent handling and assembly compatibility.

Q: Is the 68001-200H part suitable for new designs?

A: No. The 68001-200H is obsolete and RoHS non-compliant. Use 68001-200HLF instead, which is active, RoHS compliant, and maintains identical electrical and mechanical specifications.

Q: How do I select between multiple substitute options?

A: Selection depends on application requirements: (1) For ROHS3 compliance, use 68000-200HLF. (2) For extended temperature operation, use 68002-400HLF (to 130°C). (3) For thicker PCB assemblies, use parts with longer contact posts (68001-200HLF, 68001-400HLF, 68002-400HLF). (4) For corrosion-resistant applications, select gold-finished contacts. (5) For cost-optimized designs, select tin-finished contacts. All selections maintain functional equivalence with the main part.
