TE Connectivity 5-146293-3 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 5-146293-3 is a rectangular connector header designed for through-hole mounting applications. This connector features a vertical 3-position configuration with 0.100" (2.54mm) pitch spacing, suitable for board-to-board or cable interconnections. The part is classified as obsolete, necessitating identification of active equivalent and substitute components for ongoing design and procurement requirements. Substitute parts must maintain electrical and mechanical compatibility while meeting current manufacturing and compliance standards.

Key Parameters

Parameter	Value
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Mounting Type	Through Hole
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.090" (2.29mm)
Operating Temperature Range	-65°C ~ 105°C
Current Rating	3A
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution of the 5-146293-3 is determined by strict adherence to the following critical parameters:

Primary Compatibility Criteria:

Connector type: Header, Breakaway
Contact type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of positions: 3
Number of rows: 1
Mounting type: Through Hole
Contact length - Mating: 0.230" (5.84mm)
Fastening type: Push-Pull
Current rating: 3A
Material flammability rating: UL94 V-0
RoHS compliance: ROHS3 Compliant

Secondary Variation Parameters (Allow Substitution):

Contact length - Post: Varies by application requirement
Insulation height: 0.090" (2.29mm) or 0.100" (2.54mm)
Contact finish - Mating: Gold or Tin
Contact material: Copper Alloy or Phosphor Bronze
Insulation material: Liquid Crystal Polymer (LCP) or Polybutylene Terephthalate (PBT)
Operating temperature range: -65°C ~ 105°C or -65°C ~ 125°C
Termination: Press-Fit/Solder or Solder only

Substitute parts are grouped by contact length - post dimension, as this parameter directly affects board penetration depth and application suitability while maintaining all primary electrical and mechanical compatibility criteria.

Parameter Comparison

Parameter	5-146293-3 (Main)	5-146281-3	PBC03SAAN	PBC03SABN	PBC03SACN	PBC03SADN	PBC03SAEN	PBC03SAFN	PBC03SAGN	PBC03SAHN	PEC03SAAN
Manufacturer	TE Connectivity	TE Connectivity	Sullins	Sullins	Sullins	Sullins	Sullins	Sullins	Sullins	Sullins	Sullins
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	3	3	3	3	3	3	3	3	3	3	3
Number of Rows	1	1	1	1	1	1	1	1	1	1	1
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Press-Fit, Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Contact Length - Mating	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.230" (5.84mm)	0.320" (8.13mm)	0.420" (10.67mm)	0.520" (13.21mm)	0.620" (15.75mm)	0.720" (18.29mm)	0.820" (20.83mm)	0.120" (3.05mm)
Insulation Height	0.090" (2.29mm)	0.090" (2.29mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Tin
Contact Material	Copper Alloy	Copper Alloy	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Operating Temperature Range	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C
Current Rating	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	Not Applicable	Not Applicable	Not Applicable	Not Applicable	Not Applicable	Not Applicable	Not Applicable	Not Applicable	Not Applicable

Engineering Selection Recommendations

Primary Recommendation: TE Connectivity 5-146281-3

The 5-146281-3 is the direct active equivalent from the original manufacturer TE Connectivity. This part maintains identical electrical and mechanical specifications to the obsolete 5-146293-3, with the exception of termination method (solder-only versus press-fit/solder). The 5-146281-3 carries active product status and full ROHS3 compliance, making it the preferred choice for direct replacement in existing designs. Current inventory availability is 3700 pieces.

Secondary Recommendation: Sullins Connector Solutions PBC03SAAN

The PBC03SAAN provides functional equivalence with the following considerations: it maintains the same 3-position, 0.100" pitch configuration and 3A current rating. The contact length - post dimension (0.120") matches the main part exactly. The primary differences are insulation material (PBT versus LCP), contact material (Phosphor Bronze versus Copper Alloy), and extended operating temperature range (-65°C ~ 125°C). This part is active with 20545 pieces in inventory and carries ROHS3 compliance.

Alternative Selections by Contact Length - Post Requirement:

For applications requiring extended board penetration, Sullins PBC03 series parts offer graduated post lengths:

PBC03SABN: 0.230" post length (4978 pieces available)
PBC03SACN: 0.320" post length (980 pieces available)
PBC03SADN: 0.420" post length (1515 pieces available)
PBC03SAEN: 0.520" post length (1087 pieces available)
PBC03SAFN: 0.620" post length (850 pieces available)
PBC03SAGN: 0.720" post length (904 pieces available)
PBC03SAHN: 0.820" post length (1110 pieces available)

All Sullins alternatives maintain active product status, ROHS3 compliance, and 3A current rating. Selection among these variants depends on specific board thickness and application requirements.

Contact Finish Consideration:

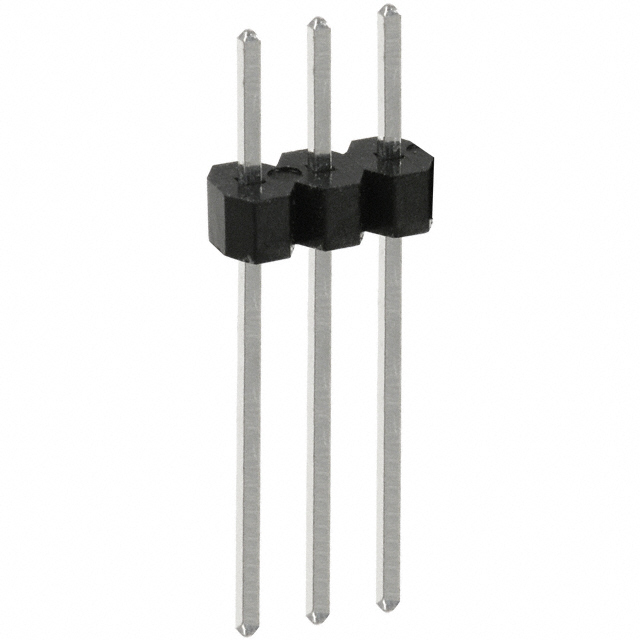

The PEC03SAAN variant from Sullins provides tin-plated mating contacts (100.0µin thickness) instead of gold plating, with identical post length (0.120") to the main part. This option is suitable for cost-sensitive applications where gold plating is not required. Inventory availability is 11715 pieces.

Frequently Asked Questions (FAQ)

Q: Can the obsolete 5-146293-3 be directly replaced with the 5-146281-3?

A: Yes. The 5-146281-3 maintains identical pitch (0.100"), position count (3), contact length - mating (0.230"), contact length - post (0.120"), and current rating (3A). The primary difference is termination method: the 5-146281-3 is solder-only, while the original part supported both press-fit and solder termination. For solder-based applications, direct substitution is valid.

Q: What is the difference between TE Connectivity and Sullins connector options?

A: TE Connectivity 5-146281-3 uses Copper Alloy contacts with Liquid Crystal Polymer (LCP) insulation. Sullins PBC03 series uses Phosphor Bronze contacts with Polybutylene Terephthalate (PBT) insulation. Both meet UL94 V-0 flammability requirements and ROHS3 compliance. Sullins parts offer extended operating temperature range (-65°C ~ 125°C versus -65°C ~ 105°C) and higher inventory availability.

Q: How do I select the correct Sullins PBC03 variant?

A: Selection is determined by required contact length - post dimension, which affects how far the connector pins penetrate the printed circuit board. The PBC03SAAN matches the original 0.120" post length. Longer post lengths (PBC03SABN through PBC03SAHN) accommodate thicker boards or applications requiring deeper penetration. Verify your board thickness and connector mounting depth requirements before selection.

Q: Are all substitute parts RoHS compliant?

A: Yes. All listed substitute parts carry ROHS3 compliance certification, meeting current environmental and hazardous substance restrictions.

Q: What is the difference between gold-plated and tin-plated mating contacts?

A: Gold-plated contacts (30.0µin or 10.0µin thickness) provide superior corrosion resistance and lower contact resistance. Tin-plated contacts (100.0µin thickness on mating surface) are suitable for general-purpose applications where cost optimization is prioritized. The PEC03SAAN provides tin-plated mating contacts while maintaining all other electrical specifications.

Q: Can I use a substitute part with a longer contact post length in my existing design?

A: Longer post lengths increase board penetration depth. Verify that your printed circuit board thickness and component layout accommodate the extended post length. Consult your board design specifications and mechanical assembly requirements before selecting variants with post lengths exceeding 0.120".

Q: What is the inventory status of these parts?

A: The 5-146281-3 has 3700 pieces in stock. Sullins alternatives range from 850 to 20545 pieces depending on variant. The PBC03SAAN offers the highest inventory availability at 20545 pieces, providing supply chain security for high-volume applications.

Q: Are there any termination method differences I should consider?

A: The original 5-146293-3 supported both press-fit and solder termination. All substitute parts listed support solder termination only. If your application requires press-fit termination capability, consult with the connector manufacturer for alternative options.
