TE Connectivity AMP Connectors 5-1241170-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 5-1241170-5 is a 5 Position Rectangular Receptacle Connector with IDC (Insulation Displacement Contact) termination and tin contact finish. This connector belongs to the Mark II series and features a single row configuration with 0.197" (5.00mm) pitch spacing, dual wire exit capability, and latch lock fastening. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure ongoing component availability for production and field service applications.

Substiute Parts

5-1241170-5

TE Connectivity AMP ConnectorsIn Stock: 7545-1241170-5 Datasheet

Current PartRFQ

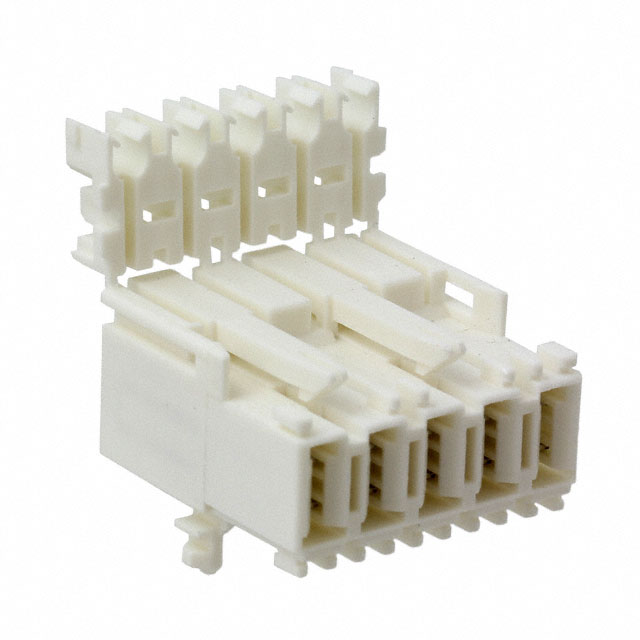

5-1534072-5

TE Connectivity AMP ConnectorsIn Stock: 10475-1534072-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 5-1241170-5 is determined by electrical and mechanical compatibility across the following critical parameters:

Electrical Compatibility Criteria:

• Connector type (Receptacle)
• Number of positions (5)
• Contact type (Blade Pin)
• Contact finish (Tin)
• Cable termination method (IDC)

Mechanical Compatibility Criteria:

• Pitch spacing (0.197" / 5.00mm)
• Number of rows (1)
• Fastening type (Latch Lock)
• Mounting type (Free Hanging / In-Line)
• Features (Dual Wire Exit)

The substitute part 5-1534072-5 maintains identical electrical and mechanical specifications across all parameters listed above. The primary distinction between the main part and its substitute is product status: the main part is obsolete while the substitute is active, and packaging differs (main part status unspecified versus bulk packaging for substitute).

Parameter Comparison

Engineering Selection Recommendations

The 5-1534072-5 is a direct functional equivalent to the 5-1241170-5 across all electrical and mechanical parameters. Selection of the substitute part is supported by the following factors:

Product Status: The main part 5-1241170-5 is classified as obsolete, while the substitute 5-1534072-5 maintains active product status. Active status ensures ongoing manufacturer support, availability, and compliance with current standards.

Regulatory Compliance: Both parts maintain equivalent compliance postures. The main part carries RoHS Compliant certification, while the substitute carries ROHS3 Compliant certification, representing an advancement in regulatory alignment. Both parts are classified under ECCN EAR99 and HTSUS 8536.69.8000, ensuring consistent export and tariff treatment.

Moisture Sensitivity: Both parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity constraints during storage or handling.

Inventory Availability: The substitute part 5-1534072-5 maintains higher inventory levels (1016 Pcs) compared to the main part (743 Pcs), supporting sustained supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Can the 5-1534072-5 be used as a direct replacement for the 5-1241170-5 in existing designs?

A: Yes. The 5-1534072-5 maintains identical electrical and mechanical specifications across all critical parameters including connector type, position count, pitch spacing, contact type, termination method, and fastening configuration. No design modifications are required for substitution.

Q: What is the primary reason for substituting the 5-1241170-5?

A: The 5-1241170-5 is classified as obsolete. The 5-1534072-5 is an active equivalent that ensures continued component availability and manufacturer support.

Q: Are there any differences in compliance or certification between these parts?

A: Both parts maintain equivalent compliance. The main part carries RoHS Compliant certification while the substitute carries ROHS3 Compliant certification. Both are classified identically under ECCN EAR99 and HTSUS 8536.69.8000. Moisture sensitivity levels are identical at MSL 1 (Unlimited).

Q: Does packaging differ between the main part and substitute?

A: Yes. The substitute part 5-1534072-5 is supplied in bulk packaging, while the main part packaging specification is not provided in the technical data.

Q: Are both parts from the same manufacturer?

A: Yes. Both the 5-1241170-5 and 5-1534072-5 are manufactured by TE Connectivity AMP Connectors and belong to the Mark II series.

Q: What are the key electrical parameters that confirm substitution compatibility?

A: Substitution is confirmed by matching connector type (Receptacle), position count (5), contact type (Blade Pin), contact finish (Tin), and cable termination method (IDC).

Q: What are the key mechanical parameters that confirm substitution compatibility?

A: Substitution is confirmed by matching pitch spacing (0.197" / 5.00mm), row configuration (1 row), fastening type (Latch Lock), mounting type (Free Hanging / In-Line), and dual wire exit feature.
