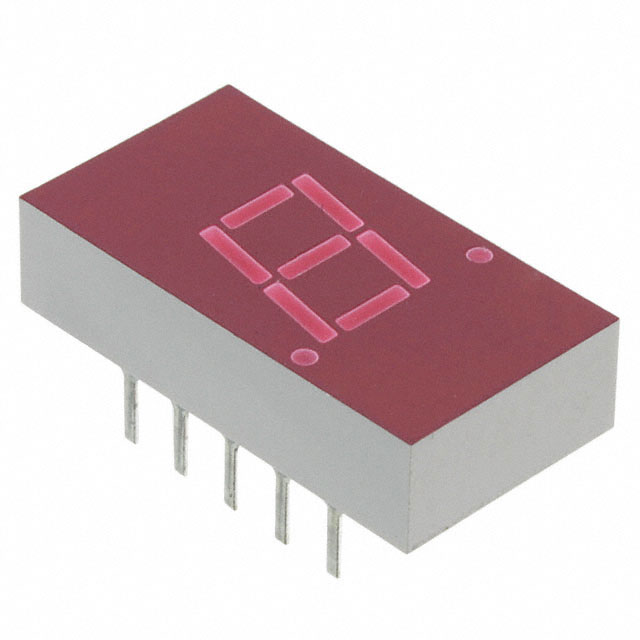

Broadcom Limited 5082-7613 Red 7-Segment LED Display

Part Overview

The Broadcom Limited 5082-7613 is a single-character red 7-segment LED display module in a 14-DIP package configuration. This component is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing design support and production continuity. The display operates at 2.1V forward voltage with a 20mA test current and features a 0.30-inch character height suitable for compact numeric display applications.

Substiute Parts

5082-7613

Broadcom LimitedIn Stock: 20865082-7613 Datasheet

Current PartRFQ

5082-7653-DE000

Broadcom LimitedIn Stock: 12405082-7653-DE000 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 5082-7613 is determined by strict alignment of the following critical parameters:

Display Configuration: 7-segment, single-character format with common cathode pin topology Electrical Specifications: Forward voltage of 2.1V and test current of 20mA Package Type: 14-DIP (0.300", 7.62mm) with 10 leads Color and Wavelength: Red emission at 635nm peak wavelength Compliance and Regulatory Status: ROHS3 compliance, REACH unaffected status, and MSL rating of 1

The substitute part 5082-7653-DE000 maintains electrical and package compatibility while introducing a larger character height (0.43" versus 0.30") and increased brightness (1.12mcd versus 0.8mcd). These dimensional and optical differences represent the primary distinctions between the main part and its substitute.

Parameter Comparison

Engineering Selection Recommendations

Both the 5082-7613 and 5082-7653-DE000 maintain identical electrical operating parameters, package footprint compatibility, and regulatory compliance status. Selection between these parts depends on application-specific requirements regarding display visibility and physical envelope constraints.

The 5082-7613 is suitable for applications requiring a compact 0.30-inch character height with standard brightness output. The 5082-7653-DE000 provides increased character visibility through a 0.43-inch height and 40% higher brightness (1.12mcd versus 0.8mcd) while maintaining the same 14-DIP package pinout and electrical specifications.

Both parts are ROHS3 compliant with unlimited moisture sensitivity rating and REACH unaffected status, ensuring regulatory alignment for current manufacturing standards.

Frequently Asked Questions (FAQ)

Q: Can the 5082-7653-DE000 be used as a direct replacement for the 5082-7613?

A: Electrical and package compatibility is maintained. The substitute features identical forward voltage (2.1V), test current (20mA), power dissipation (105mW), and 14-DIP package configuration. Physical dimensions differ: the substitute is larger (0.500" W x 0.250" D versus 0.400" W x 0.180" D) with a 0.43-inch character height compared to 0.30-inch. PCB layout and enclosure space must accommodate these dimensional changes.

Q: What are the key differences between these parts?

A: Character height increases from 0.30" to 0.43", and brightness increases from 0.8mcd to 1.12mcd. All electrical parameters, package type, and regulatory certifications remain identical.

Q: Are both parts ROHS3 compliant?

A: Yes. Both the 5082-7613 and 5082-7653-DE000 are ROHS3 compliant with MSL rating of 1 (unlimited) and REACH unaffected status.

Q: What is the impact of increased brightness on circuit design?

A: No circuit redesign is required. Both parts operate at identical electrical specifications (2.1V forward voltage, 20mA test current, 105mW maximum power dissipation). The brightness increase is inherent to the larger LED die in the substitute part.

Q: Are there any package or pinout differences?

A: No. Both parts use the 14-DIP (0.300", 7.62mm) package with 10 leads and common cathode configuration. Pinout is identical.
