Red Lion Controls 5000600 Rotary Encoder Optical 600PPR - Equivalent & Substitute Parts

Part Overview

The Red Lion Controls 5000600 is an optical rotary encoder with 600 pulses per revolution (PPR), designed for precision rotational measurement and position feedback applications. This component operates across a 5V to 28V supply voltage range and features pulse output with right-angle orientation and cable lead termination for chassis mount installations.

The 5000600 carries an obsolete product status. Identifying functionally equivalent substitute components ensures design continuity and maintains system performance in applications requiring optical encoding at 600 PPR specifications.

Substiute Parts

5000600

Red Lion ControlsIn Stock: 7065000600 Datasheet

Current PartRFQ

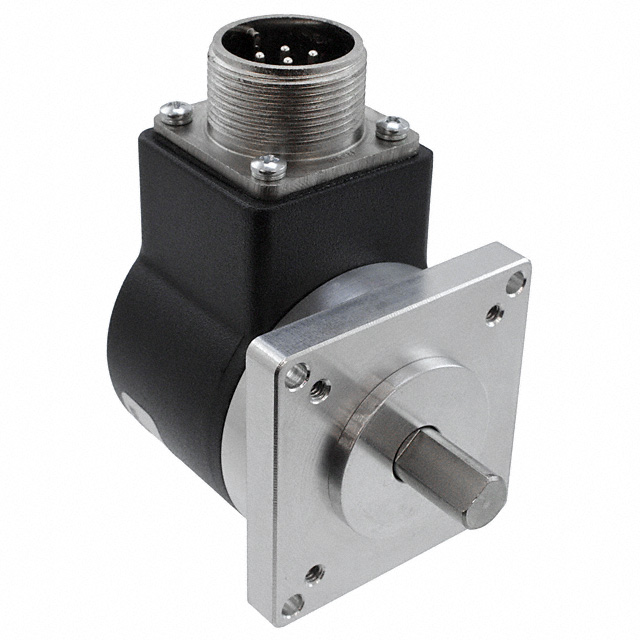

ZDH0600H

Red Lion ControlsIn Stock: 1156ZDH0600H Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute identification for the 5000600 is based on the following critical parameters that define functional equivalence:

Core Substitution Criteria:

• Encoder Type: Optical (maintains sensing technology)
• Pulses per Revolution: 600 PPR (preserves resolution)
• Voltage Supply Range: Compatibility within or overlapping the 5V to 28V specification
• Mounting Type: Chassis Mount (maintains installation compatibility)
• Rotational Life: Minimum 100M cycles (sustains durability requirements)
• Compliance: ROHS3 and REACH status alignment

The substitute part ZDH0600H meets these core criteria while offering an active product status, ensuring long-term availability and support.

Parameter Comparison

Engineering Selection Recommendations

Product Status Consideration: The 5000600 is classified as obsolete, creating supply chain risk for new designs and ongoing production. The ZDH0600H maintains active product status with Red Lion Controls, ensuring continued availability, technical support, and manufacturing consistency.

Compliance Alignment: Both components maintain ROHS3 compliance and REACH unaffected status, satisfying regulatory requirements for electronics manufacturing and distribution in regulated markets.

Voltage Supply Compatibility: The ZDH0600H supply range (4.75V ~ 28V) encompasses the 5000600 specification (5V ~ 28V), providing equivalent or superior voltage tolerance across the operational envelope.

Output Type Consideration: The 5000600 provides pulse output, while the ZDH0600H delivers quadrature (incremental) output. Quadrature output provides directional information and is compatible with systems designed for incremental encoder feedback. System integration must verify controller compatibility with quadrature signal processing.

Termination and Actuator Differences: The 5000600 uses cable leads with a generic shaft actuator; the ZDH0600H employs connector termination with a 3/8" diameter flatted end actuator. Mechanical integration and wiring methodology require design review to accommodate these interface differences.

Frequently Asked Questions (FAQ)

Q: Can the ZDH0600H directly replace the 5000600 in existing installations?

A: Direct mechanical and electrical replacement requires verification of three factors: (1) connector compatibility with system wiring harnesses, (2) controller support for quadrature output signal processing, and (3) mechanical fit of the 3/8" flatted end actuator within the existing shaft coupling or mounting interface. The 5000600 cable lead termination differs from the ZDH0600H connector approach.

Q: What is the significance of the output type difference between pulse and quadrature?

A: Pulse output provides count information only. Quadrature (incremental) output provides both count and directional information through two phase-shifted signals. Systems designed for pulse-only input require controller firmware or hardware modification to process quadrature signals. Conversely, quadrature-capable systems can operate with quadrature encoders for enhanced functionality.

Q: Are there supply voltage compatibility concerns?

A: The ZDH0600H operates at 4.75V minimum, compared to the 5000600 at 5V minimum. This 0.25V difference is negligible in regulated power supply applications. The upper limit of 28V is identical, ensuring full compatibility across the standard industrial voltage range.

Q: What packaging differences exist between these parts?

A: The 5000600 is supplied in bulk packaging, while the ZDH0600H is supplied in box packaging. This affects inventory management, handling procedures, and component traceability but does not impact functional performance.

Q: Why is product status important for component selection?

A: Obsolete components face declining manufacturing support, potential supply discontinuation, and reduced technical documentation availability. Active product status ensures ongoing production, manufacturer support, and long-term design reliability for new applications and production continuity.

Q: Are both components suitable for high-cycle applications?

A: The 5000600 specifies 100M cycle minimum rotational life. The ZDH0600H does not provide rotational life specification in available documentation. Applications requiring documented durability assurance should reference manufacturer technical specifications for the ZDH0600H or contact Red Lion Controls for rotational life data.
