4PCV-10-006 Equivalent & Substitute Parts

Part Overview

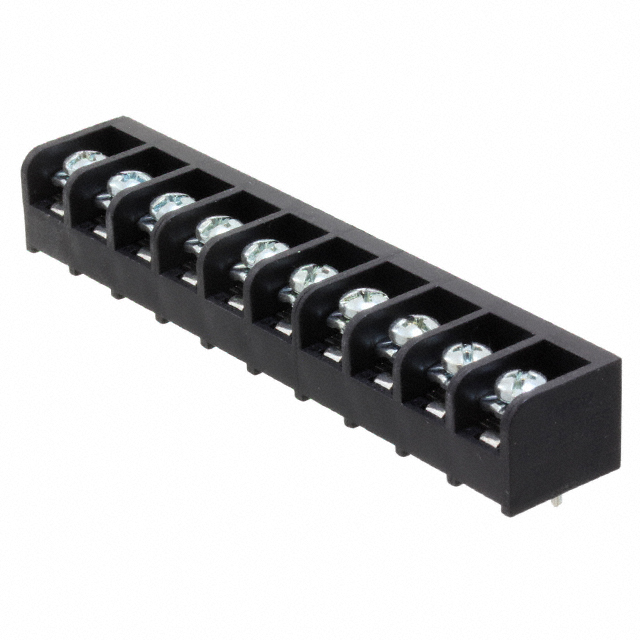

The 4PCV-10-006 is a 10-circuit barrier block connector manufactured by TE Connectivity AMP Connectors. This terminal block features a 0.325" (8.26mm) pitch with screw termination on the top and PC pin termination on the bottom. The connector is rated for 20A at 150V and accommodates wire gauges from 14-22 AWG. The product is currently active with 861 pieces in stock. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when design requirements permit equivalent specifications.

Substiute Parts

4PCV-10-006

TE Connectivity AMP ConnectorsIn Stock: 9174PCV-10-006 Datasheet

Current PartRFQ

OSTYK33110030

On-Shore TechnologyIn Stock: 1374OSTYK33110030 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 4PCV-10-006 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Terminal Block Type: Barrier Block
• Number of Circuits: 10
• Pitch: 0.325" (8.26mm)
• Number of Rows: 1
• Top Termination: Screws with Captive Plate
• Bottom Termination: PC Pin
• Barrier Type: 3 Wall (Tri)
• Mounting Type: Through Hole
• Material Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant

Allowable Parameter Variations: Substitute parts may exceed the main part specifications in the following parameters without compromising compatibility:

• Voltage Rating: Substitute may be rated higher than 150V
• Wire Gauge Range: Substitute may accommodate a wider range than 14-22 AWG
• Current Rating: Substitute may be rated equal to or higher than 20A
• Operating Temperature Range: Substitute may provide extended temperature range
• Terminal Screw Finish: May differ (Zinc vs. Nickel)
• Insulation Material Specification: May vary within polyamide/nylon family

The OSTYK33110030 from On-Shore Technology meets all mandatory matching parameters and provides enhanced specifications in voltage rating, wire gauge accommodation, and operating temperature range.

Parameter Comparison

Engineering Selection Recommendations

4PCV-10-006 (Primary Part): The 4PCV-10-006 remains the primary selection when TE Connectivity sourcing is required or when the 150V rating is specified in design documentation. This part is active and maintains full inventory availability. ROHS3 compliance and UL94 V-0 flammability rating are confirmed.

OSTYK33110030 (Substitute Part): The OSTYK33110030 is a direct functional substitute when TE Connectivity supply is constrained. This part provides enhanced electrical specifications with 300V voltage rating and extended wire gauge accommodation (12-22 AWG). The operating temperature range extends to -40°C, providing broader environmental capability. Both parts maintain identical mechanical form factor, circuit count, pitch, and termination style. ROHS3 compliance and UL94 V-0 flammability rating are confirmed for the substitute. The nickel-plated screw finish on the substitute provides alternative corrosion resistance characteristics compared to the zinc finish on the primary part.

Selection between these parts is determined by supply availability, voltage requirement specification, and environmental operating conditions. Both parts are active products with confirmed compliance certifications.

Frequently Asked Questions (FAQ)

Q: Can the OSTYK33110030 be used as a direct replacement for the 4PCV-10-006?

A: Yes. Both parts share identical mechanical dimensions, circuit count, pitch, termination style, and barrier configuration. The OSTYK33110030 provides equal or enhanced electrical ratings and maintains the same compliance certifications. Physical interchangeability is confirmed.

Q: What is the difference in voltage rating between these parts?

A: The 4PCV-10-006 is rated for 150V, while the OSTYK33110030 is rated for 300V. The OSTYK33110030 accommodates higher voltage applications. If the design specifies 150V operation, either part is acceptable. If higher voltage capability is required, the OSTYK33110030 is necessary.

Q: Are there wire gauge differences?

A: The 4PCV-10-006 accommodates 14-22 AWG wire. The OSTYK33110030 accommodates 12-22 AWG wire, providing compatibility with larger diameter conductors. Both parts accept the full range of the other's specification.

Q: Do these parts have different operating temperature ranges?

A: The 4PCV-10-006 operates to 105°C maximum. The OSTYK33110030 operates from -40°C to 105°C, providing extended low-temperature capability. For applications requiring operation below 0°C, the OSTYK33110030 is required.

Q: Are both parts RoHS compliant?

A: Yes. Both the 4PCV-10-006 and OSTYK33110030 are ROHS3 compliant and carry UL94 V-0 flammability ratings.

Q: What is the difference in screw finish?

A: The 4PCV-10-006 features zinc-plated steel screws. The OSTYK33110030 features nickel-plated steel screws. Nickel plating provides different corrosion resistance characteristics. Selection depends on environmental exposure requirements.

Q: Are both parts available in bulk packaging?

A: Yes. Both parts are supplied in bulk packaging. The 4PCV-10-006 has 861 pieces in stock. The OSTYK33110030 has 1272 pieces in stock.

Q: What is the pitch specification for these connectors?

A: Both parts feature 0.325" (8.26mm) pitch, which determines the center-to-center spacing of the 10 circuits. This specification is identical and non-negotiable for mechanical compatibility.

Q: Can these parts be used in the same PCB footprint?

A: Yes. Both parts have identical through-hole mounting configuration and pitch. PCB footprints designed for the 4PCV-10-006 accept the OSTYK33110030 without modification.
