4EDL1SCM Power Entry Connector Receptacle IEC 320-C14

Part Overview

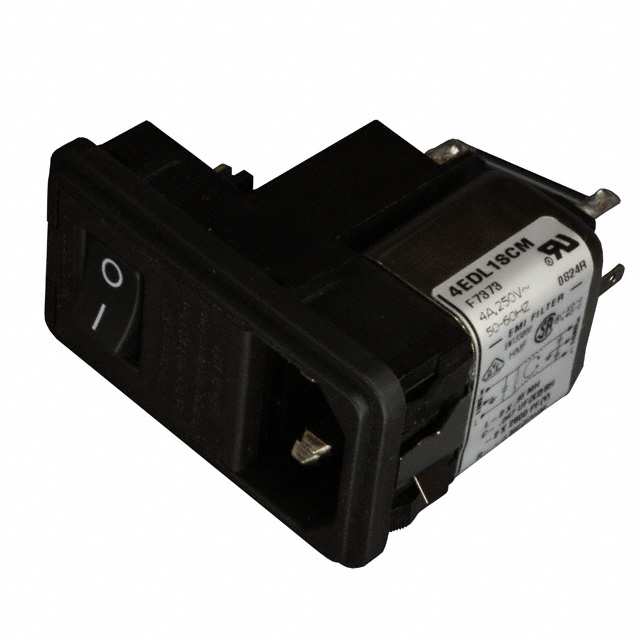

The 4EDL1SCM is a Power Entry Connector Receptacle manufactured by TE Connectivity Corcom Filters, designed for IEC 320-C14 panel mount applications. This filtered power entry module features male blades, snap-in mounting, and integrated EMI/RFI filtering for commercial applications. The part accommodates a fuse and includes an on-off switch mechanism.

The 4EDL1SCM is classified as obsolete. Equivalent and substitute parts are available from active product lines that maintain functional compatibility with the IEC 320-C14 connector standard while offering alternative electrical ratings, termination styles, and fuse holder configurations.

Substiute Parts

4EDL1SCM

TE Connectivity Corcom FiltersIn Stock: 7594EDL1SCM Datasheet

Current PartRFQ

6609107-4

TE Connectivity Corcom FiltersIn Stock: 9596609107-4 Datasheet

SimilarRFQ

FN382-4-22

Schaffner EMC Inc.In Stock: 882FN382-4-22 Datasheet

SimilarRFQ

PE820206

Curtis IndustriesIn Stock: 833PE820206 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 4EDL1SCM is determined by strict adherence to the following core parameters:

Mandatory Compatibility Parameters:

• Connector Style: IEC 320-C14
• Connector Type: Receptacle, Male Blades - Module
• Mounting Type: Panel Mount, Snap-In
• Number of Positions: 3
• Filter Type: Filtered (EMI, RFI) - Commercial
• Switch Features: Switch On-Off
• Accommodates a Fuse: Yes

Variable Parameters Affecting Substitution:

• Current Rating - Appliance Inlet (4A, 6A)
• Voltage Rating - Appliance Inlet (120VAC, 120/250VAC, 250VAC)
• Current Rating - Filter (4A, 6A)
• Termination Style (Quick Connect 0.110", Quick Connect 0.187", Solder Eyelet)
• Fuse Holder Configuration (Single Fuse Holder, Twin Fused)
• Panel Cutout Dimensions (Rectangular fixed or Variable Size)
• Panel Thickness tolerance ranges

Substitute parts maintain the core IEC 320-C14 receptacle architecture and filtered power entry function. Variations in current ratings, voltage ratings, and termination methods are permissible when the application electrical requirements are met or exceeded. Panel cutout dimension differences require mechanical verification during installation.

Parameter Comparison

Engineering Selection Recommendations

6609107-4 (TE Connectivity Corcom Filters)

The 6609107-4 is an active product from the same manufacturer as the 4EDL1SCM. It maintains full IEC 320-C14 receptacle compatibility with identical connector architecture and snap-in panel mounting. The 6609107-4 operates at 6A current rating and 120VAC voltage rating, which exceeds the 4A/120/250VAC specification of the 4EDL1SCM for 120VAC applications. The termination differs at 0.187" (4.7mm) quick connect versus the original 0.110" (2.8mm), requiring PCB or wiring harness modification. The twin fused fuse holder provides enhanced circuit protection. Panel thickness tolerance is slightly reduced (0.79mm ~ 2.90mm). Regulatory approvals include CSA, UL, and VDE. RoHS3 compliance is current.

FN382-4-22 (Schaffner EMC Inc.)

The FN382-4-22 is an active product from Schaffner EMC Inc. with full IEC 320-C14 receptacle compatibility. Current and voltage ratings for the appliance inlet are not specified; however, the filter current rating matches the original at 4A. Termination is solder eyelet, requiring direct PCB soldering rather than quick connect. The twin fused fuse holder provides dual circuit protection. Panel thickness tolerance matches the original (0.79mm ~ 3.20mm). Material flammability rating is UL94 V-2. Ingress protection is rated IP40. Regulatory approvals include CSA, UL, and VDE. RoHS3 compliance is current.

PE820206 (Curtis Industries)

The PE820206 is an active product from Curtis Industries with full IEC 320-C14 receptacle compatibility. It operates at 6A current rating and 250VAC voltage rating, exceeding the original 4A specification and matching the 250VAC upper voltage limit. Termination is quick connect at 0.110" (2.8mm), identical to the original, eliminating wiring harness modification. The twin fused fuse holder provides dual circuit protection. Panel thickness tolerance is 0.79mm ~ 3.18mm, nearly identical to the original. Regulatory approvals include CE, CSA, TUV, and UL. RoHS3 compliance is current.

Frequently Asked Questions (FAQ)

Q: Can the 6609107-4 be used as a direct replacement for the 4EDL1SCM?

A: The 6609107-4 maintains full IEC 320-C14 connector compatibility and identical snap-in panel mounting. However, the termination connector size differs (0.187" versus 0.110"), requiring modification of the PCB or wiring harness connection points. Electrical ratings are compatible for 120VAC applications at 6A, which exceeds the original 4A specification.

Q: What is the primary difference between the FN382-4-22 and the original 4EDL1SCM?

A: The FN382-4-22 uses solder eyelet termination instead of quick connect, requiring direct PCB soldering. The filter current rating matches at 4A. Panel thickness tolerance and overall dimensions are compatible. Ingress protection is rated IP40, and material flammability is UL94 V-2.

Q: Is the PE820206 suitable for 120/250VAC dual voltage applications?

A: The PE820206 is rated for 250VAC operation at 6A. For applications requiring 120VAC operation, the 250VAC rating is compatible. The 6A current rating exceeds the original 4A specification. Termination is identical quick connect 0.110" (2.8mm), eliminating wiring modifications.

Q: What are the panel cutout dimension implications for substitution?

A: The 4EDL1SCM specifies rectangular panel cutout dimensions of 28.50mm x 55.91mm with fixed geometry. The 6609107-4, FN382-4-22, and PE820206 specify variable size panel cutouts. Mechanical verification of panel cutout compatibility is required during installation to ensure proper snap-in fit and alignment.

Q: Are all substitute parts RoHS compliant?

A: The 4EDL1SCM is RoHS Compliant. All three substitute parts (6609107-4, FN382-4-22, PE820206) are ROHS3 Compliant, meeting current regulatory requirements.

Q: What regulatory approvals are common across all parts?

A: CSA, UL, and VDE approvals are present on all four parts (4EDL1SCM, 6609107-4, FN382-4-22, PE820206). The 4EDL1SCM includes additional SEMKO and SEV approvals. The PE820206 includes CE and TUV approvals.

Q: How do fuse holder configurations differ among the substitute parts?

A: The 4EDL1SCM features a single fuse holder. All three substitute parts (6609107-4, FN382-4-22, PE820206) feature twin fused fuse holders, providing dual circuit protection capability.

Q: Can the FN382-4-22 be used in applications requiring quick connect termination?

A: No. The FN382-4-22 uses solder eyelet termination exclusively. Applications requiring quick connect termination should use the 6609107-4 (0.187" connector) or PE820206 (0.110" connector, identical to original).
