4DLCD-35480320-CTP Equivalent & Substitute Parts

Part Overview

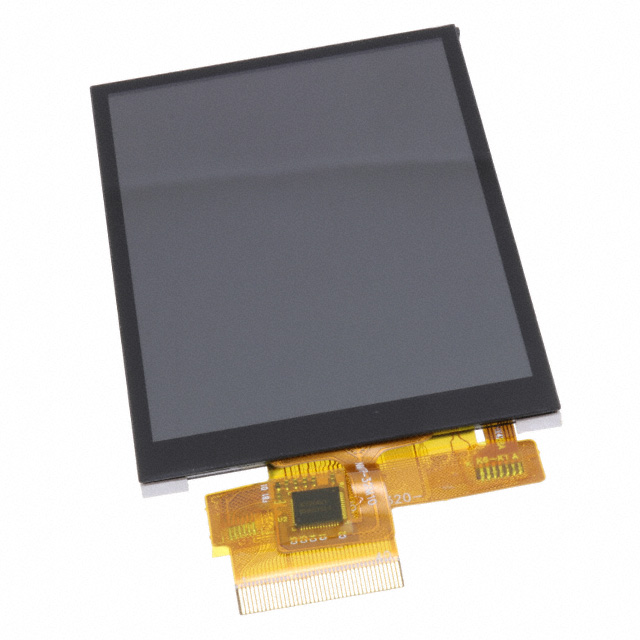

The 4DLCD-35480320-CTP is a 4.6-inch capacitive touchscreen LCD display module featuring a 320 x 480 pixel TFT color transmissive display with MCU and SPI interface options. This module is classified as obsolete, making identification of compatible substitute parts essential for ongoing system support and component procurement.

The primary reason for identifying substitute parts is the obsolete product status. The 4DLCD-35480320-CTP-IPS variant provides functional continuity while offering enhanced display characteristics and active product status.

Substiute Parts

4DLCD-35480320-CTP

4D LCD Pty LtdIn Stock: 9644DLCD-35480320-CTP Datasheet

Current PartRFQ

4DLCD-35480320-CTP-IPS

4D LCD Pty LtdIn Stock: 12054DLCD-35480320-CTP-IPS Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The 4DLCD-35480320-CTP-IPS qualifies as a direct substitute based on the following matching parameters:

• Diagonal screen size: 4.6" (88.90mm)
• Pixel resolution: 320 x 480
• Display mode: Transmissive
• Touchscreen technology: Capacitive
• Interface protocols: MCU, SPI
• Graphics color capability: Red, Green, Blue (RGB)
• Dot pitch: 0.20mm W x 0.20mm H
• Viewing area: 48.96mm W x 73.44mm H
• Backlight type: LED

The substitute part introduces IPS (In-Plane Switching) technology as an enhancement to the display type while maintaining all critical electrical and mechanical compatibility parameters.

Parameter Comparison

Engineering Selection Recommendations

The 4DLCD-35480320-CTP-IPS is the appropriate substitute for the obsolete 4DLCD-35480320-CTP. Selection is based on the following factors:

• All critical electrical parameters match between the main part and substitute
• All mechanical dimensions and interface specifications are identical
• The substitute maintains active product status, ensuring ongoing availability and supply chain continuity
• Both parts meet RoHS compliance requirements; the substitute achieves ROHS3 Compliant status
• Moisture sensitivity levels are equivalent at MSL 1 (Unlimited)
• Export classification (ECCN) and tariff codes (HTSUS) remain unchanged
• The IPS display technology enhancement does not alter electrical or mechanical compatibility

Frequently Asked Questions (FAQ)

Q: Can the 4DLCD-35480320-CTP-IPS be used as a direct replacement for the 4DLCD-35480320-CTP?

A: Yes. The substitute part maintains identical screen size (4.6"), pixel resolution (320 x 480), interface protocols (MCU, SPI), touchscreen technology (capacitive), and mechanical dimensions. All electrical and mechanical parameters required for substitution are matched.

Q: What is the difference between the main part and the substitute?

A: The primary difference is the display technology. The substitute incorporates IPS (In-Plane Switching) technology, which is an enhancement to the standard TFT display. Additionally, the substitute has active product status compared to the obsolete status of the main part.

Q: Are there packaging differences between these parts?

A: Yes. The main part is packaged in a Box, while the substitute is packaged in Bulk. Packaging selection should be based on procurement volume and storage requirements.

Q: Do both parts have the same interface compatibility?

A: Yes. Both parts support MCU and SPI interface protocols, ensuring compatibility with existing system designs.

Q: Are compliance certifications equivalent?

A: Both parts are RoHS compliant. The substitute achieves ROHS3 Compliant status, which represents a more current compliance standard. Both parts share identical MSL, ECCN, and HTSUS classifications.
