Equivalent & Substitute Parts for Honeywell 4AV16F Hall Effect Sensor

Part Overview

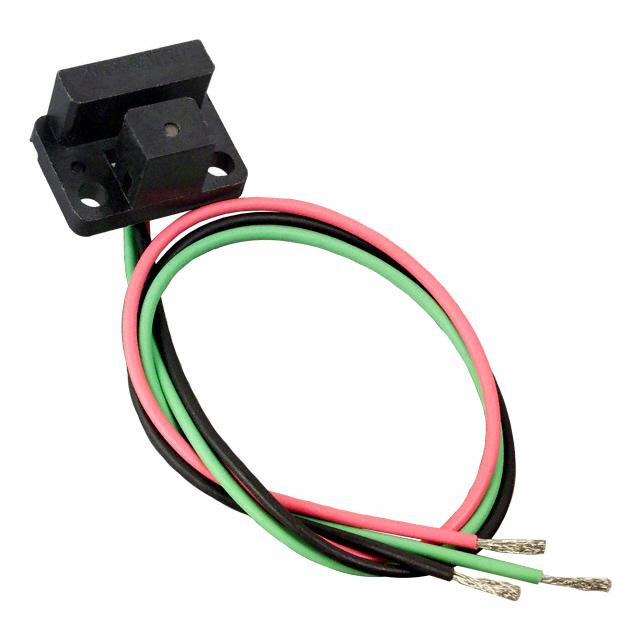

The Honeywell 4AV16F is a digital Hall effect magnetic sensor with wire lead termination, designed for ferrous vane actuation in industrial applications. This component operates across a supply voltage range of 4.5V to 26.5V and features a slotted body package configuration. The 4AV16F is classified as obsolete, necessitating identification of equivalent substitute components that maintain functional and electrical compatibility for ongoing system support and new designs.

Substiute Parts

4AV16F

Honeywell Sensing and Productivity SolutionsIn Stock: 7744AV16F Datasheet

Current PartRFQ

4AV19F

Honeywell Sensing and Productivity SolutionsIn Stock: 12174AV19F Datasheet

DirectRFQ

SR16C-J6

Honeywell Sensing and Productivity SolutionsIn Stock: 1726SR16C-J6 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute components for the 4AV16F are identified based on strict alignment with the following critical parameters:

Primary Substitution Criteria:

• Sensor type: Hall effect with digital output
• Actuator material: Ferrous vane
• Termination: Wire leads
• Package configuration: Slotted body
• Supply voltage compatibility: Minimum 4.5V operation
• RoHS compliance and MSL rating equivalence

Substitute Categories:

Direct Manufacturer Substitute (4AV19F): Shares identical series lineage (4AV), sensor type, output configuration, actuator material, termination style, and package form. Operates within the same voltage supply range (4.5V ~ 26.5V) and maintains equivalent environmental compliance. Product status is active, ensuring continued availability.

Similar Manufacturer Substitute (SR16C-J6): Belongs to the SR16 series from the same manufacturer. Maintains Hall effect digital output, ferrous vane actuation, wire lead termination, and slotted body package. Operates across an extended voltage range (3.8V ~ 30V), which encompasses the 4AV16F operating window. Operating temperature range differs (−20°C ~ 85°C versus 288°C), representing a narrower thermal specification. Product status is active.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (4AV19F):

The 4AV19F is the primary substitute for the obsolete 4AV16F. Both components share identical electrical specifications, including supply voltage range (4.5V ~ 26.5V) and operating temperature (288°C). The 4AV19F maintains active product status with confirmed inventory availability (1153 units), ensuring supply chain continuity. Both components carry equivalent RoHS compliance and MSL ratings. The 4AV19F is packaged in bulk format, suitable for production environments. This substitute requires no circuit redesign or thermal management modifications.

For Extended Voltage Range Applications (SR16C-J6):

The SR16C-J6 provides an alternative when extended supply voltage tolerance is required (3.8V ~ 30V versus 4.5V ~ 26.5V). This component maintains all core functional parameters: Hall effect digital output, ferrous vane actuation, wire lead termination, and slotted body package. The SR16C-J6 operates across a narrower temperature range (−20°C ~ 85°C), which may limit applicability in high-temperature environments where the 4AV16F operates at 288°C. The SR16C-J6 is active with high inventory availability (1700 units). Selection of this substitute is appropriate when thermal specifications do not exceed −20°C to 85°C and extended voltage margin is beneficial.

Compliance Considerations:

Both substitute parts maintain RoHS compliance and REACH unaffected status, consistent with the original 4AV16F. MSL ratings are equivalent across all three components.

Frequently Asked Questions (FAQ)

Q: Can the 4AV19F directly replace the 4AV16F without circuit modifications?

A: Yes. The 4AV19F maintains identical electrical specifications including supply voltage range (4.5V ~ 26.5V), digital output configuration, and operating temperature (288°C). Wire lead termination and slotted body package are unchanged. No circuit redesign is required.

Q: What is the primary difference between the 4AV19F and SR16C-J6 substitutes?

A: The 4AV19F belongs to the same 4AV series as the original part and shares all electrical specifications. The SR16C-J6 is from the SR16 series and offers extended supply voltage range (3.8V ~ 30V) but operates across a narrower temperature range (−20°C ~ 85°C versus 288°C). Series selection depends on application thermal requirements.

Q: Is the SR16C-J6 suitable for high-temperature applications?

A: No. The SR16C-J6 operates between −20°C and 85°C, which does not support the 288°C operating temperature of the 4AV16F. For high-temperature applications, the 4AV19F is the appropriate substitute.

Q: Are packaging differences between substitutes significant?

A: The 4AV19F is supplied in bulk packaging, while the 4AV16F original specification does not specify packaging format. Both maintain identical slotted body case configuration. Bulk packaging is standard for production environments and does not affect component functionality or electrical performance.

Q: Do both substitutes maintain RoHS compliance?

A: Yes. Both the 4AV19F and SR16C-J6 are RoHS compliant with MSL rating 1 (unlimited), matching the original 4AV16F specifications.

Q: Which substitute should be selected for new designs?

A: The 4AV19F is recommended for new designs requiring direct functional equivalence to the 4AV16F. The SR16C-J6 is appropriate when extended supply voltage tolerance (3.8V ~ 30V) is beneficial and operating temperature does not exceed 85°C.
