Honeywell 49M9100 Wirewound Potentiometer - Equivalent & Substitute Parts

Part Overview

The Honeywell 49M9100 is a 100 Ohm, 1.5W wirewound linear potentiometer designed for panel mount applications with a 1-turn rotation and solder lug termination. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations where legacy specifications must be maintained.

The necessity to identify substitute parts stems from the discontinued status of the 49M9100, which restricts availability for repair, replacement, and production applications. Equivalent parts must satisfy the core electrical and mechanical parameters that define the functional role of this potentiometer in its intended circuit.

Substiute Parts

49M9100

Honeywell Sensing and Productivity SolutionsIn Stock: 102649M9100 Datasheet

Current PartRFQ

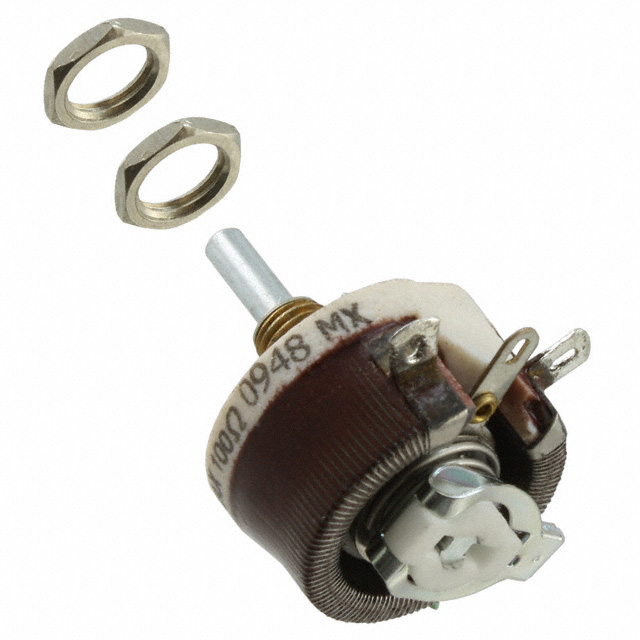

RES100E

OhmiteIn Stock: 1119RES100E Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution logic for the Honeywell 49M9100 is based on strict alignment of electrical and mechanical parameters. A valid substitute must satisfy all critical parameters listed below:

Mandatory Matching Parameters:

• Resistance value: 100 Ohms
• Taper characteristic: Linear
• Number of turns: 1
• Resistive material: Wirewound
• Termination style: Solder Lug
• Mounting type: Panel Mount
• Bushing thread: 1/4-32
• Rotation range: 300°
• Actuator type: Slotted

Allowable Variation Parameters:

• Power rating: May exceed 1.5W (higher power rating provides additional thermal margin and is functionally compatible)
• Tolerance: May differ from ±5% (component-level tolerance variation does not affect substitution eligibility)
• Body diameter: Minor dimensional variation acceptable if mechanical fit is verified
• Actuator length: Minor variation acceptable if adjustment accessibility is maintained
• Product status: Active status preferred for long-term availability

The Ohmite RES100E meets all mandatory matching parameters and exceeds the power rating specification, making it a valid electrical and mechanical substitute.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: Ohmite RES100E

The Ohmite RES100E is the qualified substitute for the obsolete Honeywell 49M9100 based on the following engineering criteria:

Electrical Compatibility: All critical electrical parameters align exactly: 100 Ohm resistance, linear taper, 1-turn configuration, and wirewound construction. The RES100E power rating of 12.5W exceeds the original 1.5W specification, providing enhanced thermal margin and operational safety without compromising circuit function.

Mechanical Compatibility: Panel mount configuration, 1/4-32 bushing thread, 300° rotation range, slotted actuator type, and solder lug termination are identical. The RES100E body diameter increases from 0.750" to 0.875", and actuator length increases from 0.438" to 0.625". These dimensional increases require verification of panel cutout clearance and adjustment accessibility in the target application.

Compliance and Availability: The RES100E holds active product status with ROHS3 compliance certification, ensuring long-term supply chain availability and regulatory alignment. The Honeywell 49M9100 obsolete status creates supply constraints that the active RES100E status resolves.

Implementation Consideration: Physical fit verification is required prior to production implementation due to increased body diameter and actuator length. Panel mounting hardware and adjustment tool access must be confirmed compatible with the larger RES100E dimensions.

Frequently Asked Questions (FAQ)

Q: Can the Ohmite RES100E directly replace the Honeywell 49M9100 without circuit modification?

A: Yes, from an electrical standpoint. The RES100E maintains identical resistance, taper, termination, and rotation specifications. No circuit redesign is required. However, physical fit verification is mandatory due to dimensional differences in body diameter and actuator length.

Q: Why does the RES100E have a higher power rating (12.5W vs. 1.5W)?

A: Higher power rating indicates greater thermal dissipation capability. This is a beneficial characteristic that does not affect substitution eligibility. The RES100E will operate safely in applications designed for the 1.5W 49M9100 and provides additional thermal margin.

Q: Are there tolerance differences between the 49M9100 and RES100E?

A: Yes. The 49M9100 specifies ±5% tolerance while the RES100E specifies ±10%. This difference is acceptable for substitution purposes. Component-level tolerance variation does not prevent functional equivalence in potentiometer applications.

Q: What dimensional verification is required before substitution?

A: The RES100E body diameter is 0.875" compared to the 49M9100 at 0.750". Verify that the panel cutout accommodates this 0.125" increase. The actuator length increases from 0.438" to 0.625", requiring confirmation that adjustment tool access and knob clearance are maintained.

Q: Is the RES100E available in the same packaging as the 49M9100?

A: The 49M9100 is packaged as individual units, while the RES100E is supplied in bulk packaging. Procurement quantities and handling procedures may differ accordingly.

Q: Do both parts meet current regulatory compliance standards?

A: Yes. The 49M9100 is RoHS Compliant, and the RES100E is ROHS3 Compliant. Both meet current environmental and safety standards. The RES100E REACH Unaffected status confirms no restricted substance concerns.

Q: Can the RES100E be used in new designs as well as legacy replacements?

A: Yes. The RES100E active product status and compliance certifications make it suitable for both replacement applications and new design implementations where 100 Ohm, 1-turn, linear wirewound potentiometer specifications are required.
