TE Connectivity AMP Connectors 499997-5 Equivalent & Substitute Parts

Part Overview

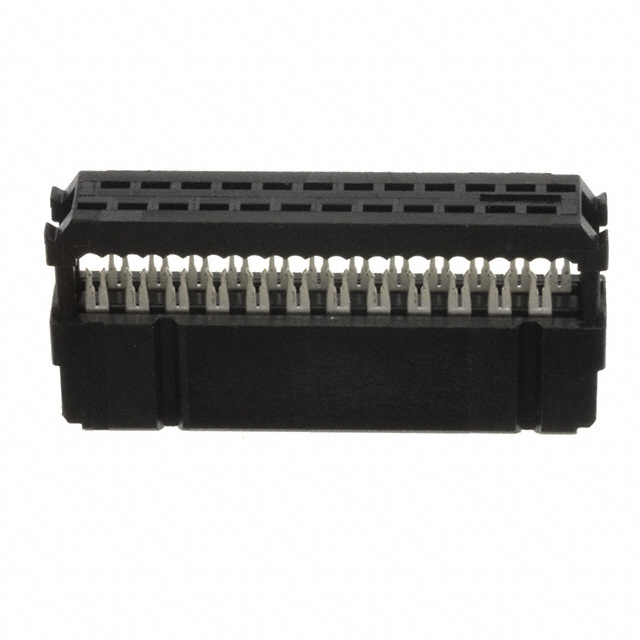

The TE Connectivity AMP Connectors 499997-5 is a 24 Position Rectangular Receptacle Connector designed for IDC (Insulation Displacement Contact) termination with ribbon cable. This connector operates with 26-28 AWG wire gauge and features gold-plated forked contacts for reliable electrical connection in free-hanging, in-line mounting configurations.

The 499997-5 carries an Obsolete product status, making identification of functionally equivalent alternatives necessary for ongoing system support and procurement planning. Substitute parts must maintain identical electrical and mechanical specifications to ensure direct compatibility without design modifications.

Substiute Parts

499997-5

TE Connectivity AMP ConnectorsIn Stock: 710499997-5 Datasheet

Current PartRFQ

1658620-5

TE Connectivity AMP ConnectorsIn Stock: 64691658620-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 499997-5 is determined by strict equivalence across all electrical and mechanical parameters. The following criteria establish direct substitutability:

Critical Matching Parameters:

• Connector type (Receptacle)
• Number of positions (24)
• Pitch and row spacing (0.100" / 2.54mm)
• Cable termination method (IDC)
• Wire gauge compatibility (26-28 AWG)
• Contact type (Forked)
• Contact finish and thickness (Gold, 15.0µin)
• Mounting configuration (Free Hanging, In-Line)
• Feed-through feature presence

The substitute part 1658620-5 maintains complete alignment with all specified parameters, confirming direct functional equivalence. The primary distinction between the main part and substitute relates to product status and compliance certifications rather than electrical or mechanical characteristics.

Parameter Comparison

Engineering Selection Recommendations

For Obsolete Part Replacement:

The 499997-5 is classified as Obsolete, while the substitute part 1658620-5 maintains Active product status. This status difference reflects ongoing manufacturing availability and supply chain continuity. The 1658620-5 is the direct functional equivalent and serves as the primary replacement option for new designs and ongoing procurement.

For Compliance Considerations:

The 499997-5 carries RoHS non-compliant status, whereas 1658620-5 is ROHS3 Compliant. Organizations operating under RoHS regulatory requirements must transition to the 1658620-5 to maintain compliance with current environmental and material restriction standards.

For Supply Chain Planning:

Current inventory levels show 689 pieces of the 499997-5 available, compared to 6378 pieces of the 1658620-5. The significantly higher inventory of the substitute part indicates superior long-term availability and reduced procurement risk.

Both parts share identical electrical and mechanical specifications, moisture sensitivity ratings, export classifications, and tariff codes, confirming direct interchangeability in all technical applications.

Frequently Asked Questions (FAQ)

Q: Can the 1658620-5 directly replace the 499997-5 in existing applications?

A: Yes. The 1658620-5 maintains complete electrical and mechanical equivalence to the 499997-5 across all specified parameters, including connector type, position count, pitch, row spacing, IDC termination method, wire gauge, contact configuration, and finish specifications. Direct substitution requires no design modifications or recertification.

Q: What is the significance of the Obsolete product status for the 499997-5?

A: Obsolete status indicates that the 499997-5 is no longer in active production. This classification necessitates transition to an equivalent active part for future procurement. The 1658620-5 provides continuity of supply and technical function.

Q: How do the packaging differences between the two parts affect compatibility?

A: The 499997-5 packaging is unspecified in the provided data, while the 1658620-5 is packaged in Tube format. Packaging differences do not affect electrical or mechanical compatibility. Packaging selection depends on procurement volume, storage requirements, and handling procedures rather than functional performance.

Q: Are there RoHS compliance implications when switching from 499997-5 to 1658620-5?

A: Yes. The 499997-5 is RoHS non-compliant, while the 1658620-5 is ROHS3 Compliant. Organizations subject to RoHS regulations must use the 1658620-5 to maintain regulatory compliance. The compliance upgrade does not alter electrical or mechanical performance.

Q: Do both parts support the same wire gauge and termination method?

A: Yes. Both the 499997-5 and 1658620-5 support 26-28 AWG ribbon cable with IDC (Insulation Displacement Contact) termination. Wire gauge and termination specifications are identical, ensuring seamless integration with existing ribbon cable assemblies.

Q: What is the significance of the Feed Through feature?

A: The Feed Through feature, present on both parts, indicates that the connector supports continuous signal path routing through the connector body. This feature is maintained identically on both the main part and substitute, preserving functional capability in applications requiring signal pass-through configurations.

Q: Are the contact finish specifications identical between the two parts?

A: Yes. Both parts feature gold-plated contacts with identical finish thickness of 15.0µin (0.38µm). Contact finish specifications determine electrical conductivity, corrosion resistance, and long-term reliability. Identical specifications confirm equivalent performance characteristics.
