TE Connectivity AMP Connectors 499997-1 Equivalent & Substitute Parts

Part Overview

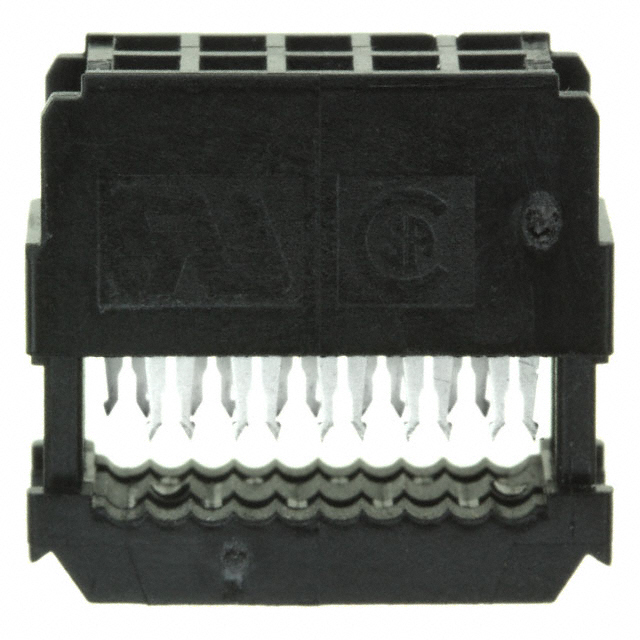

The TE Connectivity AMP Connectors 499997-1 is a 10 Position Rectangular Receptacle Connector with IDC termination, gold contact finish, and support for 26-28 AWG ribbon cable. This connector is part of the AMP-Latch series and features a forked contact type with feed-through capability in a free-hanging, in-line mounting configuration.

The 499997-1 is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and maintenance requirements for systems utilizing this connector type.

Substiute Parts

499997-1

TE Connectivity AMP ConnectorsIn Stock: 932499997-1 Datasheet

Current PartRFQ

1658620-1

TE Connectivity AMP ConnectorsIn Stock: 106391658620-1 Datasheet

DirectRFQ

3473-6010

3MIn Stock: 10463473-6010 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 499997-1 are identified based on electrical and mechanical compatibility within the rectangular connector category. The primary substitution criteria are:

Core Compatibility Parameters:

• Connector type: Receptacle
• Number of positions: 10
• Pitch: 0.100" (2.54mm)
• Row configuration: 2 rows with 0.100" (2.54mm) spacing
• Cable termination method: IDC
• Wire gauge support: 26-28 AWG
• Wire type: Ribbon cable
• Contact finish: Gold
• Mounting configuration: Free Hanging (In-Line)
• Moisture sensitivity level: 1 (Unlimited)

Substitute parts maintain these core parameters while potentially differing in manufacturer, series designation, contact type implementation, packaging format, and compliance certifications. The 499997-1 is obsolete; substitute parts listed below are active products with current availability.

Parameter Comparison

Engineering Selection Recommendations

1658620-1 (Direct Substitute - Recommended for Obsolescence Replacement)

The TE Connectivity 1658620-1 is the primary substitute for the obsolete 499997-1. Both connectors are manufactured by TE Connectivity within the AMP-Latch series and maintain identical electrical and mechanical specifications. The 1658620-1 is an active product with significantly higher inventory availability (10,604 units). The 1658620-1 achieves RoHS Compliance, addressing regulatory requirements that the original 499997-1 does not meet. Contact finish thickness is identical at 15.0µin (0.38µm). Packaging is provided in Tube format. This part is the direct functional equivalent for new designs and obsolescence replacement scenarios.

3473-6010 (Similar Substitute - Alternative Cross-Manufacturer Option)

The 3M 3473-6010 provides cross-manufacturer compatibility within the rectangular connector category. This part maintains all core electrical and mechanical parameters: 10-position receptacle, 0.100" pitch, 2-row configuration, IDC termination, 26-28 AWG support, and gold contact finish. The 3473-6010 differs in the following aspects: contact type is Female Socket rather than Forked; contact finish thickness is increased to 30.0µin (0.76µm); features include Strain Relief rather than Feed Through; housing color is Gray rather than Black; and it is supplied in Bulk packaging. The 3473-6010 achieves ROHS3 Compliance and REACH Unaffected status. This part is suitable for applications where cross-manufacturer sourcing is acceptable and where the increased contact finish thickness and strain relief features provide design advantages.

Compliance Considerations

The original 499997-1 is RoHS non-compliant. Both substitute parts (1658620-1 and 3473-6010) meet current RoHS requirements. For applications subject to RoHS regulations, either substitute part is appropriate. The 3473-6010 provides additional REACH Unaffected certification.

Frequently Asked Questions (FAQ)

Q: Can the 1658620-1 be used as a direct replacement for the 499997-1?

A: Yes. The 1658620-1 maintains identical electrical and mechanical specifications as the 499997-1, including connector type, position count, pitch, row spacing, IDC termination, wire gauge support, and contact finish. Both are TE Connectivity AMP-Latch series products. The 1658620-1 is an active product, whereas the 499997-1 is obsolete.

Q: What are the differences between the 1658620-1 and 3473-6010?

A: Both parts meet the core substitution criteria for the 499997-1. Key differences include: manufacturer (TE Connectivity versus 3M); contact type (Forked versus Female Socket); contact finish thickness (15.0µin versus 30.0µin); features (Feed Through versus Strain Relief); housing color (Black versus Gray); and packaging format (Tube versus Bulk). The 3473-6010 provides increased contact finish thickness and strain relief functionality.

Q: Are there mechanical compatibility concerns when substituting these parts?

A: No. All three parts share identical pitch (0.100"), row spacing (0.100"), mounting type (Free Hanging In-Line), and connector footprint. Mechanical compatibility is maintained across all substitutes.

Q: Does wire gauge compatibility differ between the main part and substitutes?

A: The 499997-1 and 1658620-1 both support 26-28 AWG ribbon cable. The 3473-6010 supports 26-28 AWG in both stranded and solid configurations, providing broader wire type compatibility.

Q: What is the significance of the contact finish thickness difference?

A: The 499997-1 and 1658620-1 both specify 15.0µin (0.38µm) contact finish thickness. The 3473-6010 specifies 30.0µin (0.76µm), which is double the thickness. This increased thickness in the 3473-6010 may provide enhanced durability in high-cycle mating applications, though all three parts maintain gold contact finish for corrosion resistance.

Q: Which substitute part should be selected for new designs?

A: The 1658620-1 is recommended for new designs as it maintains complete specification parity with the 499997-1 while offering active product status, higher inventory availability, and RoHS Compliance. The 3473-6010 is suitable when cross-manufacturer sourcing is preferred or when the increased contact finish thickness and strain relief features align with design requirements.

Q: Are there packaging format considerations?

A: Yes. The 1658620-1 is supplied in Tube packaging, while the 3473-6010 is supplied in Bulk packaging. Packaging selection depends on procurement volume and handling requirements. The original 499997-1 packaging format is not specified in available documentation.

Q: Do all substitute parts meet current regulatory requirements?

A: The 499997-1 is RoHS non-compliant. The 1658620-1 is RoHS Compliant. The 3473-6010 is ROHS3 Compliant and REACH Unaffected. For applications subject to RoHS regulations, both substitute parts are appropriate. The 3473-6010 provides additional REACH certification.

Q: What is the moisture sensitivity level for these connectors?

A: All three parts (499997-1, 1658620-1, and 3473-6010) are rated at Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
