TE Connectivity AMP Connectors 499910-5 Equivalent & Substitute Parts

Part Overview

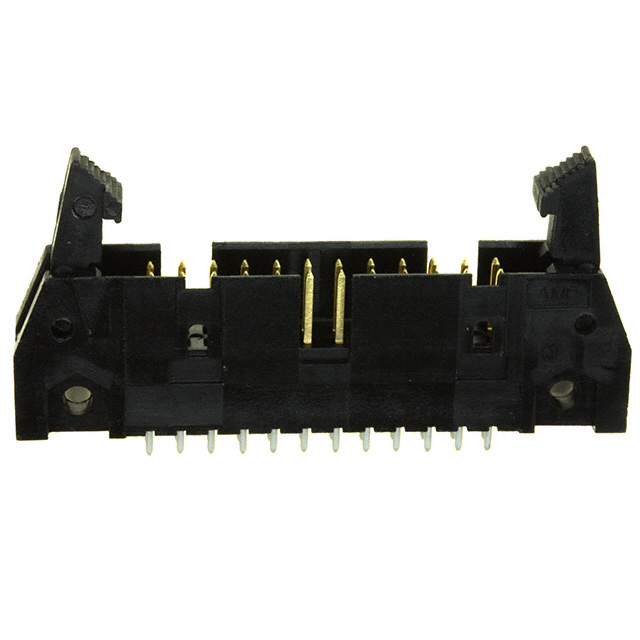

The TE Connectivity AMP Connectors 499910-5 is an active rectangular connector header designed for through-hole mounting applications. This vertical 24-position connector operates at 0.100" (2.54mm) pitch and accommodates board-to-cable/wire connections with shrouded 4-wall construction. The connector features latch lock/eject hooks for secure fastening and is rated for 1A continuous current operation across an operating temperature range of -55°C to 105°C.

Equivalent and substitute parts are identified to address inventory availability, regional sourcing requirements, and specific compliance certifications while maintaining electrical and mechanical compatibility within the rectangular connector category.

Substiute Parts

499910-5

TE Connectivity AMP ConnectorsIn Stock: 968499910-5 Datasheet

Current PartRFQ

5499910-5

TE Connectivity AMP ConnectorsIn Stock: 5359535499910-5 Datasheet

DirectRFQ

N3627-6203RB

3MIn Stock: 902N3627-6203RB Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 499910-5 are classified based on strict alignment with the following critical parameters:

Electrical Compatibility Criteria:

• Contact Type: Male Pin
• Number of Positions: 24
• Pitch - Mating: 0.100" (2.54mm)
• Row Spacing - Mating: 0.100" (2.54mm)
• Current Rating: 1A minimum
• Operating Temperature Range: -55°C ~ 105°C

Mechanical Compatibility Criteria:

• Connector Type: Header
• Mounting Type: Through Hole
• Shrouding: Shrouded - 4 Wall
• Fastening Type: Latch Lock/Eject Hooks, Short
• Termination: Solder
• Material Flammability Rating: UL94 V-0

Substitution Classification:

Direct Equivalent: Part 5499910-5 (TE Connectivity AMP Connectors) maintains identical electrical and mechanical specifications with the primary difference being RoHS3 compliance status and REACH unaffected classification.

Similar Equivalent: Part N3627-6203RB (3M) satisfies all critical electrical and mechanical parameters with documented variations in contact post length, insulation height, contact finish thickness specifications, and current rating elevation to 1.75A, which provides enhanced performance margin within the same connector category.

Parameter Comparison

Engineering Selection Recommendations

Part 5499910-5 (Direct Equivalent):

The 5499910-5 is classified as a direct equivalent to the 499910-5. Both parts are manufactured by TE Connectivity AMP Connectors within the AMP-Latch series and maintain identical electrical and mechanical specifications. The primary distinction is regulatory compliance: 5499910-5 carries ROHS3 compliance certification and REACH unaffected status, whereas the 499910-5 is not applicable for RoHS and is REACH affected. Selection of 5499910-5 is appropriate for applications requiring RoHS3 compliance or REACH unaffected sourcing. Both parts are active products with unlimited moisture sensitivity level (MSL 1).

Part N3627-6203RB (Similar Equivalent):

The N3627-6203RB is manufactured by 3M within the 3000 series and qualifies as a similar equivalent. This part satisfies all critical electrical and mechanical compatibility parameters: 24-position, 2-row header with 0.100" (2.54mm) pitch, through-hole mounting, shrouded 4-wall construction, latch lock/eject hooks, and solder termination. The N3627-6203RB operates within the identical temperature range (-55°C to 105°C) and maintains UL94 V-0 flammability rating.

Documented variations include:

• Contact post length: 0.155" (3.94mm) versus 0.110" (2.79mm)
• Overall contact length: 0.695" (17.65mm) versus 0.639" (16.23mm)
• Insulation height: 0.680" (17.27mm) versus 0.549" (13.94mm)
• Contact finish thickness on post: 200.0µin (5.08µm) versus 100.0µin (2.54µm)
• Current rating: 1.75A versus 1A
• Contact finish mating: Gold versus Gold or Gold-Palladium

The N3627-6203RB carries RoHS compliance and REACH unaffected status. Selection of this part is appropriate when dimensional variations are accommodated by the application design and enhanced current rating provides operational margin. The 3M connector is an active product with MSL 1 classification.

Frequently Asked Questions (FAQ)

Q: Can the 5499910-5 be used as a direct replacement for the 499910-5?

A: Yes. The 5499910-5 is a direct equivalent with identical electrical and mechanical specifications. The primary difference is regulatory compliance status: 5499910-5 is ROHS3 compliant and REACH unaffected, while 499910-5 is not applicable for RoHS and is REACH affected. Both parts are active products manufactured by TE Connectivity AMP Connectors.

Q: What are the key differences between the 499910-5 and the N3627-6203RB?

A: Both connectors share identical core specifications: 24-position, 2-row header with 0.100" (2.54mm) pitch, through-hole mounting, shrouded 4-wall construction, and latch lock/eject hooks. The N3627-6203RB differs in contact post length (0.155" versus 0.110"), overall contact length (0.695" versus 0.639"), insulation height (0.680" versus 0.549"), contact finish thickness (200.0µin versus 100.0µin), and current rating (1.75A versus 1A). The N3627-6203RB is manufactured by 3M and carries RoHS compliance.

Q: Are the dimensional variations of the N3627-6203RB significant for PCB layout?

A: The N3627-6203RB has greater insulation height (0.680" versus 0.549") and overall contact length (0.695" versus 0.639"). These dimensional differences must be evaluated against specific PCB design constraints, including available board space, component clearances, and mating connector positioning. The longer contact post (0.155" versus 0.110") may affect solder joint formation and through-hole depth requirements.

Q: What is the current rating difference between the 499910-5 and N3627-6203RB?

A: The 499910-5 is rated for 1A continuous current, while the N3627-6203RB is rated for 1.75A. The higher current rating of the N3627-6203RB provides additional operational margin but does not affect compatibility with applications designed for 1A operation.

Q: Are all three parts suitable for the same operating temperature range?

A: Yes. The 499910-5, 5499910-5, and N3627-6203RB all operate across the identical temperature range of -55°C to 105°C and maintain UL94 V-0 flammability rating.

Q: What is the significance of RoHS and REACH compliance differences?

A: The 5499910-5 is ROHS3 compliant and REACH unaffected, while the 499910-5 is not applicable for RoHS and is REACH affected. The N3627-6203RB is RoHS compliant and REACH unaffected. Selection depends on regulatory requirements specific to the application's target market and end-use industry. ROHS3 compliance indicates conformance to the Restriction of Hazardous Substances Directive. REACH unaffected status indicates the part does not contain substances of very high concern requiring authorization.

Q: Can the 499910-5 and 5499910-5 be used interchangeably in the same design?

A: Yes. The 499910-5 and 5499910-5 are electrically and mechanically identical and can be used interchangeably. Selection between them depends on regulatory compliance requirements and sourcing availability. Both are active products with unlimited moisture sensitivity level (MSL 1).

Q: What contact finish specifications differ among the three parts?

A: The 499910-5 features gold or gold-palladium mating finish with tin-lead post finish. The 5499910-5 features gold or gold-palladium mating finish with tin post finish. The N3627-6203RB features gold mating finish with tin post finish. Contact finish thickness on the mating surface is 15.0µin (0.38µm) for both TE Connectivity parts and 30.0µin (0.76µm) for the 3M part. Post finish thickness is 100.0µin (2.54µm) for TE Connectivity parts and 200.0µin (5.08µm) for the 3M part.

Q: Are there inventory considerations when selecting between these parts?

A: Inventory levels are provided for reference: 499910-5 has 929 pieces in stock, 5499910-5 has 535,855 pieces in stock, and N3627-6203RB has 856 pieces in stock. Availability may influence sourcing decisions based on project timeline and volume requirements.
