TE Connectivity AMP Connectors 499374-9 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 499374-9 is a rectangular connector header designed for through-hole mounting applications. This vertical 40-position connector operates at 0.100" (2.54mm) pitch and features a shrouded 4-wall design with latch lock/eject hooks. The part is classified as Active product status and is currently in stock with 697 pieces available in bulk packaging.

Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct replacement in circuit board designs without functional degradation.

Key Parameters

Parameter	Specification
Connector Type	Header
Contact Type	Male Pin
Number of Positions	40
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Operating Temperature Range	-65°C ~ 105°C
Current Rating	1A per Contact
Voltage Rating	250VAC
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the 499374-9 are classified into two categories based on substitution criteria:

Direct Substitute (Packaging Variant): The part 5499374-9 maintains identical electrical and mechanical specifications to the main part, with the primary difference being packaging format (Tray versus Bulk). This part is RoHS Compliant and REACH Unaffected, whereas the main part is RoHS non-compliant and REACH Affected. The contact finish on the post differs (Tin versus Tin-Lead).

Functional Equivalents (Cross-Manufacturer): Parts from HARTING (SEK series), Amphenol ICC/FCI (Quickie™ series), and 3M (3000 series) are classified as functional equivalents when they satisfy the following critical parameters:

40 positions, 2 rows, 0.100" (2.54mm) pitch
Through-hole solder termination
Shrouded 4-wall design with latch lock/eject hooks
Square contact shape
Gold mating surface finish
Tin post finish
UL94 V-0 flammability rating
MSL 1 (Unlimited) moisture sensitivity

Variations in contact length dimensions, insulation height, operating temperature range, and current rating specifications indicate design differences that may affect mechanical fit and thermal performance in specific applications.

Parameter Comparison

Parameter	499374-9 (Main)	5499374-9	09185406914	09185407904	71918-240LF	N3432-6202RB	N3432-6203RB
Manufacturer	TE Connectivity	TE Connectivity	HARTING	HARTING	Amphenol ICC (FCI)	3M	3M
Series	AMP-Latch	AMP-Latch	SEK	SEK	Quickie™	3000	3000
Number of Positions	40	40	40	40	40	40	40
Number of Rows	2	2	2	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Connector Type	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Board or Cable	Board to Board or Cable
Contact Shape	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold	Gold	Gold, GXT™	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin	Tin	Tin	Tin	Tin	Tin
Contact Length - Mating	0.240" (6.10mm)	0.240" (6.10mm)	0.228" (5.80mm)	0.228" (5.80mm)	0.228" (5.80mm)	0.240" (6.10mm)	0.240" (6.10mm)
Contact Length - Post	0.155" (3.94mm)	0.155" (3.94mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.112" (2.84mm)	0.155" (3.94mm)
Insulation Height	0.549" (13.94mm)	0.549" (13.94mm)	0.681" (17.30mm)	0.681" (17.30mm)	0.685" (17.40mm)	0.680" (17.27mm)	0.680" (17.27mm)
Operating Temperature	-65°C ~ 105°C	-65°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	Not Specified	-55°C ~ 105°C	-55°C ~ 105°C
Current Rating	1A per Contact	1A per Contact	Not Specified	Not Specified	Not Specified	1.75A	1.75A
Voltage Rating	250VAC	250VAC	Not Specified	Not Specified	Not Specified	Not Specified	Not Specified
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Gray	Gray	Gray	Black	Black
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	RoHS non-compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant
Product Status	Active	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

Direct Substitution (5499374-9): The part 5499374-9 is a direct substitute for 499374-9 with identical electrical and mechanical specifications. This part is RoHS Compliant and REACH Unaffected, providing regulatory advantages over the main part. The contact post finish is Tin instead of Tin-Lead, which aligns with modern lead-free soldering requirements. Selection of 5499374-9 is appropriate when RoHS compliance is a design requirement.

Cross-Manufacturer Equivalents: HARTING SEK series parts (09185406914, 09185407904) are functionally equivalent rectangular connectors with identical pitch, position count, and mounting characteristics. These parts feature extended operating temperature range (-55°C ~ 125°C) compared to the main part (-65°C ~ 105°C). Insulation height differences (0.681" versus 0.549") indicate mechanical design variations that require board layout verification.

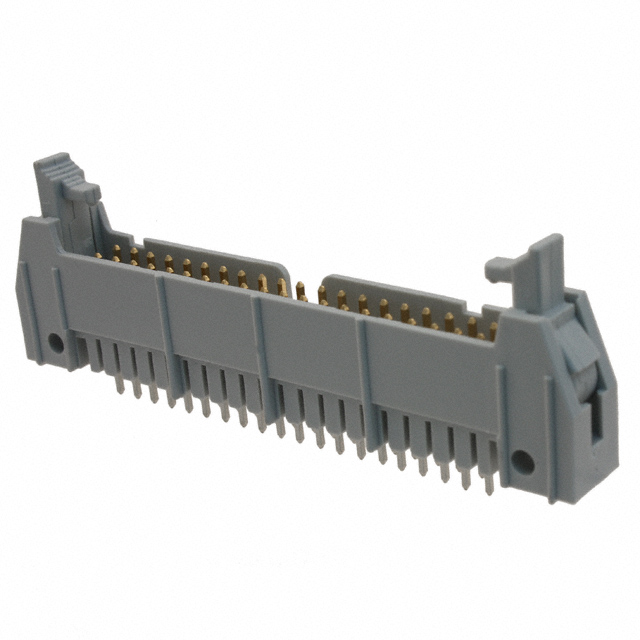

Amphenol ICC/FCI 71918-240LF (Quickie™ series) maintains core electrical compatibility with 0.100" (2.54mm) pitch and 40-position configuration. This part features GXT™ gold mating surface finish and operates at unspecified temperature and voltage ratings.

3M 3000 series parts (N3432-6202RB, N3432-6203RB) provide functional equivalence with higher current rating (1.75A per contact) and operating temperature range (-55°C ~ 105°C). These parts are RoHS Compliant and suitable for applications requiring enhanced current capacity.

All substitute parts maintain UL94 V-0 flammability rating and MSL 1 moisture sensitivity classification, ensuring compatibility with standard PCB assembly processes.

Frequently Asked Questions (FAQ)

Q: Can 5499374-9 be used as a direct replacement for 499374-9?

A: Yes. The 5499374-9 maintains identical electrical and mechanical specifications including pitch, position count, contact dimensions, and operating temperature range. The primary differences are packaging format (Tray versus Bulk) and regulatory compliance status (RoHS Compliant versus RoHS non-compliant). The contact post finish is Tin instead of Tin-Lead, which is compatible with standard solder processes.

Q: What are the key differences between TE Connectivity 499374-9 and HARTING SEK series equivalents?

A: HARTING SEK series parts (09185406914, 09185407904) share identical pitch (0.100"), position count (40), and mounting type (through-hole solder). Mechanical differences include increased insulation height (0.681" versus 0.549") and extended operating temperature range (-55°C ~ 125°C versus -65°C ~ 105°C). Contact length dimensions vary between parts, requiring verification of mechanical fit in specific board designs.

Q: Are HARTING and 3M parts suitable replacements for applications requiring 250VAC rating?

A: HARTING SEK series and Amphenol ICC/FCI 71918-240LF do not specify voltage ratings in their technical data. The 3M 3000 series parts also do not specify voltage ratings. If 250VAC rating is a critical design requirement, the main part 499374-9 or direct substitute 5499374-9 should be selected, as these parts explicitly specify 250VAC voltage rating.

Q: What is the difference between packaging formats (Bulk, Tray, Tube)?

A: Packaging format affects quantity per container and handling characteristics but does not alter electrical or mechanical specifications. Bulk packaging contains loose components, Tray packaging provides organized component arrangement, and Tube packaging offers compact storage. Selection depends on assembly process requirements and inventory management practices.

Q: Can parts with different contact post lengths be interchanged?

A: Contact post length affects solder joint formation and mechanical engagement with mating connectors. The main part 499374-9 specifies 0.155" (3.94mm) post length, while HARTING SEK series parts specify 0.114" (2.90mm). Substitution requires verification that PCB pad design and mating connector specifications accommodate the different post length to ensure reliable solder connections.

Q: Which substitute parts are RoHS Compliant?

A: The following parts are RoHS Compliant: 5499374-9 (RoHS Compliant), 09185406914 (ROHS3 Compliant), 09185407904 (ROHS3 Compliant), 71918-240LF (RoHS Compliant), N3432-6202RB (RoHS Compliant), and N3432-6203RB (RoHS Compliant). The main part 499374-9 is RoHS non-compliant. Selection of RoHS Compliant alternatives is required for applications subject to RoHS directive requirements.

Q: What current rating should be considered when selecting a substitute?

A: The main part 499374-9 specifies 1A per contact. The 3M 3000 series parts (N3432-6202RB, N3432-6203RB) specify 1.75A per contact, providing higher current capacity. HARTING SEK series and Amphenol ICC/FCI 71918-240LF do not specify current ratings. For applications requiring current ratings above 1A per contact, the 3M parts are suitable alternatives.

Q: Are all substitute parts available in the same packaging options?

A: No. The main part 499374-9 is available in Bulk packaging. The 5499374-9 direct substitute is available in Tray packaging. HARTING parts are available in Bulk or Tray formats depending on specific part number. Amphenol ICC/FCI 71918-240LF is available in Tube packaging. 3M parts are available in Bulk packaging. Packaging availability should be verified with supplier inventory before component selection.
