Equivalent & Substitute Parts for 48ASDP1S1M7RBT

Part Overview

The 48ASDP1S1M7RBT is a slide switch manufactured by Grayhill Inc., classified as a DPDT (Double Pole Double Throw) switch rated for 0.4VA at 20V. This component is a through-hole, right-angle vertical mounted switch with gold-plated copper alloy contacts and epoxy sealed terminals. The part maintains Active product status with 681 units in current inventory.

Substitute parts become necessary when the primary component reaches end-of-life status, supply constraints occur, or design requirements necessitate alternative electrical or mechanical specifications. The substitute parts listed below are NKK Switches models that share core DPDT switching architecture and through-hole mounting configuration.

Substiute Parts

48ASDP1S1M7RBT

Grayhill Inc.In Stock: 72648ASDP1S1M7RBT Datasheet

Current PartRFQ

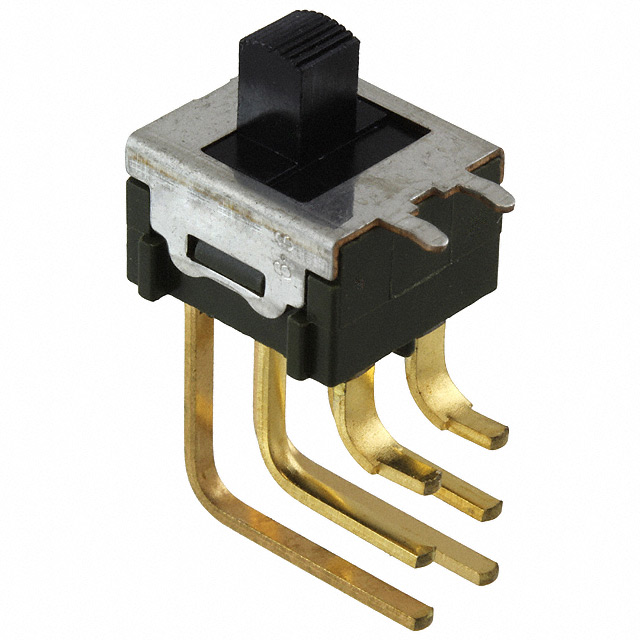

MS22ASG40

NKK SwitchesIn Stock: 799MS22ASG40 Datasheet

SimilarRFQ

MS22BSG40

NKK SwitchesIn Stock: 1324MS22BSG40 Datasheet

SimilarRFQ

MS22BSW40

NKK SwitchesIn Stock: 1033MS22BSW40 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 48ASDP1S1M7RBT is determined by the following critical parameters:

Primary Compatibility Criteria:

• Circuit configuration: DPDT
• Switch function: On-On
• Mounting type: Through Hole, Right Angle, Vertical
• Termination style: PC Pin
• Operating temperature range: -30°C to 85°C minimum
• Contact finish: Gold plating
• Features: Epoxy sealed terminals

Voltage and Current Considerations: Substitute parts must operate at or above the electrical ratings of the primary component. The 48ASDP1S1M7RBT operates at 0.4VA/20V. Substitutes with higher voltage ratings (28V, 125V) are electrically compatible for applications requiring 20V operation, as they represent derating scenarios. Substitutes with higher current ratings are compatible when voltage requirements remain within specified limits.

Physical Compatibility: Actuator length, switch travel, and mounting geometry must align with PCB layout requirements. Variations within 0.1mm of specified dimensions maintain mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

MS22ASG40 and MS22BSG40 (0.4VA, 28V Rating): These NKK Switches models provide direct functional equivalence to the 48ASDP1S1M7RBT for applications operating at 20V or below. Both parts maintain DPDT configuration, On-On switching function, and identical current ratings. The 28V voltage rating provides operational margin above the 20V requirement. Both parts feature Non-Shorting (BBM) contact timing and extended electrical life (50,000 cycles versus 30,000 cycles). MS22BSG40 is supplied in Tray packaging with higher inventory availability (1,250 units). Both parts carry ROHS3 compliance and MSL 1 rating. Product status is Obsolete for both models, indicating limited future availability.

MS22BSW40 (6A, 125V Rating): This NKK Switches model represents a higher-capacity alternative suitable for applications requiring increased current handling or higher voltage operation. The 6A AC rating and 125V AC rating exceed the 0.4VA/20V specification of the primary component. This part is appropriate only when circuit design permits operation at elevated voltage and current levels. The contact material differs (Silver Alloy with Silver finish versus Copper Alloy with Gold finish), which affects contact resistance and environmental performance characteristics. Electrical life is 25,000 cycles, below the primary component specification. Product status is Obsolete.

Compliance and Regulatory Status: All substitute parts maintain ROHS3 compliance, MSL 1 rating, and REACH Unaffected status, matching the primary component's regulatory profile. All parts carry EAR99 ECCN classification and identical HTSUS code (8536.50.9050).

Inventory and Availability: The primary component 48ASDP1S1M7RBT maintains Active status with 681 units in stock. Substitute parts are Obsolete, with MS22ASG40 (690 units), MS22BSG40 (1,250 units), and MS22BSW40 (952 units) available. Obsolete status indicates these parts may not be replenished after current inventory depletion.
