TE Connectivity AMP Connectors 487117-8 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 487117-8 is an active FFC/FPC (Flat Flexible) connector contact designed as a crimp socket with tin-lead finish. This component functions as a contact element within flat flexible connector assemblies, providing electrical termination through crimp attachment methods. The part is classified as a socket contact with a tin-lead plated finish at 100.0µin (2.54µm) thickness.

Substitute parts are identified to address packaging format availability, compliance requirements, or inventory considerations while maintaining functional equivalence within the FFC/FPC connector category.

Substiute Parts

487117-8

TE Connectivity AMP ConnectorsIn Stock: 750487117-8 Datasheet

Current PartRFQ

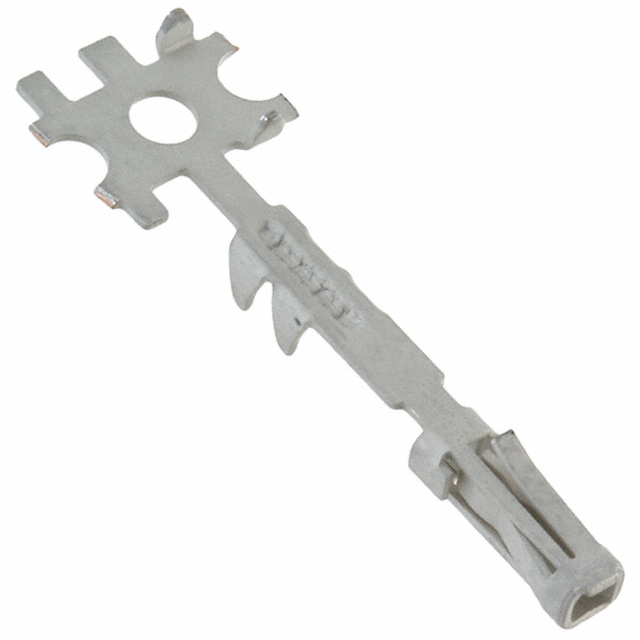

487117-9

TE Connectivity AMP ConnectorsIn Stock: 25842487117-9 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between 487117-8 and 487117-9 is based on the following criteria:

Functional Equivalence Parameters:

• Both parts share the same base product number (487117), indicating a common design platform
• Both are socket contacts with crimp termination
• Both maintain identical contact finish thickness of 100.0µin (2.54µm)
• Both are classified as FFC/FPC connector contacts
• Both have MSL rating of 1 (Unlimited)
• Both are manufactured by TE Connectivity AMP Connectors
• Both are active products

Differentiating Parameters:

• Contact finish composition: 487117-8 uses tin-lead; 487117-9 uses tin
• Packaging format: 487117-8 is supplied in Tape & Reel (TR); 487117-9 is supplied in Cut Tape (CT)
• RoHS compliance: 487117-8 is RoHS non-compliant; 487117-9 is ROHS3 compliant

These parts are interchangeable from a functional and mechanical standpoint within FFC/FPC connector applications where the contact finish material and RoHS compliance status are acceptable for the end application.

Parameter Comparison

Engineering Selection Recommendations

487117-8 Selection Criteria:

• Applications requiring tin-lead contact finish
• Projects with RoHS non-compliance allowances
• Tape & Reel packaging format requirements for automated assembly processes

487117-9 Selection Criteria:

• Applications requiring ROHS3 compliance
• Projects subject to RoHS regulations or customer specifications mandating lead-free components
• Cut Tape packaging format suitable for manual assembly or lower-volume production
• Higher inventory availability (25784 Pcs vs. 658 Pcs)

Both parts maintain active product status and are suitable for FFC/FPC connector socket contact applications with identical mechanical and electrical specifications except for contact finish material and RoHS compliance status.

Frequently Asked Questions (FAQ)

Q: Are 487117-8 and 487117-9 mechanically interchangeable?

A: Yes. Both parts are socket contacts with crimp termination, identical contact finish thickness (100.0µin / 2.54µm), and share the same base product number (487117). They are mechanically compatible within FFC/FPC connector assemblies.

Q: What is the primary difference between these two parts?

A: The primary differences are contact finish material (tin-lead vs. tin) and RoHS compliance status. 487117-8 features tin-lead finish and is RoHS non-compliant, while 487117-9 features tin finish and is ROHS3 compliant.

Q: Can I substitute 487117-9 for 487117-8 in an existing design?

A: Substitution is possible if the application permits tin contact finish and ROHS3 compliance. Contact finish material changes may affect electrical performance characteristics in specific applications; verify compatibility with your design requirements.

Q: What packaging formats are available?

A: 487117-8 is supplied in Tape & Reel (TR) format, suitable for automated pick-and-place assembly. 487117-9 is supplied in Cut Tape (CT) format, suitable for manual assembly or lower-volume applications.

Q: Which part has better inventory availability?

A: 487117-9 has significantly higher inventory availability with 25784 Pcs in stock compared to 487117-8 with 658 Pcs in stock.

Q: Are both parts classified as active products?

A: Yes. Both 487117-8 and 487117-9 are active products from TE Connectivity AMP Connectors with no planned obsolescence.

Q: What is the MSL rating for these contacts?

A: Both parts have an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
