Amphenol ICC 48248-000 Socket Contact Rectangular Connector

Part Overview

The Amphenol ICC 48248-000 is a socket contact for rectangular connectors in the Mini-PV™ Basics+ series, designed for 22-26 AWG wire gauge applications with gold plating and crimp termination. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing design and procurement requirements. The part maintains full functionality in applications requiring socket contacts with the specified electrical and mechanical characteristics.

Key Parameters

Parameter	Value
Manufacturer Part Number	48248-000
Manufacturer	Amphenol ICC (FCI)
Category	Rectangular Connectors
Pin or Socket	Socket
Wire Gauge	22-26 AWG
Contact Termination	Crimp
Contact Finish	Gold
Contact Finish Thickness	15.0µin (0.38µm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution for the 48248-000 is determined by strict equivalence in the following parameters:

Wire gauge: 22-26 AWG
Contact type: Socket
Termination method: Crimp
Contact finish: Gold (primary requirement)
Moisture sensitivity level: 1 (Unlimited)
Connector category: Rectangular connectors

Substitute parts are grouped into two categories:

Direct Amphenol ICC Equivalent: The 48248-000LF represents the active production equivalent from the same manufacturer, maintaining identical electrical and mechanical specifications with updated RoHS compliance.

Cross-Manufacturer Alternatives: Parts from TE Connectivity AMP Connectors and Hirose Electric Co Ltd meet all core electrical and mechanical parameters. These alternatives are selected based on matching wire gauge, socket configuration, crimp termination, and gold contact finish specifications.

Parameter Comparison

Part Number	Manufacturer	Series	Wire Gauge	Contact Finish	Contact Finish Thickness	RoHS Status	Product Status	Packaging
48248-000	Amphenol ICC (FCI)	Mini-PV™, Basics+	22-26 AWG	Gold	15.0µin (0.38µm)	RoHS non-compliant	Obsolete	-
48248-000LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	22-26 AWG	Gold	15.0µin (0.38µm)	RoHS Compliant	Active	Cut Tape (CT)
103171-4	TE Connectivity AMP Connectors	AMPMODU Mod IV 1/2	22-26 AWG	Gold	30.0µin (0.76µm)	ROHS3 Compliant	Active	Cut Tape (CT)

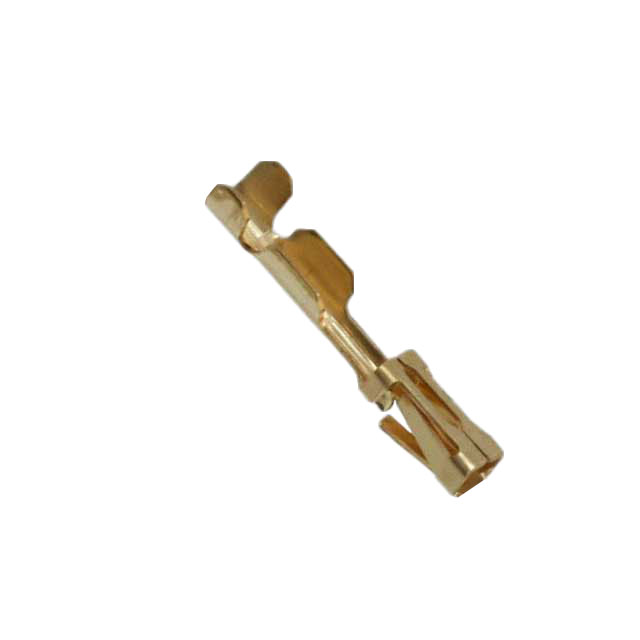

87666-1	TE Connectivity AMP Connectors	AMPMODU Mod IV	22-26 AWG	Gold	30.0µin (0.76µm)	RoHS Compliant	Active	Tape & Reel (TR)
A1-2226SCC	Hirose Electric Co Ltd	A1	22-26 AWG	Gold	8.00µin (0.203µm)	ROHS3 Compliant	Active	Bulk
HNC-2.5S-C-A(01)	Hirose Electric Co Ltd	HNC	22-26 AWG	-	-	RoHS Compliant	Active	Tape & Reel (TR)
HNC-2.5S-D-A(02)	Hirose Electric Co Ltd	HNC	22-26 AWG	Gold	-	ROHS3 Compliant	Active	Bulk
HNC-2.5S-D-A(15)	Hirose Electric Co Ltd	HNC	22-26 AWG	Tin	-	ROHS3 Compliant	Active	Bulk

Engineering Selection Recommendations

Primary Recommendation: The 48248-000LF is the direct active equivalent from Amphenol ICC, maintaining identical specifications to the obsolete 48248-000 while achieving RoHS compliance. This part is suitable for direct replacement in all applications.

Secondary Recommendations: The TE Connectivity parts (103171-4 and 87666-1) and Hirose parts (A1-2226SCC, HNC-2.5S-C-A(01), HNC-2.5S-D-A(02)) are functionally equivalent based on wire gauge, socket configuration, crimp termination, and gold contact finish. All substitute parts maintain MSL 1 rating and are in active production status.

Compliance Considerations: The 48248-000LF, 103171-4, 87666-1, A1-2226SCC, HNC-2.5S-C-A(01), and HNC-2.5S-D-A(02) are RoHS compliant or ROHS3 compliant, addressing regulatory requirements for new designs. The HNC-2.5S-D-A(15) variant uses tin finish instead of gold and is suitable only for applications where tin contact finish is acceptable.

Packaging Availability: Substitute parts are available in multiple packaging formats (Cut Tape, Tape & Reel, Bulk), allowing selection based on procurement and assembly requirements.

Frequently Asked Questions (FAQ)

Q: Can the 48248-000LF directly replace the obsolete 48248-000?

A: Yes. The 48248-000LF maintains identical electrical and mechanical specifications, including wire gauge (22-26 AWG), socket configuration, crimp termination, and gold contact finish. The primary difference is RoHS compliance status and active production availability.

Q: What are the key parameters that determine substitutability?

A: Wire gauge (22-26 AWG), contact type (socket), termination method (crimp), contact finish (gold for primary substitutes), and moisture sensitivity level (MSL 1) are the critical parameters. All listed substitutes meet these requirements.

Q: Are there differences in contact finish thickness among substitutes?

A: Yes. The original 48248-000 specifies 15.0µin (0.38µm) gold thickness. TE Connectivity parts specify 30.0µin (0.76µm), and the Hirose A1-2226SCC specifies 8.00µin (0.203µm). These variations remain within acceptable ranges for the specified wire gauge and application category.

Q: What is the difference between the HNC-2.5S-D-A(02) and HNC-2.5S-D-A(15)?

A: Both are Hirose HNC series socket contacts for 22-26 AWG wire. The HNC-2.5S-D-A(02) features gold contact finish, while the HNC-2.5S-D-A(15) features tin contact finish. Selection depends on application requirements for contact material.

Q: Does packaging format affect electrical or mechanical compatibility?

A: No. Packaging format (Cut Tape, Tape & Reel, Bulk) affects procurement and assembly processes but does not alter the electrical or mechanical characteristics of the socket contact itself.

Q: Are all substitute parts in active production?

A: Yes. All listed substitutes maintain active product status, ensuring ongoing availability and supply chain reliability.
