SCHURTER 4758.6200 AC Power Connector - Equivalent & Substitute Parts

Part Overview

The SCHURTER 4758.6200 is a Power Entry Connector Receptacle with IEC 320-2-2/F configuration, designed for panel-mount applications with snap-in installation. This component features female sockets rated for 10A at 250VAC, unfiltered commercial operation, and quick-connect termination with a 0.250" (6.3mm) connector interface.

The 4758.6200 carries an Obsolete product status. Identifying equivalent substitute parts ensures design continuity and maintains supply chain reliability for applications requiring IEC 320-2-2/F power entry receptacles with compatible electrical and mechanical specifications.

Substiute Parts

4758.6200

SCHURTER Inc.In Stock: 8274758.6200 Datasheet

Current PartRFQ

0909.0021

SCHURTER Inc.In Stock: 22100909.0021 Datasheet

SimilarRFQ

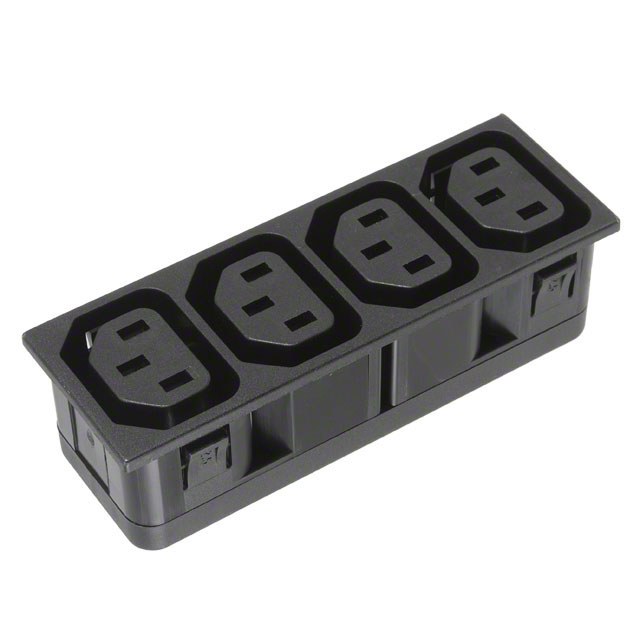

4752.6200

SCHURTER Inc.In Stock: 13384752.6200 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the SCHURTER 4758.6200 are qualified based on the following critical parameters that determine functional and mechanical compatibility:

Electrical Compatibility Criteria:

• Connector Style: IEC 320-2-2/F (identical)
• Connector Type: Receptacle, Female Sockets (identical)
• Current Rating: 10A (identical)
• Voltage Rating: 250VAC (identical)
• Number of Positions: 3 per connection (4) (identical)
• Filter Type: Unfiltered - Commercial (identical)

Mechanical Compatibility Criteria:

• Mounting Type: Panel Mount, Snap-In (identical)
• Material Flammability Rating: UL94 V-0 (identical)
• Ingress Protection: IP30 (identical)

Regulatory Compliance:

• Approval Agency certifications must maintain equivalent safety standards

The identified substitute parts (0909.0021 and 4752.6200) satisfy all critical electrical and mechanical parameters. Variations in termination type, panel cutout dimensions, and panel thickness represent design alternatives within the same functional category and do not affect core electrical performance or safety ratings.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Preferred): The SCHURTER 4752.6200 is the primary substitute for the 4758.6200. Both parts share identical termination methodology (Quick Connect - 0.250"), matching electrical ratings, and equivalent safety certifications. The 4752.6200 maintains Active product status with confirmed inventory availability (1307 pcs), ensuring long-term supply chain viability. Panel cutout dimensions differ slightly (96.20mm vs. 134.00mm), requiring mechanical layout verification for panel integration.

Alternative Substitute (Termination Consideration): The SCHURTER 0909.0021 provides electrical and mechanical equivalence with a critical difference in termination type (Solder Eyelet vs. Quick Connect). This part is suitable only for applications where solder-based termination is acceptable and preferred. The 0909.0021 features a smaller panel cutout dimension (96.30mm) and operates with Active product status. RoHS3 compliance is confirmed for this variant.

Compliance Considerations: All substitute parts maintain UL94 V-0 flammability rating and IP30 ingress protection. Regulatory certifications differ by region (cURus/ENEC for 4758.6200; cULus/ENEC for 0909.0021; CCC/ENEC 10 for 4752.6200). Verify that selected substitute certifications align with target market requirements.

Frequently Asked Questions (FAQ)

Q: Can the 4752.6200 be used as a direct replacement for the 4758.6200? A: Yes. Both parts share identical electrical specifications (10A, 250VAC, IEC 320-2-2/F), mounting methodology (Panel Mount, Snap-In), and safety ratings (UL94 V-0, IP30). The primary design difference is panel cutout dimension (96.20mm vs. 134.00mm), which must be verified against your panel layout before implementation.

Q: What is the key difference between the 0909.0021 and 4752.6200 substitutes? A: The termination interface differs. The 0909.0021 uses Solder Eyelet termination, while the 4752.6200 uses Quick Connect - 0.250" (6.3mm) termination, matching the original 4758.6200. Select based on your circuit board or wiring harness connection methodology.

Q: Why is the 4758.6200 marked as Obsolete? A: The 4758.6200 has reached end-of-life status. The 4752.6200 and 0909.0021 are Active alternatives that provide equivalent functionality with confirmed ongoing availability.

Q: Are there panel cutout dimension differences I need to account for? A: Yes. The 4758.6200 specifies a rectangular cutout of 32.50mm x 134.00mm. The 4752.6200 requires 32.50mm x 96.20mm, and the 0909.0021 requires 32.50mm x 96.30mm. Verify your panel design accommodates the substitute part's cutout dimensions before procurement.

Q: Do all substitute parts meet the same regulatory certifications? A: All parts maintain equivalent safety standards (UL94 V-0, IP30). However, approval agencies differ: the 4758.6200 carries cURus and ENEC; the 0909.0021 carries cULus and ENEC; the 4752.6200 carries CCC and ENEC 10. Confirm that the substitute's certifications satisfy your regional compliance requirements.

Q: What is the panel thickness requirement for each part? A: The 4758.6200 and 4752.6200 both require 0.098" (2.50mm) panel thickness. The 0909.0021 requires 0.059" (1.50mm) panel thickness. Ensure your panel design meets the thickness specification of your selected substitute.
