SCHURTER 4758.3000 Equivalent & Substitute Parts

Part Overview

The SCHURTER 4758.3000 is a power entry connector receptacle designed for IEC 320-2-2/F applications. This component functions as a female socket panel-mount inlet rated for 10A at 250VAC in unfiltered commercial configurations. The part is classified as obsolete, necessitating identification of active equivalent models to maintain supply chain continuity for applications requiring this connector style and electrical specification.

Substiute Parts

4758.3000

SCHURTER Inc.In Stock: 10824758.3000 Datasheet

Current PartRFQ

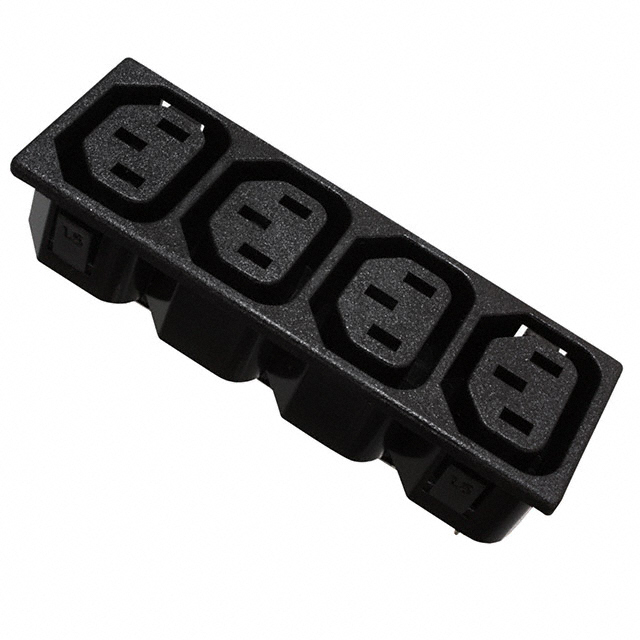

0909.0021

SCHURTER Inc.In Stock: 22100909.0021 Datasheet

SimilarRFQ

4752.3000

SCHURTER Inc.In Stock: 12254752.3000 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SCHURTER 4758.3000 is determined by strict equivalence across the following parameters:

• Connector style and type (IEC 320-2-2/F receptacle, female sockets)
• Electrical ratings (10A, 250VAC)
• Mounting configuration (panel mount, snap-in)
• Position count (3 per connection, 4 total)
• Filter classification (unfiltered - commercial)
• Material flammability (UL94 V-0)
• Ingress protection (IP30)

The identified substitute parts maintain these core specifications while differing in termination method, panel cutout dimensions, and approval certifications. Both substitute parts are active products with current manufacturing status.

Parameter Comparison

Engineering Selection Recommendations

Both SCHURTER 4752.3000 and 0909.0021 are active products suitable for replacing the obsolete 4758.3000 in applications requiring IEC 320-2-2/F receptacle connectors at 10A, 250VAC.

The 4752.3000 maintains identical termination specifications (Solder, Quick Connect - 0.250") and panel thickness (0.039" / 1.00mm) as the original part, with a reduced panel cutout length of 96.20mm versus 134.00mm. This part carries CCC and ENEC 10 certifications and is ROHS3 compliant.

The 0909.0021 employs solder eyelet termination and accommodates panel thickness up to 0.059" (1.50mm), with a panel cutout dimension of 32.50mm x 96.30mm. This part carries cULus and ENEC certifications and is ROHS3 compliant.

Selection between these substitutes depends on termination method compatibility with the target application and panel mounting geometry requirements.

Frequently Asked Questions (FAQ)

Q: Can the 4752.3000 and 0909.0021 be used interchangeably with the 4758.3000?

A: Both parts maintain electrical equivalence (10A, 250VAC, IEC 320-2-2/F receptacle configuration). Interchangeability depends on panel cutout dimensions and termination method compatibility. The 4752.3000 matches the original termination type (Quick Connect), while the 0909.0021 uses solder eyelet termination.

Q: What are the key differences in panel mounting between these parts?

A: The 4758.3000 requires a 32.50mm x 134.00mm rectangular cutout in 0.039" (1.00mm) thick panels. The 4752.3000 requires 32.50mm x 96.20mm in 0.039" panels. The 0909.0021 requires 32.50mm x 96.30mm and accommodates panel thickness up to 0.059" (1.50mm). Panel geometry must be verified before substitution.

Q: Are there compliance differences between the substitute parts?

A: The 4752.3000 carries CCC and ENEC 10 certifications. The 0909.0021 carries cULus and ENEC certifications. Both are ROHS3 compliant. Application-specific regulatory requirements must be evaluated against these certifications.

Q: What termination methods are available?

A: The 4758.3000 and 4752.3000 use Solder with Quick Connect - 0.250" (6.3mm) terminals. The 0909.0021 uses Solder Eyelet termination. Circuit board layout and connector pin specifications must accommodate the selected termination type.
