Amphenol ICC 47565-000 Socket Contact Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 47565-000 is a rectangular connector socket contact designed for 22-26 AWG wire gauges with gold plating and crimp termination. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing system maintenance and new design implementations. The Mini-PV™ and Basics+ series socket contacts are widely used in applications requiring reliable crimp-terminated connections with gold contact finish specifications.

Substiute Parts

47565-000

Amphenol ICC (FCI)In Stock: 111247565-000 Datasheet

Current PartRFQ

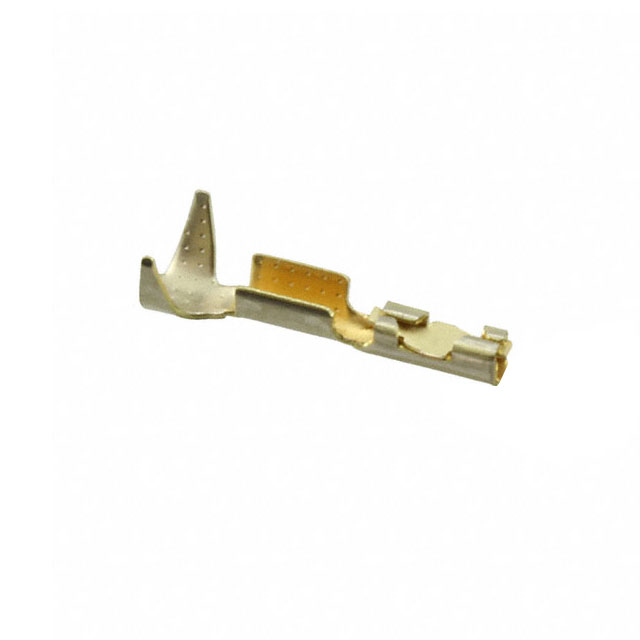

47565-000LF

Amphenol ICC (FCI)In Stock: 2074047565-000LF Datasheet

DirectRFQ

0008550123

MolexIn Stock: 8620008550123 Datasheet

MFR RecommendedRFQ

0008550137

MolexIn Stock: 9790008550137 Datasheet

MFR RecommendedRFQ

0008580125

MolexIn Stock: 7170008580125 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the 47565-000 is determined by the following critical parameters:

• Wire Gauge Compatibility: 22-26 AWG (all substitutes match this specification)
• Contact Termination Method: Crimp termination (all substitutes use crimp termination)
• Contact Finish: Gold plating (all substitutes feature gold contact finish)
• Connector Category: Rectangular connectors (all substitutes are rectangular connectors)

The primary substitute grouping includes:

1. Direct Amphenol ICC Equivalent: 47565-000LF (same manufacturer, same series, active product status with RoHS compliance)
2. Molex KK 2578 Series Alternatives: 0008550123, 0008550137, 0008580125 (different manufacturer, non-gendered contact type, varying contact finish thickness)

All listed substitutes maintain the core electrical and mechanical compatibility parameters required for 22-26 AWG crimp socket contact applications.

Parameter Comparison

Engineering Selection Recommendations

For RoHS-Compliant Applications: Select 47565-000LF as the primary substitute. This part maintains identical specifications to the original 47565-000 while offering active product status and RoHS compliance. It is supplied in Cut Tape packaging and represents the direct equivalent from the original manufacturer.

For Non-Gendered Contact Requirements: The Molex KK 2578 series contacts (0008550123, 0008550137, 0008580125) provide functional alternatives with non-gendered contact geometry. These parts are active products with ROHS3 compliance and are supplied in Tape & Reel packaging. Contact finish thickness varies across these options (30.0µin, 30.0µin, and 15.0µin respectively), which may influence selection based on application durability requirements.

For Legacy System Maintenance: If the original 47565-000 specification must be maintained exactly, limited inventory (1073 pcs) remains available as new original stock. However, transition to 47565-000LF is recommended for long-term supply chain stability.

Frequently Asked Questions (FAQ)

Q: Can 47565-000LF be used as a direct replacement for 47565-000?

A: Yes. Both parts share identical electrical and mechanical specifications including wire gauge (22-26 AWG), contact termination (crimp), contact finish (gold), and contact finish thickness (40.0µin). The primary difference is product status (active vs. obsolete) and RoHS compliance. 47565-000LF is the recommended substitute for new designs and ongoing production.

Q: What is the difference between socket and non-gendered contacts?

A: The 47565-000 is a socket contact, while Molex KK 2578 series parts (0008550123, 0008550137, 0008580125) are non-gendered contacts. Socket contacts are specifically designed to receive pin contacts, while non-gendered contacts can function in either pin or socket applications. Compatibility depends on the mating connector design.

Q: How does contact finish thickness affect part selection?

A: Contact finish thickness influences durability and wear resistance. The 47565-000 and 47565-000LF both specify 40.0µin (1.02µm) gold plating. Molex alternatives offer reduced thickness: 0008550123 and 0008550137 at 30.0µin (0.76µm), and 0008580125 at 15.0µin (0.38µm). Thicker plating generally provides extended service life in high-cycle mating applications.

Q: What packaging options are available?

A: 47565-000LF is supplied in Cut Tape (CT) packaging. Molex alternatives (0008550123, 0008550137, 0008580125) are supplied in Tape & Reel (TR) packaging. Packaging selection affects handling, storage, and automated assembly compatibility.

Q: Are all substitutes RoHS compliant?

A: 47565-000LF is RoHS Compliant. All Molex alternatives (0008550123, 0008550137, 0008580125) are ROHS3 Compliant. The original 47565-000 is RoHS non-compliant. For applications requiring RoHS compliance, select from the compliant alternatives listed above.
