TE Connectivity Erni 464533 Equivalent & Substitute Parts

Part Overview

The TE Connectivity Erni 464533 is a high-speed receptacle connector with 60 positions designed for edge-mount applications. This connector is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing system support and component procurement.

The 464533 serves as a board-edge receptacle for high-speed signal transmission in backplane and daughtercard applications. Due to its obsolete status, active equivalent parts must be sourced to maintain design continuity and ensure long-term component availability.

Substiute Parts

464533

TE Connectivity ErniIn Stock: 752464533 Datasheet

Current PartRFQ

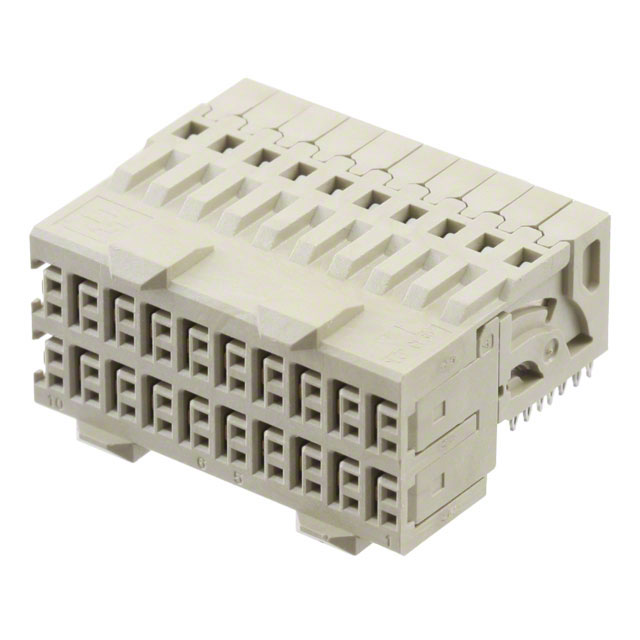

2065769-1

TE Connectivity Aerospace, Defense and MarineIn Stock: 9362065769-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 464533 is determined by the following critical parameters that must remain consistent:

Functional Parameters:

• Number of Positions: 60 (exact match required)
• Connector Type: Receptacle, Female Sockets (functional equivalence)
• Mounting Type: Board Edge, Through Hole, Right Angle (mechanical compatibility)
• Connector Style: High Speed (signal integrity requirement)

Electrical Parameters:

• Pitch: 0.098" (2.50mm) (mechanical spacing requirement)
• Number of Rows: 4 and Number of Columns: 10 (physical layout)
• Contact Layout: 40 Signal, 20 Ground (signal distribution)

The substitute part 2065769-1 maintains all critical functional and electrical parameters while providing an active, supported alternative from TE Connectivity's current product portfolio.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 2065769-1 is the designated substitute for the obsolete 464533 based on the following engineering criteria:

Product Status Alignment: The 2065769-1 maintains active product status with full manufacturer support, ensuring long-term availability and technical documentation access. The 464533's obsolete classification necessitates transition to an actively supported equivalent.

Compliance and Certifications: The 2065769-1 carries ROHS3 compliance and UL94 V-0 material flammability rating, meeting current regulatory requirements. REACH unaffected status confirms environmental compliance for aerospace, defense, and marine applications.

Functional Equivalence: Both connectors maintain identical 60-position, high-speed, board-edge receptacle configurations with 0.098" (2.50mm) pitch spacing. The mechanical and electrical interface parameters are directly compatible.

Electrical Performance: The 2065769-1 provides specified electrical ratings (0.600A current, 250V voltage) and operating temperature range (-65°C ~ 105°C) suitable for high-speed backplane and daughtercard applications.

Frequently Asked Questions (FAQ)

Q: Can the 2065769-1 directly replace the 464533 in existing designs?

A: Yes. Both connectors share identical 60-position count, 0.098" (2.50mm) pitch, board-edge mounting configuration, and high-speed connector style. The mechanical and electrical interfaces are compatible for direct substitution.

Q: What is the primary reason for substituting the 464533?

A: The 464533 is classified as obsolete, meaning TE Connectivity no longer manufactures or supports this part. The 2065769-1 is an active product with full manufacturer support, ensuring component availability and technical documentation access.

Q: Are there compliance differences between the two parts?

A: The 2065769-1 provides explicit ROHS3 compliance and UL94 V-0 material flammability certification. These certifications meet current regulatory standards for aerospace, defense, and marine applications. The 464533 compliance status is not specified.

Q: What is the packaging format for the substitute part?

A: The 2065769-1 is supplied in Tube packaging, as specified by the manufacturer.

Q: Does the 2065769-1 include shielding?

A: Yes. The 2065769-1 features shielding for electromagnetic interference mitigation in high-speed signal applications.

Q: What is the moisture sensitivity level of the substitute part?

A: The 2065769-1 carries MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage and handling.

Q: Are there inventory considerations for this substitution?

A: The 2065769-1 has 835 pieces in new original stock, providing adequate supply for component procurement. The 464533 has 719 pieces available but is obsolete and should not be specified for new designs.
