Switchcraft 46206LFE DPDT Slide Switch Equivalent & Substitute Parts

Part Overview

The Switchcraft 46206LFE is a DPDT slide switch rated for 3A AC at 125V, designed for panel mount applications with solder lug termination. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing system support and new design implementations. The 46206LFE features non-shorting contact timing and is marked for 115V-230V line voltage selector applications.

Substiute Parts

46206LFE

Switchcraft Inc.In Stock: 85346206LFE Datasheet

Current PartRFQ

46206LFRX

Switchcraft Inc.In Stock: 230846206LFRX Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

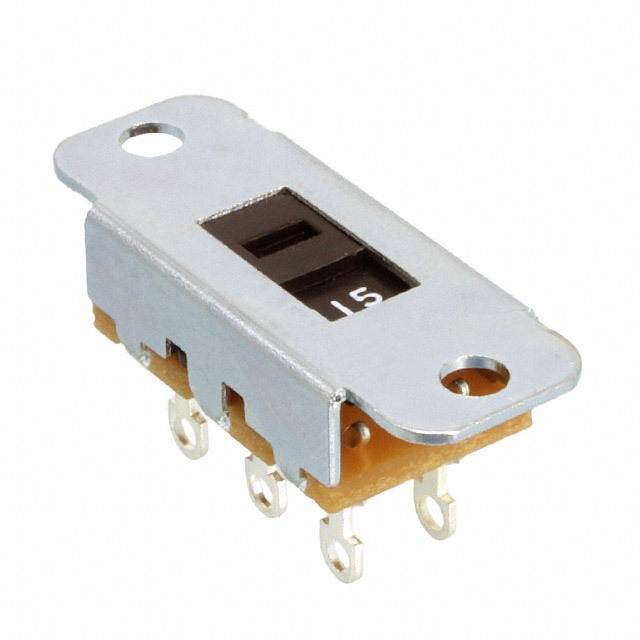

Substitution of the obsolete 46206LFE is based on electrical and mechanical parameter equivalence within the Switchcraft 46200 series. The primary substitute, 46206LFRX, maintains identical electrical specifications including DPDT circuit configuration, 3A AC / 500mA DC current ratings, and 125V AC/DC voltage ratings. Both parts feature non-shorting contact timing, screwdriver slot actuators with flush length, copper alloy contacts, panel mount configuration, and solder lug termination.

The key parameters determining substitution validity are:

• Circuit configuration (DPDT)
• Contact timing (Non-Shorting BBM)
• Current and voltage ratings (3A AC, 500mA DC, 125V AC/DC)
• Actuator type and length (Screwdriver Slot, Flush)
• Mounting and termination (Panel Mount, Solder Lug)
• Operating temperature range (-20°C to 70°C)
• Switch travel distance (4.78mm)

The 46206LFRX represents an active product from the 46200R series, providing functional and mechanical compatibility with the obsolete 46206LFE.

Parameter Comparison

Engineering Selection Recommendations

The 46206LFRX is the direct active equivalent for the obsolete 46206LFE. Both parts are manufactured by Switchcraft Inc. and maintain identical electrical and mechanical specifications across all critical parameters. The 46206LFRX is currently in active production status with 2218 units available in bulk packaging, compared to the obsolete 46206LFE.

A significant compliance difference exists: the 46206LFRX achieves ROHS3 compliance, while the 46206LFE is RoHS non-compliant. For applications subject to RoHS regulations or environmental compliance requirements, the 46206LFRX provides regulatory alignment. Both parts maintain REACH Unaffected status and EAR99 export classification.

For new designs or system replacements, the 46206LFRX is the appropriate selection. For legacy system maintenance where RoHS compliance is not a requirement, the 46206LFRX remains functionally equivalent and provides superior supply chain availability.

Frequently Asked Questions (FAQ)

Q: Can the 46206LFRX directly replace the 46206LFE in existing applications?

A: Yes. The 46206LFRX maintains identical electrical ratings (3A AC, 500mA DC, 125V AC/DC), circuit configuration (DPDT), contact timing (Non-Shorting BBM), actuator specifications (Screwdriver Slot, Flush), mounting type (Panel Mount), and termination style (Solder Lug). Physical dimensions and switch travel (4.78mm) are identical. Direct substitution is valid for all electrical and mechanical parameters.

Q: What is the primary difference between these two parts?

A: The 46206LFE is obsolete, while the 46206LFRX is an active product. The 46206LFRX achieves ROHS3 compliance, whereas the 46206LFE is RoHS non-compliant. All functional and electrical specifications are equivalent.

Q: Are there packaging differences between the 46206LFE and 46206LFRX?

A: The 46206LFE is supplied with standard packaging, while the 46206LFRX is available in bulk packaging. Both use identical solder lug termination and panel mount configuration. Packaging format does not affect electrical or mechanical compatibility.

Q: Does the 46206LFRX meet current regulatory requirements?

A: The 46206LFRX is ROHS3 compliant and REACH Unaffected, meeting current environmental and chemical compliance standards. The obsolete 46206LFE is RoHS non-compliant. For applications requiring regulatory compliance, the 46206LFRX is the appropriate selection.

Q: What is the operating temperature range for both parts?

A: Both the 46206LFE and 46206LFRX operate across -20°C to 70°C. Temperature specifications are identical and do not differentiate substitution suitability.
