3M 4614-7301 Equivalent & Substitute Parts

Part Overview

The 3M 4614-7301 is a 14-position rectangular plug connector with IDC (Insulation Displacement Contact) termination, designed for discrete or ribbon cable applications with wire gauges of 26-28 AWG. This connector features gold-plated contacts, a closed-end design, and latch lock/eject hooks for secure mating. The part is Active status and ROHS3 compliant, making it suitable for industrial and commercial applications requiring reliable interconnection solutions.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector series, allowing for component interchangeability in applications where specific fastening or feature variations do not impact system performance.

Substiute Parts

4614-7301

3MIn Stock: 9924614-7301 Datasheet

Current PartRFQ

4614-6001

3MIn Stock: 12684614-6001 Datasheet

MFR RecommendedRFQ

4614-6301

3MIn Stock: 16034614-6301 Datasheet

MFR RecommendedRFQ

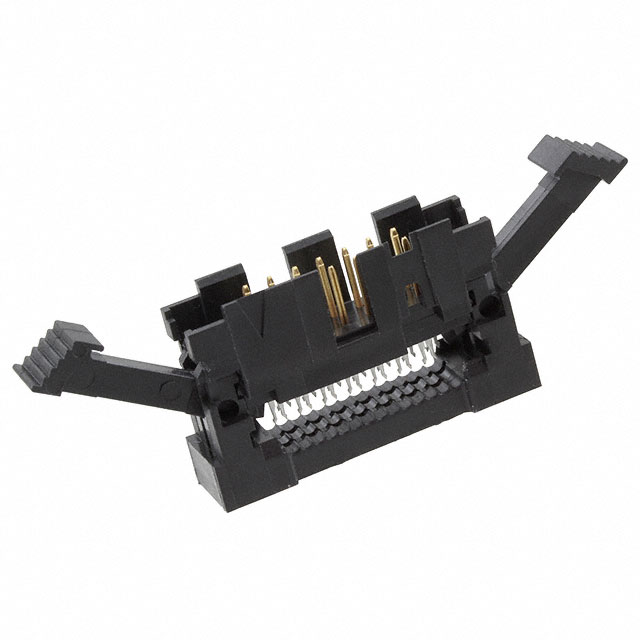

1-111504-5

TE Connectivity AMP ConnectorsIn Stock: 12731-111504-5 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 4614-7301 is determined by strict equivalence across the following critical parameters:

• Electrical Compatibility: 14 positions, 0.100" (2.54mm) pitch, 2-row configuration, IDC termination, 26-28 AWG wire gauge, gold contact finish at 30.0µin thickness
• Mechanical Compatibility: Free hanging in-line mounting, male pin contact type
• Environmental Compliance: ROHS3 compliance, MSL 1 rating, EAR99 ECCN classification

Variations in fastening type (latch lock/eject hooks versus feed-through design) and end configuration (closed-end versus feed-through) do not affect electrical or mechanical interchangeability when mating with standard 14-position receptacles. Packaging format differences (bulk versus tray) represent logistics variations only.

The identified substitutes maintain full parameter equivalence within the 3M 4600 series and cross-manufacturer TE Connectivity AMP-Latch series, ensuring direct functional replacement capability.

Parameter Comparison

Engineering Selection Recommendations

All identified substitute parts maintain Active product status and ROHS3 compliance, confirming ongoing manufacturer support and environmental regulatory alignment.

3M 4614-6001: Functionally equivalent within the 3M 4600 series. Differs in fastening type (no latch specification) and end configuration (feed-through versus closed-end). Suitable for applications where end configuration flexibility is acceptable. Highest inventory availability among 3M options at 1165 pieces.

3M 4614-6301: Functionally equivalent within the 3M 4600 series. Maintains identical fastening type (latch lock/eject hooks, long) and differs only in end configuration (feed-through versus closed-end). Highest overall inventory availability at 1499 pieces. Recommended for direct replacement where fastening characteristics must match the original specification.

TE Connectivity 1-111504-5: Cross-manufacturer equivalent from the AMP-Latch series. Maintains all critical electrical and mechanical parameters. Differs in packaging format (tray versus bulk), color (black versus gray), and wire type specification (ribbon cable only versus discrete or ribbon cable). Suitable for applications where wire type is limited to ribbon cable and packaging format is compatible with receiving processes.

Frequently Asked Questions (FAQ)

Q: Can 4614-6001 directly replace 4614-7301 in existing assemblies?

A: Electrical and mechanical compatibility is maintained. The primary difference is end configuration (feed-through versus closed-end) and fastening type specification. Verify that the receiving connector design accommodates feed-through configuration before substitution.

Q: What is the significance of the fastening type difference between 4614-7301 and 4614-6001?

A: The 4614-7301 specifies latch lock/eject hooks (long), while 4614-6001 has no fastening type designation. Both maintain mechanical mating compatibility with standard 14-position receptacles. Fastening type affects connector retention and release characteristics but does not impact electrical performance.

Q: Is the TE Connectivity 1-111504-5 suitable for discrete wire applications?

A: The 1-111504-5 specification limits wire type to ribbon cable only, whereas the 3M variants support both discrete and ribbon cable. If discrete wire termination is required, use 3M 4614-6001 or 4614-6301.

Q: Does color difference between gray (3M) and black (TE Connectivity) affect functionality?

A: Color is a cosmetic parameter with no impact on electrical or mechanical performance. Selection based on color is a design or assembly documentation requirement only.

Q: What packaging considerations apply when substituting 4614-6301 (bulk) with 1-111504-5 (tray)?

A: Packaging format affects receiving, storage, and handling processes. Verify that receiving and inventory systems accommodate tray packaging before substitution. Electrical and mechanical compatibility remains unchanged.

Q: Are all substitute parts suitable for the same environmental conditions as 4614-7301?

A: All substitute parts share identical MSL 1 (unlimited) ratings and ROHS3 compliance, confirming equivalent environmental performance across temperature, humidity, and regulatory requirements.
