Bivar Inc. 455-210 T1/T1 3/4 LED Standoff Mounting Pad

Part Overview

The Bivar Inc. 455-210 is a white nylon LED mounting pad designed for T1 and T1 3/4 LED packages. This component functions as a standoff and positioning element with a nominal height of 0.210" (5.33mm). The part maintains Active product status and is RoHS3 compliant. Alternative part numbers within the Bivar product line are available to accommodate different height specifications and series requirements while maintaining compatibility with T1 and T1 3/4 LED packages.

Substiute Parts

455-210

Bivar Inc.In Stock: 814455-210 Datasheet

Current PartRFQ

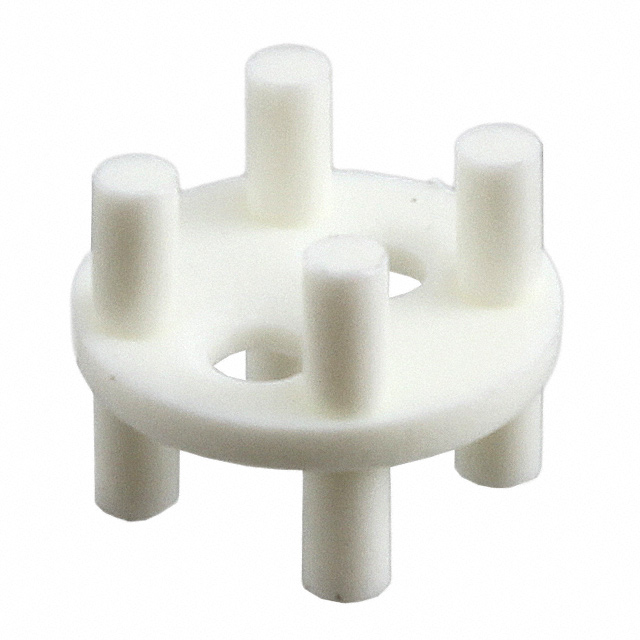

450-200

Bivar Inc.In Stock: 3755450-200 Datasheet

Parametric EquivalentRFQ

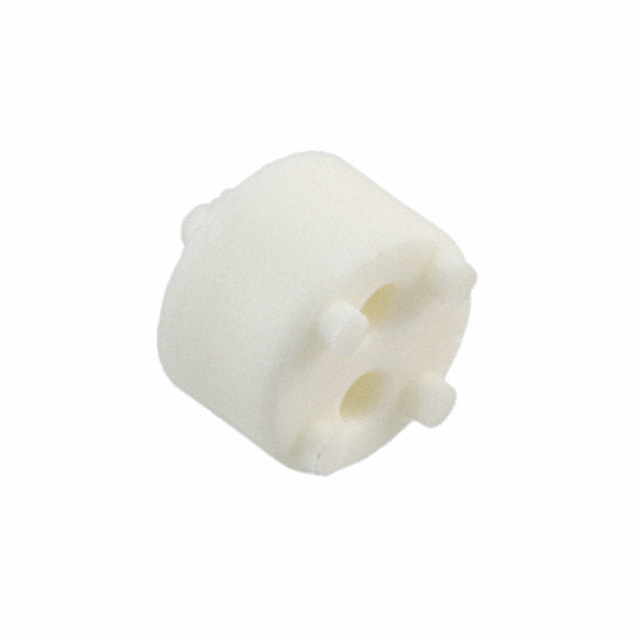

455-200

Bivar Inc.In Stock: 1016455-200 Datasheet

Parametric EquivalentRFQ

455-220

Bivar Inc.In Stock: 1283455-220 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 455-210 is determined by the following parameters: LED package compatibility (T1, T1 3/4), material composition (nylon), color (white), RoHS3 compliance, and MSL rating (1). The primary variable among substitute parts is the standoff height dimension.

The following parts meet these substitution criteria:

455-200: Height 0.200" (5.08mm), same series, same LED compatibility 455-220: Height 0.220" (5.59mm), same series, same LED compatibility 450-200: Height 0.200" (5.08mm), different series, same LED compatibility

Height variation accommodates different PCB-to-LED spacing requirements in circuit design. All substitute parts maintain identical material, color, compliance, and LED package specifications.

Parameter Comparison

Engineering Selection Recommendations

All listed substitute parts maintain Active product status and RoHS3 compliance, ensuring regulatory and supply chain continuity. Selection between 455-210, 455-200, 455-220, and 450-200 is determined by the required standoff height for the specific PCB assembly design.

For applications requiring 0.200" (5.08mm) height, both 455-200 and 450-200 are functionally equivalent. The 455-200 maintains series consistency with the primary part number. The 450-200 represents an alternative series option with identical height and LED package specifications.

For applications requiring 0.220" (5.59mm) height, the 455-220 is the appropriate selection within the 455 series.

All parts are supplied in bag packaging and carry unlimited moisture sensitivity rating, indicating no special storage requirements.

Frequently Asked Questions (FAQ)

Q: Can 455-200 be used in place of 455-210? A: The 455-200 is a functional substitute if the circuit design accommodates a 0.200" (5.08mm) standoff height instead of 0.210" (5.33mm). Both parts support T1 and T1 3/4 LED packages and maintain identical material, color, and compliance specifications.

Q: What is the difference between 455-200 and 450-200? A: Both parts have identical height (0.200"), material (nylon), color (white), LED compatibility (T1, T1 3/4), and compliance status. The primary difference is the series designation: 455-200 belongs to the 455 series, while 450-200 belongs to the 450 series. Functionally, they are equivalent for the specified parameters.

Q: When should 455-220 be selected? A: The 455-220 should be selected when the circuit design requires a 0.220" (5.59mm) standoff height. This part maintains all other specifications identical to the 455-210, including LED package compatibility and material composition.

Q: Are all substitute parts RoHS3 compliant? A: Yes. All listed substitute parts (455-200, 455-220, and 450-200) are RoHS3 compliant, matching the compliance status of the primary part 455-210.

Q: Do these parts require special storage or handling? A: No. All parts carry MSL rating 1 (Unlimited), indicating no moisture sensitivity restrictions. Standard component storage practices apply.

Q: Can height differences affect LED alignment? A: Height differences between parts directly affect PCB-to-LED spacing. The 0.010" (0.25mm) difference between 455-200 and 455-210, and the 0.010" (0.25mm) difference between 455-210 and 455-220, must be evaluated against specific circuit board layout requirements.
