TE Connectivity 440260-1 USB-A Receptacle Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity 440260-1 is a USB-A (USB TYPE-A) USB 2.0 receptacle connector with 4 positions, designed for through-hole, right-angle mounting applications. This connector features solder termination and is constructed with a copper alloy shell and gold or gold-palladium contact finish.

The 440260-1 carries an obsolete product status. Identification of equivalent and substitute parts is necessary to ensure design continuity, maintain supply chain reliability, and support ongoing production or repair requirements for systems utilizing this connector type.

Substiute Parts

440260-1

TE Connectivity AMP ConnectorsIn Stock: 913440260-1 Datasheet

Current PartRFQ

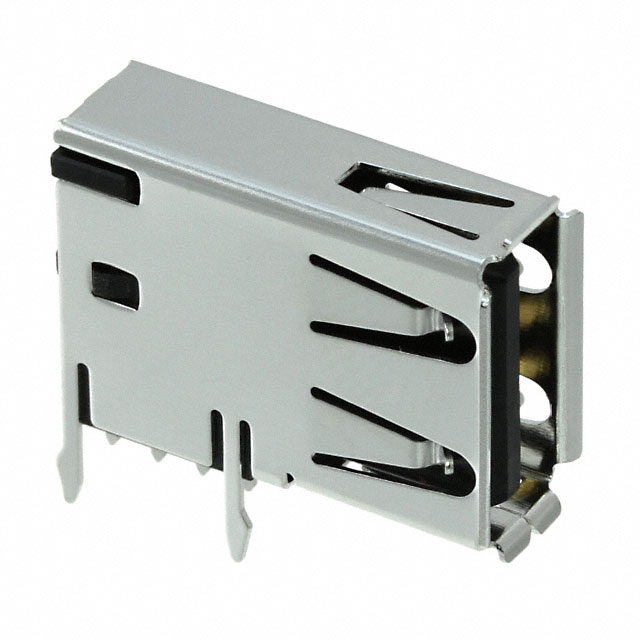

292336-1

TE Connectivity AMP ConnectorsIn Stock: 3503292336-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 440260-1 is based on functional and mechanical equivalence across the following critical parameters:

Connector Type & Specifications: Both the main part and substitute maintain USB-A (USB TYPE-A) configuration with USB 2.0 compliance, ensuring protocol-level compatibility.

Contact Configuration: Both parts feature 4 positions with receptacle gender, maintaining identical pin count and mating interface.

Mounting Characteristics: Both employ through-hole, right-angle mounting with vertical flag mounting features, ensuring identical PCB footprint and installation methodology.

Termination Method: Both utilize solder termination, maintaining compatibility with existing assembly processes.

Material & Construction: Both feature copper alloy shell construction with UL94 V-0 flammability rating, ensuring equivalent mechanical durability and safety compliance.

The substitute part 292336-1 satisfies all functional and mechanical requirements for direct replacement in applications previously utilizing the 440260-1.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity 292336-1

The 292336-1 is the direct functional equivalent for the obsolete 440260-1. Both connectors share identical connector type, specifications, contact configuration, mounting methodology, and material construction.

Compliance Advantage: The 292336-1 carries active product status and ROHS3 compliance, whereas the 440260-1 is obsolete and RoHS non-compliant. Selection of the 292336-1 ensures compliance with current regulatory requirements and access to ongoing manufacturer support.

Electrical Performance: The 292336-1 provides specified electrical parameters (1A per contact, 30VAC rated, 1500 mating cycles) that support standard USB 2.0 applications. These specifications align with USB 2.0 protocol requirements and typical application demands.

Physical Compatibility: Identical mounting type, mounting feature, and termination method ensure direct PCB footprint compatibility and assembly process compatibility with existing designs utilizing the 440260-1.

Supply Chain Continuity: The 292336-1 maintains higher inventory availability (3470 pieces in stock versus 897 pieces for the obsolete part), supporting both immediate and sustained production requirements.

Frequently Asked Questions (FAQ)

Q: Can the 292336-1 directly replace the 440260-1 in existing designs?

A: Yes. Both connectors share identical connector type (USB-A), specifications (USB 2.0), contact configuration (4 positions, receptacle), mounting type (through-hole, right-angle), mounting feature (vertical flag), and termination method (solder). PCB footprint and assembly compatibility are maintained.

Q: What are the key differences between these two parts?

A: The primary differences are product status (440260-1 is obsolete; 292336-1 is active), RoHS compliance (440260-1 is non-compliant; 292336-1 is ROHS3 compliant), contact finish specification (440260-1 specifies gold or gold-palladium; 292336-1 specifies gold), and insulation color (440260-1 is black; 292336-1 is natural). The 292336-1 also provides specified electrical parameters and mating cycle ratings.

Q: Are there packaging differences between these parts?

A: The 440260-1 packaging is not specified in available documentation. The 292336-1 is supplied in bulk packaging. Confirm packaging requirements with your procurement process.

Q: Does the 292336-1 meet current regulatory requirements?

A: Yes. The 292336-1 is ROHS3 compliant and carries active product status, ensuring compliance with current regulatory frameworks and ongoing manufacturer support.

Q: What is the operating temperature range for these connectors?

A: The 440260-1 operating temperature is not specified. The 292336-1 operates across -55°C to 85°C, supporting standard industrial and commercial temperature environments.

Q: Are both connectors shielded?

A: Shielding specification for the 440260-1 is not provided. The 292336-1 is shielded, providing electromagnetic interference protection for USB 2.0 signal integrity.
