Honeywell 43C210K Wirewound Potentiometer - Equivalent & Substitute Parts

Part Overview

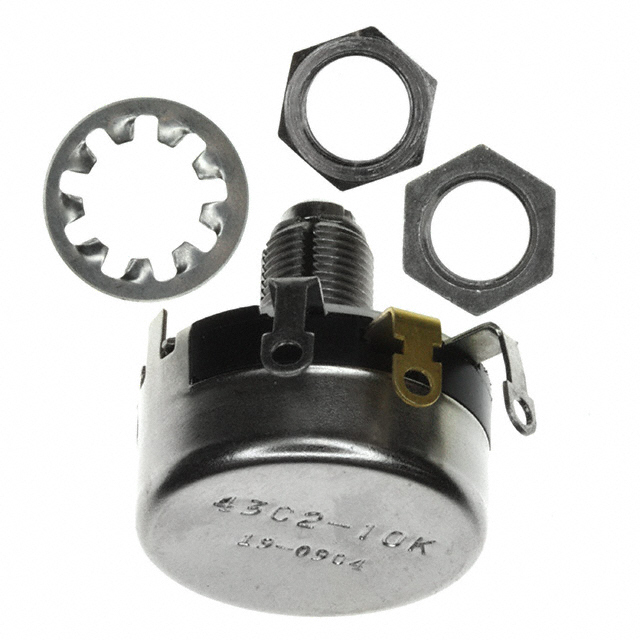

The Honeywell 43C210K is a 10k Ohm, 2W wirewound linear potentiometer designed for panel mount applications with a 1-turn rotation and solder lug termination. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain design continuity and ensure supply chain availability for new production and maintenance applications.

Substiute Parts

43C210K

Honeywell Sensing and Productivity SolutionsIn Stock: 76943C210K Datasheet

Current PartRFQ

RHL10KE

OhmiteIn Stock: 785RHL10KE Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Honeywell 43C210K is based on the following critical parameters that must remain constant or be exceeded:

Mandatory Matching Parameters:

• Resistance value: 10k Ohm
• Taper type: Linear
• Number of turns: 1
• Resistive material: Wirewound
• Termination style: Solder Lug
• Mounting type: Panel Mount
• Bushing thread: 3/8-32
• Rotation angle: 300°

Allowable Variation Parameters:

• Power rating: Substitute must equal or exceed 2W
• Tolerance: Substitute may differ from ±5%
• Body diameter: Substitute may differ if mechanical fit permits
• Actuator length: Substitute may differ if panel clearance permits
• Product status: Active status preferred for obsolete parts

The Ohmite RHL10KE meets all mandatory matching parameters and exceeds the power rating requirement at 25W, qualifying it as a direct functional substitute.

Parameter Comparison

Engineering Selection Recommendations

The Ohmite RHL10KE is the qualified substitute for the obsolete Honeywell 43C210K based on the following engineering criteria:

Functional Equivalence: All critical electrical and mechanical parameters match or exceed the original specification. The 10k Ohm resistance, linear taper, 1-turn configuration, wirewound construction, and solder lug termination are identical. The 300° rotation angle and 3/8-32 bushing thread ensure mechanical compatibility with existing panel mount installations.

Power Rating Enhancement: The RHL10KE provides 25W power handling versus the original 2W rating. This represents a 12.5× increase in thermal capacity, providing superior margin for applications operating at or near the original power specification.

Compliance Status: Both components maintain RoHS compliance. The RHL10KE carries ROHS3 certification, meeting current regulatory requirements. The Ohmite part is currently in active production status, ensuring long-term supply availability compared to the obsolete Honeywell part.

Physical Considerations: The RHL10KE exhibits a larger body diameter (1.560" versus 1.126") and longer actuator (0.750" versus 0.625"). Panel cutout and clearance verification is required during integration to confirm mechanical fit within the target application enclosure.

Tolerance Consideration: The RHL10KE tolerance specification is ±10% compared to the original ±5%. Applications requiring tighter resistance tolerance control should evaluate this parameter against circuit performance requirements.

Frequently Asked Questions (FAQ)

Q: Can the Ohmite RHL10KE directly replace the Honeywell 43C210K without circuit modification?

A: Electrical substitution is direct. The 10k Ohm resistance, linear taper, and 1-turn configuration are identical. No circuit redesign is required. Physical panel integration requires verification of body diameter and actuator length clearance within the enclosure.

Q: Why does the substitute part have a higher power rating?

A: The RHL10KE is rated for 25W versus the original 2W. Higher power rating indicates greater thermal dissipation capability and does not negatively affect operation in lower-power applications. The component will operate safely at or below the original 2W specification.

Q: What is the impact of the ±10% tolerance on the RHL10KE versus the ±5% tolerance of the original?

A: The RHL10KE tolerance is wider by a factor of 2. For applications where resistance accuracy is critical to circuit performance, tolerance stack analysis should be performed. For general potentiometer applications, ±10% tolerance is within standard industrial practice.

Q: Are there mechanical fit concerns with the larger body diameter?

A: The RHL10KE body diameter is 1.560" compared to 1.126" for the original. Panel cutout dimensions and surrounding component clearance must be verified. The identical 3/8-32 bushing thread and 0.250" actuator diameter ensure electrical connection compatibility.

Q: Is the RHL10KE available in the same packaging as the original?

A: The RHL10KE is supplied in bulk packaging. The original Honeywell part packaging specification was not provided in the technical data. Packaging requirements should be confirmed with the supplier for production quantities.

Q: What is the compliance status for both parts?

A: The Honeywell 43C210K is RoHS Compliant. The Ohmite RHL10KE is ROHS3 Compliant, meeting current regulatory standards. Both parts are REACH Unaffected and carry EAR99 ECCN classification.

Q: Why is the original Honeywell part obsolete?

A: Product status is determined by manufacturer production decisions. The Honeywell 43 series has been discontinued. The Ohmite RHL10KE remains in active production, providing supply continuity for new designs and maintenance applications.
