Honeywell 43C1100 Equivalent & Substitute Parts

Part Overview

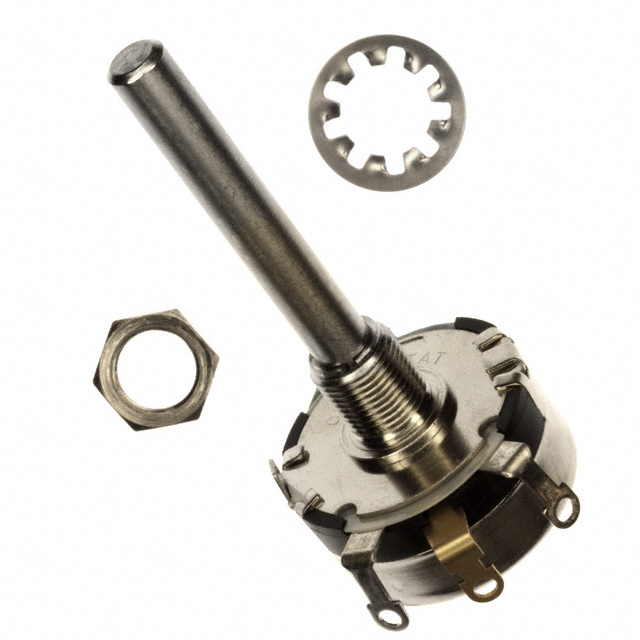

The Honeywell 43C1100 is a 100 Ohm, 2W wirewound linear potentiometer designed for panel mount applications with a 1-turn rotation and solder lug termination. This component is classified as obsolete, making equivalent substitute parts necessary for ongoing production and maintenance applications. The 43C1100 series potentiometer is commonly used in industrial control systems, measurement instrumentation, and audio equipment requiring precise linear resistance adjustment.

Substiute Parts

43C1100

Honeywell Sensing and Productivity SolutionsIn Stock: 119843C1100 Datasheet

Current PartRFQ

026TB32R101B1A1

CTS ElectrocomponentsIn Stock: 6225026TB32R101B1A1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Honeywell 43C1100 is determined by the following critical parameters:

Core Compatibility Parameters:

• Resistance value: 100 Ohms (exact match required)
• Taper type: Linear (functional equivalence requirement)
• Number of turns: 1 (operational characteristic)
• Resistive material: Wirewound (performance characteristic)
• Termination style: Solder Lug (assembly compatibility)
• Mounting type: Panel Mount (mechanical fit)
• Bushing thread: 3/8-32 (mechanical interface)
• Rotation angle: 300° (operational range)
• Actuator diameter: 0.250" (6.35mm) (mechanical fit)

Allowable Variation Parameters:

• Power rating: May exceed the original 2W specification (5W substitute acceptable for higher power dissipation capability)
• Tolerance: May differ from ±5% (±20% substitute acceptable for applications not requiring tight tolerance control)
• Body diameter: Minor variation acceptable if mounting interface remains compatible
• Actuator length: Variation acceptable if panel clearance permits

The CTS Electrocomponents 026TB32R101B1A1 meets all core compatibility requirements while providing enhanced power handling capability.

Parameter Comparison

Engineering Selection Recommendations

The CTS Electrocomponents 026TB32R101B1A1 is the qualified substitute for the obsolete Honeywell 43C1100 based on the following engineering criteria:

Functional Equivalence: Both components share identical resistance value (100 Ohms), taper type (Linear), number of turns (1), and mechanical interface specifications (3/8-32 bushing thread, 0.250" actuator diameter, 300° rotation). These parameters ensure direct functional replacement in existing circuit designs and mechanical assemblies.

Power Handling Enhancement: The CTS substitute provides 5W power rating compared to the original 2W specification. This increased capability provides additional thermal margin and is suitable for applications originally designed for the 43C1100, as the substitute can handle the original power requirements without derating.

Compliance Status: The CTS 026TB32R101B1A1 maintains RoHS3 compliance and is classified as an active product with current manufacturing support. The Honeywell 43C1100 is obsolete with no ongoing production.

Tolerance Consideration: The CTS substitute specifies ±20% tolerance versus the original ±5%. Applications requiring tighter tolerance control should evaluate circuit-level impact before substitution.

Availability: The CTS substitute maintains active inventory status (6177 Pcs in stock) compared to the limited remaining stock of the obsolete Honeywell component (1091 Pcs).

Frequently Asked Questions (FAQ)

Q: Can the CTS 026TB32R101B1A1 directly replace the Honeywell 43C1100 in existing designs?

A: Yes. Both components share identical electrical specifications (100 Ohm, linear taper, 1-turn wirewound), mechanical interface (3/8-32 bushing thread, 0.250" actuator diameter), and termination style (solder lug). The mechanical mounting and electrical connections are directly compatible.

Q: What is the impact of the higher 5W power rating on the substitute?

A: The increased power rating provides additional thermal capability and does not negatively impact performance. Applications originally designed for 2W operation will function within the thermal envelope of the 5W substitute. The higher rating provides design margin for future applications.

Q: Does the ±20% tolerance of the CTS substitute affect circuit performance?

A: Tolerance impact depends on circuit application. For applications where the 43C1100's ±5% tolerance was critical to circuit function, the ±20% tolerance of the substitute must be evaluated. For general adjustment and control applications, the wider tolerance is typically acceptable. Circuit-level analysis is required for precision measurement applications.

Q: Are the physical dimensions compatible for panel mounting?

A: Yes. Both components use identical 3/8-32 bushing thread specifications and 0.250" (6.35mm) actuator diameter. The CTS substitute body diameter is 0.937" (23.80mm) compared to the original 1.126" (28.60mm). Panel cutout dimensions should be verified for the substitute, though the bushing thread interface remains identical.

Q: What is the actuator length difference between the two components?

A: The CTS substitute actuator length is 1.000" (25.40mm) compared to the original 2.000" (50.80mm). This difference affects panel clearance and knob selection. Verify available panel depth and knob compatibility before substitution.

Q: Are both components RoHS compliant?

A: Yes. The Honeywell 43C1100 is RoHS Compliant. The CTS 026TB32R101B1A1 is ROHS3 Compliant, which represents an updated compliance standard. Both meet RoHS requirements for lead-free manufacturing.

Q: What is the primary reason for substitution?

A: The Honeywell 43C1100 is classified as obsolete with no ongoing production. The CTS 026TB32R101B1A1 is an active product with current manufacturing support and available inventory, making it the appropriate long-term solution for new production and maintenance applications.
