VCC 4370 LED Standoff Spacer: Equivalent & Substitute Parts

Part Overview

The VCC 4370 is a T1 3/4 LED standoff spacer designed for panel-mounted lens applications. Manufactured from polycarbonate, this component provides mechanical support and positioning for LED assemblies with a standoff length of 0.127" (3.23mm). The 4370 is classified as obsolete, making identification of compatible substitute parts essential for ongoing production and maintenance applications. Substitute parts must maintain functional equivalence in mechanical positioning, material compatibility, and regulatory compliance while accommodating the transition from obsolete inventory.

Substiute Parts

4370

Visual Communications Company - VCCIn Stock: 10864370 Datasheet

Current PartRFQ

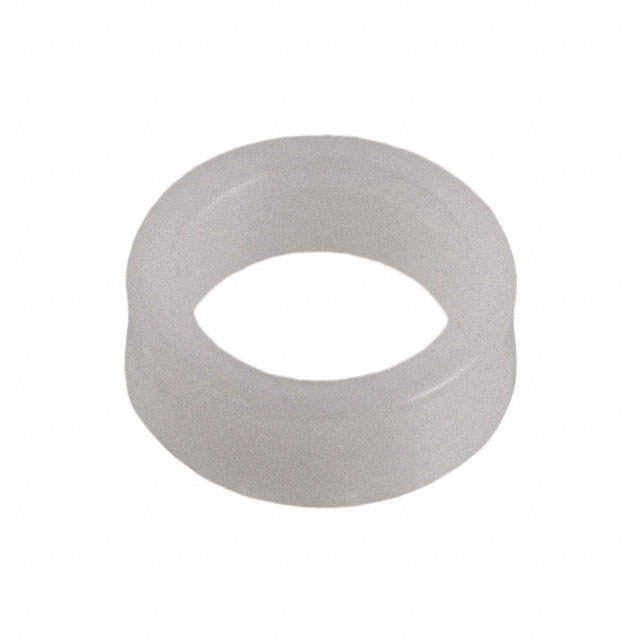

SPC_125

Visual Communications Company - VCCIn Stock: 5711SPC_125 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute identification for the VCC 4370 is based on the following criteria:

Primary Substitution Logic:

• Functional Category: Both the main part (4370) and substitute part (SPC_125) are LED standoff spacers designed for panel-mounted applications
• LED Compatibility: The 4370 is specified for T1 3/4 LED form factors; the SPC_125 is a general LED standoff without LED type restriction, allowing broader compatibility
• Standoff Length Tolerance: The 4370 provides 0.127" (3.23mm) standoff length; the SPC_125 provides 0.120" (3.05mm). The difference of 0.007" (0.18mm) falls within typical mechanical tolerance ranges for panel-mounted spacer applications
• Material Compatibility: The 4370 uses polycarbonate; the SPC_125 uses polypropylene. Both materials provide adequate mechanical support and thermal stability for LED standoff applications
• Regulatory Compliance: Both parts are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements
• Moisture Sensitivity: The 4370 has MSL 1 (unlimited); the SPC_125 is not applicable for MSL, indicating no moisture sensitivity concerns

Key Parameters Determining Substitution:

1. Standoff length within 0.007" tolerance
2. Material compatibility (polycarbonate or polypropylene)
3. ROHS3 compliance
4. REACH unaffected status
5. LED form factor compatibility (T1 3/4 or general LED standoff)

Parameter Comparison

Engineering Selection Recommendations

Substitution Feasibility:

The VCC SPC_125 is a valid substitute for the VCC 4370 based on the following engineering criteria:

1. Regulatory Compliance: Both parts maintain ROHS3 compliance and REACH unaffected status, satisfying current regulatory requirements for electronic component procurement and assembly.

2. Functional Equivalence: Both parts serve identical functional roles as LED standoff spacers for panel-mounted applications. The SPC_125 is actively manufactured, whereas the 4370 is obsolete, making the SPC_125 the appropriate choice for new production and long-term supply continuity.

3. Dimensional Compatibility: The standoff length difference of 0.007" (0.18mm) between the 4370 (0.127") and SPC_125 (0.120") is within standard mechanical tolerances for panel-mounted spacer applications and does not compromise functional performance.

4. Material Transition: The change from polycarbonate (4370) to polypropylene (SPC_125) is acceptable for standoff spacer applications. Both materials provide adequate mechanical rigidity and thermal stability for LED mounting. Polypropylene offers equivalent performance in this non-critical thermal or load-bearing application.

5. Supply Chain Continuity: With 5662 pieces in stock, the SPC_125 provides superior availability compared to the obsolete 4370, supporting both immediate requirements and future production planning.

Selection Criteria:

• Use SPC_125 for new designs and production transitions
• Use remaining 4370 inventory for legacy system maintenance only
• Verify mechanical fit in existing panel mounting fixtures before full production transition

Frequently Asked Questions (FAQ)

Q1: Can the SPC_125 directly replace the 4370 in existing assemblies?

A: The SPC_125 is mechanically compatible with the 4370 for panel-mounted LED applications. The 0.007" (0.18mm) difference in standoff length falls within standard mechanical tolerances. Verify that the reduced length does not affect panel clearance or component positioning in your specific assembly. Both parts are ROHS3 compliant and REACH unaffected.

Q2: What is the significance of the material change from polycarbonate to polypropylene?

A: For LED standoff spacer applications, both polycarbonate and polypropylene provide adequate mechanical support and thermal stability. Polypropylene is a standard material for LED standoff spacers and does not compromise performance in non-critical thermal or load-bearing applications. The material change is acceptable for this component category.

Q3: Why is the 4370 classified as obsolete?

A: The 4370 has reached end-of-life status with the manufacturer. The SPC_125 is the active equivalent part, offering the same functional performance with ongoing manufacturing support and superior inventory availability (5662 pieces versus 1026 pieces).

Q4: Are there any regulatory differences between the 4370 and SPC_125?

A: No. Both parts are ROHS3 compliant and REACH unaffected. There are no regulatory barriers to substitution.

Q5: What is the MSL difference between the two parts, and does it matter?

A: The 4370 has MSL 1 (unlimited moisture sensitivity); the SPC_125 is not applicable for MSL. This indicates that the SPC_125 has no moisture sensitivity concerns. For standoff spacer applications, this difference does not affect performance or handling requirements.

Q6: Can the SPC_125 be used in T1 3/4 LED applications?

A: Yes. The SPC_125 is a general LED standoff spacer without LED type restrictions. It is compatible with T1 3/4 LED form factors and other standard LED packages.

Q7: What packaging differences exist between the two parts?

A: The 4370 is packaged as "-" (not specified); the SPC_125 is packaged in bulk. Verify that bulk packaging meets your production and inventory management requirements.

Q8: Should I test the SPC_125 before full production transition?

A: Conduct mechanical fit verification in your existing panel mounting fixtures to confirm that the 0.120" standoff length accommodates your design requirements. This is standard engineering practice for component substitution.
