Equivalent & Substitute Parts for VCC 4332 Lens Cap

Part Overview

The VCC 4332 is a clear lens cap with snap-in mounting designed for general-purpose LED applications. It features a round lens with flat top geometry and wide optical pattern characteristics. The product is classified as obsolete, necessitating identification of active equivalent components to maintain supply chain continuity for applications requiring this lens cap specification.

Substiute Parts

4332

Visual Communications Company - VCCIn Stock: 9924332 Datasheet

Current PartRFQ

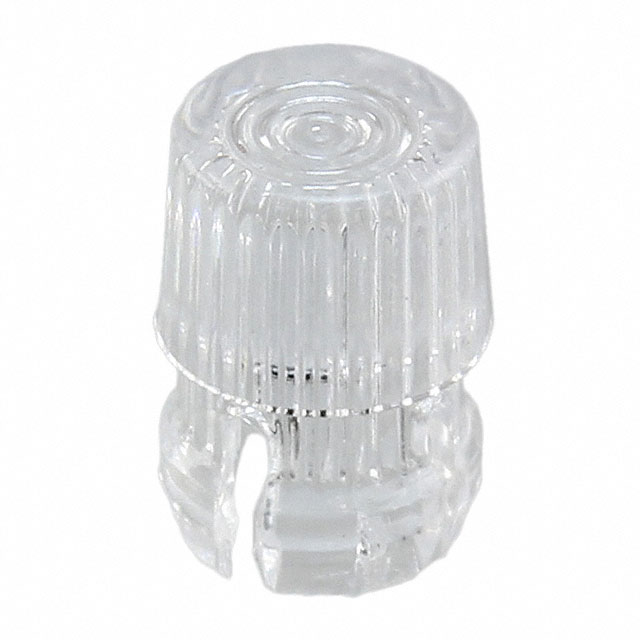

SML_190_CTP

Visual Communications Company - VCCIn Stock: 21178SML_190_CTP Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the VCC 4332 is based on the following critical parameters that must align between the main part and substitute components:

Primary Compatibility Criteria:

• Lens cap type classification
• Clear color specification
• Polycarbonate material composition
• Snap-in mounting capability
• Round lens geometry with flat top configuration
• Lens diameter within acceptable tolerance range (4.83mm reference)
• ROHS3 compliance and REACH unaffected status

The substitute part SML_190_CTP meets these core requirements while offering the advantage of active product status and higher inventory availability. The optical pattern differs (Fresnel Ring versus Wide), and the mounting type includes panel mount capability in addition to snap-in functionality. The lens diameter is 4.9mm, representing a 0.07mm variance from the original specification.

Parameter Comparison

Engineering Selection Recommendations

The SML_190_CTP serves as the active equivalent for the obsolete VCC 4332 lens cap. Both components maintain ROHS3 compliance and REACH unaffected status, satisfying regulatory requirements for current procurement.

The SML_190_CTP is manufactured by the same supplier (Visual Communications Company - VCC) and shares identical material composition, lens geometry, and color specification. The component is currently in active production status with substantial inventory availability (21,121 pieces), ensuring supply chain reliability.

The lens diameter variance of 0.07mm (4.9mm versus 4.83mm) falls within standard mechanical tolerances for snap-in lens cap applications. The SML_190_CTP provides expanded mounting flexibility through dual panel mount and snap-in capability, offering enhanced application versatility compared to the original snap-in-only configuration.

The optical pattern difference (Fresnel Ring versus Wide) represents a functional distinction that must be evaluated against specific application requirements regarding light distribution characteristics.

Frequently Asked Questions (FAQ)

Q: Can the SML_190_CTP directly replace the VCC 4332 in existing assemblies?

A: The SML_190_CTP is mechanically and electrically compatible with applications designed for the VCC 4332. Both components feature identical snap-in mounting, round flat-top lens geometry, and polycarbonate construction. The 0.07mm lens diameter difference is within standard mechanical tolerances for this component category. Optical pattern differences must be evaluated against specific application light distribution requirements.

Q: What is the significance of the optical pattern difference between Wide and Fresnel Ring?

A: The optical pattern determines light distribution characteristics. The VCC 4332 features a Wide pattern, while the SML_190_CTP features a Fresnel Ring pattern. These patterns produce different viewing angle and light diffusion characteristics. Application-specific optical requirements must be confirmed before substitution.

Q: Why is the VCC 4332 classified as obsolete?

A: The VCC 4332 is no longer in active production. The SML_190_CTP represents the current active equivalent from the same manufacturer, offering improved supply chain availability and continued regulatory compliance.

Q: Are there packaging differences between these components?

A: The VCC 4332 is specified with dash packaging notation, while the SML_190_CTP is supplied in bulk packaging. Packaging configuration may affect procurement quantities and handling procedures.

Q: Do both components meet current regulatory requirements?

A: Both the VCC 4332 and SML_190_CTP are ROHS3 compliant and REACH unaffected, satisfying current regulatory standards for electronic component procurement.
