SCHURTER 4301.5002 AC Power Connector - Equivalent & Substitute Parts

Part Overview

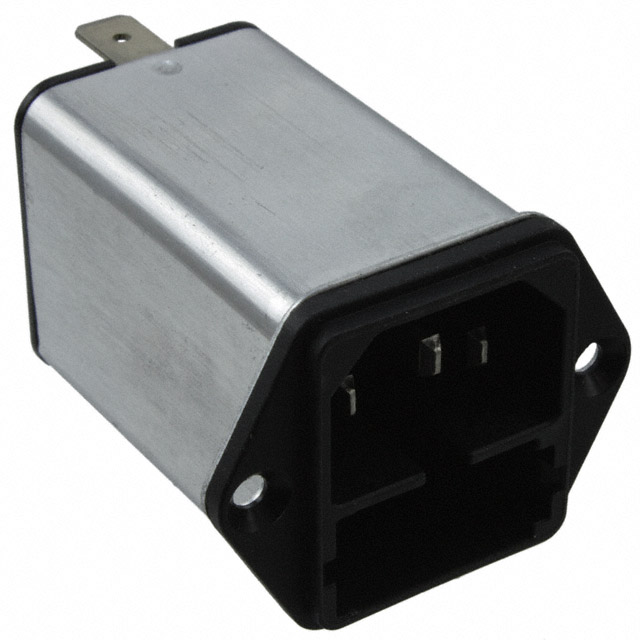

The SCHURTER 4301.5002 is an IEC 320-C14 power entry connector receptacle module designed for panel-mount applications. This filtered power inlet accommodates male blades and integrates EMI/RFI filtering for commercial applications. The connector is actively produced and maintains full compliance with international standards including CCC, cULus, and ENEC certifications. Substitute parts are identified when equivalent electrical and mechanical specifications are required for design flexibility, inventory management, or regional availability considerations.

Substiute Parts

4301.5002

SCHURTER Inc.In Stock: 11654301.5002 Datasheet

Current PartRFQ

4301.5204

SCHURTER Inc.In Stock: 11724301.5204 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for IEC 320-C14 power entry connectors is determined by strict equivalence across electrical and mechanical parameters. The following criteria establish substitutability:

Electrical Parameters: Current rating (2A), voltage rating (250VAC), and connector style (IEC 320-C14) must be identical. Filter type classification must match or exceed the original specification.

Mechanical Parameters: Connector type (Receptacle, Male Blades - Module), mounting configuration (Panel Mount, Flange), termination method (Quick Connect - 0.250"), and panel cutout dimensions (29.00mm x 33.00mm) must be identical.

Compliance Parameters: Material flammability rating (UL94 V-0), ingress protection rating (IP40), and approval agencies (CCC, cULus, ENEC) must be maintained.

Series Designation: Both parts belong to the SCHURTER KFA series and maintain Active product status.

Parameter Comparison

Engineering Selection Recommendations

The SCHURTER 4301.5204 is a direct substitute for the 4301.5002 based on complete electrical and mechanical equivalence. Both parts maintain identical current and voltage ratings, connector geometry, panel mounting specifications, and termination methods. The filter type designation for 4301.5204 includes Medical application classification in addition to Commercial, which does not restrict its use in Commercial-only applications. Both parts carry identical compliance certifications (CCC, cULus, ENEC) and material flammability ratings (UL94 V-0). Selection between these parts may be based on inventory availability, lead time, or regional sourcing requirements, as no technical differentiation exists for standard commercial power entry applications.

Frequently Asked Questions (FAQ)

Q: Can 4301.5204 be used as a direct replacement for 4301.5002 in existing designs?

A: Yes. Both parts are electrically and mechanically equivalent. They share identical current ratings (2A), voltage ratings (250VAC), connector styles (IEC 320-C14), mounting configurations (Panel Mount, Flange), and panel cutout dimensions (29.00mm x 33.00mm). No design modifications are required.

Q: What is the difference between the filter types listed for these parts?

A: The 4301.5002 specifies filter type as "Filtered (EMI, RFI) - Commercial." The 4301.5204 specifies "Filtered (EMI, RFI) - Commercial, Medical." Both parts meet Commercial application requirements. The Medical classification for 4301.5204 indicates additional qualification but does not restrict its use in Commercial applications.

Q: Are the panel cutout dimensions identical for both parts?

A: Yes. Both parts require a rectangular panel cutout of 29.00mm x 33.00mm. Panel modifications are not necessary when substituting between these parts.

Q: Do both parts support the same termination method?

A: Yes. Both parts use Quick Connect termination with 0.250" (6.3mm) blade spacing. Wiring harnesses and connector assemblies are compatible.

Q: Are the compliance certifications the same?

A: Yes. Both parts carry identical approvals: CCC, cULus, and ENEC. Both are ROHS3 compliant and maintain UL94 V-0 material flammability ratings.

Q: What is the current inventory status for these parts?

A: The 4301.5002 has 1101 pieces in stock. The 4301.5204 has 1071 pieces in stock. Both are listed as Active products.
