SCHURTER 4300.0098 IEC 320-C8 Power Entry Connector Receptacle — Equivalent & Substitute Parts

Part Overview

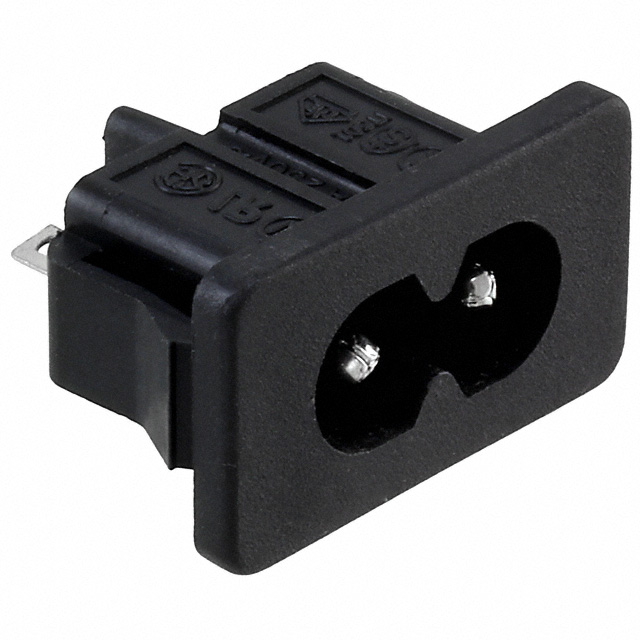

The SCHURTER 4300.0098 is a power entry connector receptacle designed for IEC 320-C8 applications. This component features male pins, non-polarized configuration, and panel mount snap-in installation. The part is classified as obsolete, making identification of equivalent and substitute components essential for ongoing system support and new design implementations.

Key Parameters

Parameter	Value
Connector Style	IEC 320-C8, Non-Polarized
Connector Type	Receptacle, Male Pins
Current Rating - Appliance Inlet	2.5A
Voltage Rating - Appliance Inlet	250VAC
Number of Positions	2
Mounting Type	Panel Mount, Snap-In
Termination	Solder Tabs
Panel Cutout Dimensions	Rectangular - 24.50mm x 12.50mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the SCHURTER 4300.0098 is determined by the following critical parameters:

Connector style and type: IEC 320-C8, non-polarized receptacle with male pins
Electrical ratings: 2.5A current and 250VAC voltage
Mechanical interface: Panel mount, snap-in configuration with solder termination
Physical compatibility: Panel cutout dimensions and thickness tolerance
Regulatory compliance: RoHS3 compliance and applicable approval agencies

The substitute parts listed below satisfy these core requirements and maintain functional equivalence within the specified electrical and mechanical constraints.

Parameter Comparison

Parameter	SCHURTER 4300.0098	SCHURTER 4300.0102	Qualtek 771W-X2/01
Manufacturer	SCHURTER Inc.	SCHURTER Inc.	Qualtek
Product Status	Obsolete	Active	Active
Connector Style	IEC 320-C8, Non-Polarized	IEC 320-C8, Non-Polarized	IEC 320-C8, Non-Polarized
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins	Receptacle, Male Pins
Current Rating - Appliance Inlet	2.5A	2.5A	2.5A
Voltage Rating - Appliance Inlet	250VAC	250V	250VAC
Number of Positions	2	2	2
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In	Panel Mount, Snap-In
Termination	Solder Tabs	Solder	Solder Tabs
Panel Cutout Dimensions	Rectangular - 24.50mm x 12.50mm	Not specified	Rectangular - 24.50mm x 12.50mm
Panel Thickness	0.031" ~ 0.063" (0.79mm ~ 1.60mm)	0.024" ~ 0.079" (0.60mm ~ 2.00mm)	0.024" ~ 0.059" (0.60mm ~ 1.50mm)
Material Flammability Rating	UL94 V-0	UL94 V-0	Not specified
Ingress Protection	IP40	IP20	Not specified
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Approval Agency	CCC, CSA, ENEC, UL	CCC, UL, VDE	CCC, CSA, UL, VDE

Engineering Selection Recommendations

Both substitute parts maintain active product status and full RoHS3 compliance, providing long-term availability and regulatory alignment.

SCHURTER 4300.0102 is a direct manufacturer alternative within the SCHURTER product line. It shares identical electrical ratings and mechanical mounting configuration. The primary difference is panel thickness tolerance, which extends to 2.00mm maximum compared to 1.60mm for the original part. This wider tolerance accommodates a broader range of panel materials and thicknesses. Ingress protection is rated IP20 versus IP40 on the original part. This part carries CCC, UL, and VDE approvals.

Qualtek 771W-X2/01 provides cross-manufacturer equivalence with identical electrical specifications and panel cutout dimensions. Panel thickness tolerance ranges from 0.60mm to 1.50mm, which is narrower than the original part. This part carries CCC, CSA, UL, and VDE approvals, matching the original certification scope. Termination is specified as solder tabs, consistent with the original design.

Frequently Asked Questions (FAQ)

Q: Can SCHURTER 4300.0102 be used as a direct replacement for SCHURTER 4300.0098?

A: Yes. Both parts share identical connector style, electrical ratings (2.5A, 250V), mounting configuration, and termination method. The extended panel thickness tolerance of 4300.0102 (0.60mm to 2.00mm) accommodates the original specification range (0.79mm to 1.60mm). Ingress protection differs at IP20 versus IP40; application requirements determine if this difference is acceptable.

Q: What are the key differences between SCHURTER 4300.0102 and Qualtek 771W-X2/01?

A: Both parts meet identical electrical and mechanical requirements. SCHURTER 4300.0102 offers IP20 ingress protection and panel thickness tolerance to 2.00mm. Qualtek 771W-X2/01 provides panel thickness tolerance to 1.50mm and does not specify ingress protection rating. Approval agencies differ slightly: SCHURTER includes VDE certification, while Qualtek includes CSA certification in addition to shared CCC and UL approvals.

Q: Are panel cutout dimensions identical across all three parts?

A: SCHURTER 4300.0098 and Qualtek 771W-X2/01 specify identical rectangular cutout dimensions of 24.50mm x 12.50mm. SCHURTER 4300.0102 does not specify panel cutout dimensions in the provided data. Mechanical compatibility should be confirmed for this part if panel cutout dimensions are critical to the application.

Q: What is the significance of the panel thickness tolerance differences?

A: Panel thickness tolerance determines the range of panel materials that can accommodate the snap-in mounting mechanism. SCHURTER 4300.0102 accepts panels from 0.60mm to 2.00mm, providing the widest compatibility range. SCHURTER 4300.0098 accepts 0.79mm to 1.60mm, and Qualtek 771W-X2/01 accepts 0.60mm to 1.50mm. Application panel thickness must fall within the selected part's tolerance range.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. SCHURTER 4300.0098, SCHURTER 4300.0102, and Qualtek 771W-X2/01 are all ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements.
