SCHURTER 4300.0097 AC Power Connector - Equivalent & Substitute Parts

Part Overview

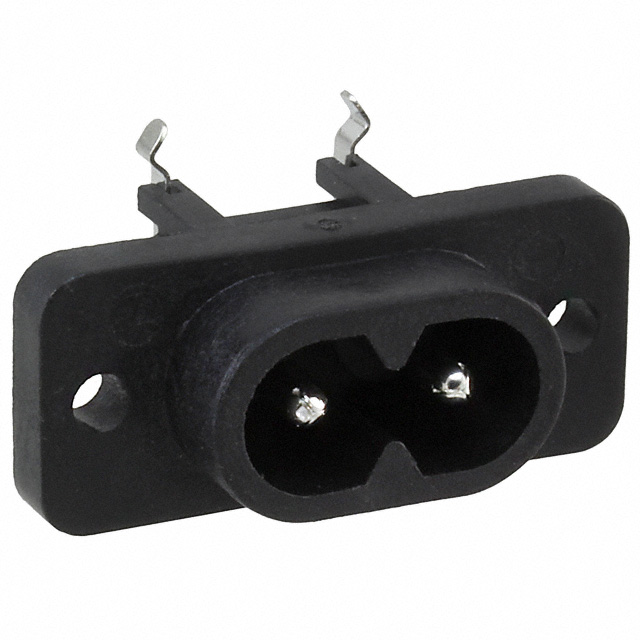

The SCHURTER 4300.0097 is an IEC 320-C8 power entry connector receptacle designed for panel-mount applications with through-hole, right-angle termination. This component functions as a non-polarized male-pin receptacle rated for 2.5A at 250VAC in commercial, unfiltered applications.

The 4300.0097 carries an obsolete product status. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain reliability, and support ongoing production or maintenance requirements for equipment utilizing this connector.

Substiute Parts

4300.0097

SCHURTER Inc.In Stock: 9074300.0097 Datasheet

Current PartRFQ

6160.0015

SCHURTER Inc.In Stock: 11966160.0015 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The SCHURTER 6160.0015 qualifies as a direct substitute for the 4300.0097 based on the following critical parameters:

• Connector Interface: Both parts implement IEC 320-C8 non-polarized receptacle configuration with male pins
• Electrical Ratings: Identical current (2.5A) and voltage (250VAC) specifications
• Mechanical Configuration: Both feature panel-mount, flange-based design with through-hole, right-angle solder termination
• Position Count: Both accommodate 2 positions
• Filter Classification: Both are unfiltered commercial-grade connectors
• Compliance: Both meet UL94 V-0 flammability and ROHS3 requirements

Differences in panel cutout dimensions, panel thickness tolerance, ingress protection rating, and approval agency certifications do not preclude substitution when mechanical and electrical compatibility with the host equipment is verified.

Parameter Comparison

Engineering Selection Recommendations

The SCHURTER 6160.0015 is the qualified substitute for the obsolete 4300.0097. Selection of the 6160.0015 is supported by:

• Active Product Status: The 6160.0015 maintains active production status, ensuring ongoing availability and supply chain stability
• Electrical Equivalence: Identical current and voltage ratings guarantee functional compatibility in the same circuit applications
• Mechanical Compatibility: Both parts share the same connector interface, mounting methodology, and solder termination approach
• Regulatory Compliance: Both parts satisfy UL94 V-0 flammability requirements and ROHS3 compliance mandates

When integrating the 6160.0015 into existing designs, verify that the panel cutout dimensions and thickness tolerances align with the host equipment's mechanical specifications. The 6160.0015 features a rectangular cutout (20.40mm x 11.60mm) and accommodates panel thickness of 0.217" (5.50mm), which differ from the original 4300.0097 specifications.

Frequently Asked Questions (FAQ)

Q: Can the 6160.0015 directly replace the 4300.0097 in existing equipment?

A: The 6160.0015 provides electrical and functional equivalence. However, panel cutout geometry and thickness tolerance differences require mechanical verification. If the host equipment's panel is designed for the oval 21.00mm x 12.40mm cutout of the 4300.0097, mechanical modification or adapter consideration may be necessary to accommodate the rectangular 20.40mm x 11.60mm cutout of the 6160.0015.

Q: Are the electrical ratings identical between these parts?

A: Yes. Both the 4300.0097 and 6160.0015 are rated for 2.5A at 250VAC with identical IEC 320-C8 connector specifications and 2-position configuration.

Q: What is the significance of the product status difference?

A: The 4300.0097 is obsolete, meaning SCHURTER no longer manufactures or supports this part. The 6160.0015 maintains active status, ensuring continued availability, technical support, and compliance with current manufacturing standards.

Q: Do the ingress protection ratings affect substitution suitability?

A: The 4300.0097 provides IP40 protection while the 6160.0015 provides IP20 protection. This difference reflects environmental sealing capability. For applications requiring IP40-level environmental protection, the reduced ingress protection of the 6160.0015 must be evaluated against specific equipment operating conditions.

Q: Are there packaging differences between these parts?

A: The 4300.0097 is supplied in standard packaging, while the 6160.0015 is supplied in bulk packaging. This distinction affects procurement and inventory management but does not impact electrical or mechanical performance.
