Equivalent & Substitute Parts for 4282-3-18-D Rectangular Connector Plug Housing

Part Overview

The CNC Tech 4282-3-18-D is an 18-position rectangular connector plug housing with 4.20mm pitch, designed for free-hanging in-line applications. This connector housing accommodates male pin contacts through crimp termination and features a locking ramp fastening mechanism. The part is currently active in production with 901 units in stock.

Substitute parts are necessary when the original manufacturer discontinues production, when alternative sourcing improves lead times or cost efficiency, or when design requirements allow for compatible connector families from different manufacturers. All substitute parts listed maintain electrical and mechanical compatibility through identical or equivalent parameter specifications.

Key Parameters

Parameter	Specification
Connector Type	Plug
Contact Type	Male Pin
Number of Positions	18
Pitch	0.165" (4.20mm)
Number of Rows	2
Row Spacing	0.165" (4.20mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6
Operating Temperature Range	-40°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the 4282-3-18-D is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

Connector Type: Plug
Contact Type: Male Pin
Number of Positions: 18
Pitch: 0.165" (4.20mm)
Number of Rows: 2
Row Spacing: 0.165" (4.20mm)
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Fastening Type: Locking Ramp
Moisture Sensitivity Level: 1 (Unlimited)

All five substitute parts meet these mandatory parameters. Variations in color (White vs. Natural), insulation material composition (PA66 vs. PA), and product status do not affect functional interchangeability in applications where the connector housing performs its specified role.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Connector Type	Positions	Pitch	Rows	Mounting Type	Termination	Fastening	Color	Operating Temp	Product Status	RoHS Status	Inventory
4282-3-18-D	CNC Tech	-	Plug	18	0.165" (4.20mm)	2	Free Hanging (In-Line)	Crimp	Locking Ramp	White	-40°C ~ 105°C	Active	ROHS3	901 Pcs
0039013183	Molex	Mini-Fit Jr 5559	Plug	18	0.165" (4.20mm)	2	Free Hanging (In-Line)	Crimp	Locking Ramp	Natural	-	Active	ROHS3	17213 Pcs
1-1586000-8	TE Connectivity AMP Connectors	VAL-U-LOK	Plug	18	0.165" (4.20mm)	2	Free Hanging (In-Line)	Crimp	Locking Ramp	Natural	-40°C ~ 105°C	Active	RoHS	1211 Pcs
1-1969598-8	TE Connectivity AMP Connectors	VAL-U-LOK	Plug	18	0.165" (4.20mm)	2	Free Hanging (In-Line)	Crimp	Locking Ramp	Natural	-40°C ~ 105°C	Obsolete	ROHS3	1257 Pcs
1-1969604-8	TE Connectivity AMP Connectors	VAL-U-LOK	Plug	18	0.165" (4.20mm)	2	Free Hanging (In-Line)	Crimp	Locking Ramp	Natural	-40°C ~ 105°C	Active	ROHS3	889 Pcs
1-1969612-8	TE Connectivity AMP Connectors	VAL-U-LOK	Plug	18	0.165" (4.20mm)	2	Free Hanging (In-Line)	Crimp	Locking Ramp	Natural	-40°C ~ 105°C	Active	ROHS3	1629 Pcs

Engineering Selection Recommendations

Active Status Parts (Recommended for New Designs):

The following substitute parts carry Active product status and are suitable for new design implementations:

0039013183 (Molex Mini-Fit Jr 5559): Active status with highest inventory availability (17213 units). ROHS3 compliant. Suitable for applications where connector color is not a design constraint.

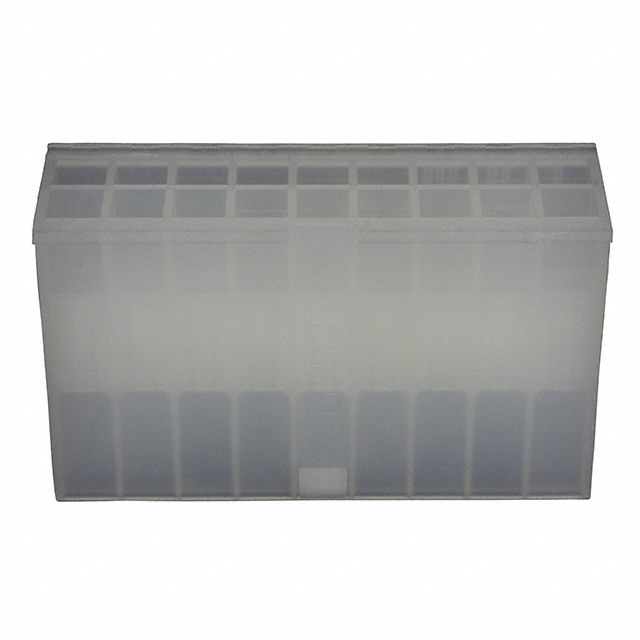

1-1586000-8 (TE Connectivity VAL-U-LOK): Active status with specified operating temperature range (-40°C ~ 105°C). RoHS compliant. Inventory of 1211 units supports production requirements.
1-1969604-8 (TE Connectivity VAL-U-LOK): Active status with ROHS3 compliance and full operating temperature specification. Inventory of 889 units available.
1-1969612-8 (TE Connectivity VAL-U-LOK): Active status with ROHS3 compliance and full operating temperature specification. Highest TE Connectivity inventory at 1629 units.

Obsolete Status Part (Not Recommended for New Designs):

1-1969598-8 (TE Connectivity VAL-U-LOK): Marked as Obsolete. While functionally equivalent and currently in stock (1257 units), this part should not be selected for new product designs due to discontinued production status.

Compliance Considerations:

All active substitute parts maintain ROHS3 compliance or equivalent RoHS compliance. The 4282-3-18-D and all substitute parts are classified as REACH Unaffected or Vendor Undefined, indicating no additional regulatory restrictions on component selection.

Frequently Asked Questions (FAQ)

Q: Can I substitute the 4282-3-18-D with any of the listed parts in existing assemblies?

A: Yes. All listed substitute parts maintain identical electrical and mechanical parameters including connector type, position count, pitch, row configuration, mounting type, termination method, and fastening mechanism. Physical interchangeability is confirmed across all active and obsolete parts listed.

Q: What is the difference between the CNC Tech 4282-3-18-D and the Molex 0039013183?

A: The primary differences are manufacturer and connector color. The CNC Tech part is white; the Molex part is natural. Both are 18-position plug housings with 4.20mm pitch, crimp termination, and locking ramp fastening. The Molex part belongs to the Mini-Fit Jr 5559 series and has significantly higher inventory availability.

Q: Why is the 1-1969598-8 marked as Obsolete?

A: The 1-1969598-8 is classified as Obsolete by TE Connectivity, indicating discontinued production. While functionally equivalent and currently available in inventory, this part should not be selected for new designs. Active alternatives from TE Connectivity include 1-1969604-8 and 1-1969612-8.

Q: Are there operating temperature differences between substitute parts?

A: The 4282-3-18-D specifies -40°C ~ 105°C operating temperature. The Molex 0039013183 does not specify an operating temperature range in the provided data. All TE Connectivity VAL-U-LOK parts (1-1586000-8, 1-1969598-8, 1-1969604-8, 1-1969612-8) specify -40°C ~ 105°C, matching the original part.

Q: Do all substitute parts require the same contact specifications?

A: Yes. All parts are plug housings with male pin contact type and 18 positions. Contact selection and crimping specifications remain identical across all substitutes. The note "Contacts Not Included" applies to all parts listed.

Q: Which substitute part offers the best inventory availability?

A: The Molex 0039013183 offers the highest inventory with 17213 units in stock, compared to 901 units for the original 4282-3-18-D. Among TE Connectivity options, the 1-1969612-8 provides the highest availability at 1629 units.

Q: Are there any compliance or certification differences between the parts?

A: All parts are ROHS3 compliant or RoHS compliant. The 4282-3-18-D and most substitutes are ROHS3 compliant. The 1-1586000-8 is RoHS compliant. All parts have Moisture Sensitivity Level 1 (Unlimited). REACH status is either Unaffected or Vendor Undefined across all parts, indicating no additional regulatory restrictions.
