Honeywell 41SM1 Snap Action Switch SPDT Equivalent & Substitute Parts

Part Overview

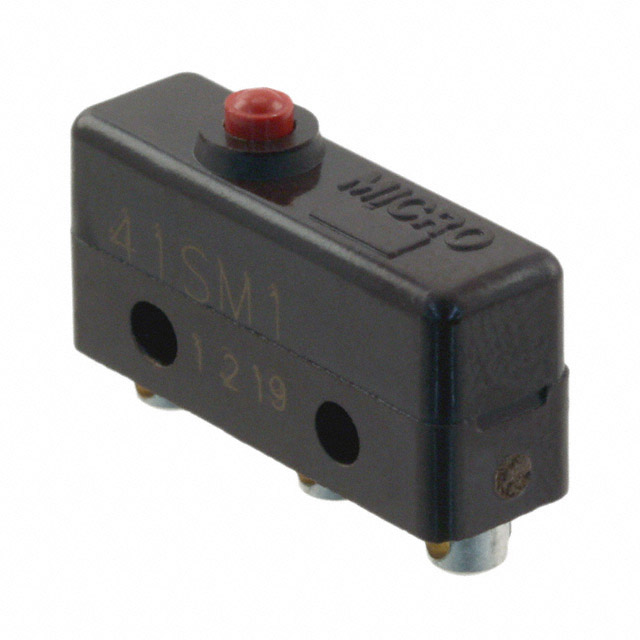

The Honeywell 41SM1 is an active-status snap action switch with SPDT (Single Pole Double Throw) circuit configuration, rated for 11A at 250V AC and 5A at 30V DC. This chassis-mounted switch features a round pin plunger actuator and solder lug termination, designed for momentary on-off applications across industrial and commercial equipment. The part is RoHS compliant and rated for 80,000 mechanical cycles with an operating temperature range of -55°C to 125°C.

Equivalent and substitute parts are identified based on matching circuit topology (SPDT), mounting configuration (chassis mount), actuator type (round pin plunger), termination style (solder lug), and functional classification (snap action, momentary operation). Substitutes from E-Switch's MS0850500 series share the same mechanical interface and electrical circuit structure, though with different electrical ratings and operating force specifications.

Substiute Parts

41SM1

Honeywell Sensing and Productivity SolutionsIn Stock: 93641SM1 Datasheet

Current PartRFQ

MS0850500F060S1A

E-SwitchIn Stock: 1035MS0850500F060S1A Datasheet

SimilarRFQ

MS0850500F080S1A

E-SwitchIn Stock: 1289MS0850500F080S1A Datasheet

SimilarRFQ

MS0850500F250S1A

E-SwitchIn Stock: 1435MS0850500F250S1A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Honeywell 41SM1 is determined by the following critical parameters:

Primary Matching Criteria:

• Circuit configuration: SPDT
• Switch function: On-Mom (momentary operation)
• Actuator type: Round pin plunger
• Mounting type: Chassis mount
• Termination style: Solder lug
• Packaging: Bulk

Secondary Compatibility Factors:

• Mechanical interface dimensions (operating position, pretravel, differential travel, overtravel)
• Operating force and release force ranges
• Electrical ratings (current and voltage capacity)
• Operating temperature range
• Mechanical life cycle rating
• Compliance certifications (RoHS, REACH)

The E-Switch MS0850500 series substitutes (MS0850500F060S1A, MS0850500F080S1A, MS0850500F250S1A) share identical circuit topology, mounting configuration, and mechanical interface characteristics. These parts are differentiated by operating force specifications (60gf, 80gf, and 250gf respectively) and electrical ratings (5A at 125V AC versus the 41SM1's 11A at 250V AC). The substitutes are suitable for applications where the lower electrical ratings and reduced operating temperature range (-25°C to 85°C) are acceptable within system design constraints.

Parameter Comparison

Engineering Selection Recommendations

Electrical Rating Considerations:

The Honeywell 41SM1 operates at 11A/250V AC, while all E-Switch MS0850500 series substitutes are rated for 5A/125V AC. Selection of substitute parts requires confirmation that the application's electrical load does not exceed 5A at 125V AC. Applications requiring the full 11A/250V AC capacity of the 41SM1 cannot use these E-Switch substitutes.

Operating Force Profile:

The 41SM1 specifies 141gf operating force with 28gf release force. E-Switch substitutes offer three operating force options: 60gf (MS0850500F060S1A), 80gf (MS0850500F080S1A), and 250gf (MS0850500F250S1A). Selection depends on the mechanical actuation requirements of the application. The 60gf and 80gf variants provide lighter actuation than the 41SM1, while the 250gf variant requires greater actuation force.

Temperature Range:

The 41SM1 operates across -55°C to 125°C, while E-Switch substitutes operate across -25°C to 85°C. Applications requiring operation below -25°C or above 85°C must retain the 41SM1.

Mechanical Life and Reliability:

The 41SM1 is rated for 80,000 mechanical cycles. E-Switch MS0850500 series parts are rated for 1,000,000 mechanical cycles, providing extended service life in high-cycle applications. E-Switch parts also specify 50,000 electrical life cycles, whereas the 41SM1 does not provide this specification.

Compliance and Certifications:

Both the 41SM1 and E-Switch substitutes are RoHS compliant, MSL 1 (unlimited moisture sensitivity), and classified as EAR99 export control items. E-Switch substitutes carry ROHS3 compliance and REACH Unaffected status. All parts share identical HTSUS classification (8536.50.7000).

Mechanical Interface Compatibility:

Operating position differs slightly: 41SM1 at 0.330" (8.4mm) versus E-Switch at 0.335" (8.5mm). Pretravel also differs: 41SM1 at 0.030" (0.8mm) versus E-Switch at 0.043" (1.1mm). These dimensional variations are within typical mechanical tolerance ranges for chassis-mounted snap action switches and do not preclude physical substitution in standard mounting applications.

Frequently Asked Questions (FAQ)

Q: Can the E-Switch MS0850500 series parts directly replace the Honeywell 41SM1 in all applications?

A: Direct substitution is limited by electrical rating differences. The 41SM1 is rated for 11A/250V AC, while E-Switch substitutes are rated for 5A/125V AC. Substitution is valid only for applications operating at or below 5A and 125V AC. Additionally, the operating temperature range differs: 41SM1 supports -55°C to 125°C, while E-Switch parts support -25°C to 85°C. Applications requiring the full electrical or temperature specifications of the 41SM1 cannot use these substitutes.

Q: What is the difference between the three E-Switch MS0850500 variants?

A: The three E-Switch variants (MS0850500F060S1A, MS0850500F080S1A, MS0850500F250S1A) differ in operating force and release force specifications. MS0850500F060S1A requires 60gf operating force with 25gf release force. MS0850500F080S1A requires 80gf operating force with 25gf release force. MS0850500F250S1A requires 250gf operating force with 50gf release force. All other electrical and mechanical parameters are identical across the three variants. Selection depends on the mechanical actuation force available in the application.

Q: Are there mechanical interface compatibility issues when substituting E-Switch parts for the 41SM1?

A: Minor dimensional differences exist. The 41SM1 operating position is 0.330" (8.4mm) with 0.030" (0.8mm) pretravel, while E-Switch parts specify 0.335" (8.5mm) operating position with 0.043" (1.1mm) pretravel. These differences are within standard mechanical tolerances for snap action switches and do not prevent physical substitution in chassis-mounted applications. However, applications with tight mechanical constraints should verify compatibility with specific equipment designs.

Q: What are the compliance and certification differences between the 41SM1 and E-Switch substitutes?

A: Both the 41SM1 and E-Switch substitutes are RoHS compliant, MSL 1 (unlimited), and EAR99 classified. E-Switch parts carry additional ROHS3 compliance certification and REACH Unaffected status. The 41SM1 does not specify these additional certifications. For applications requiring ROHS3 or REACH compliance, E-Switch substitutes provide documented compliance.

Q: How do the mechanical life ratings compare?

A: The 41SM1 is rated for 80,000 mechanical cycles. E-Switch MS0850500 series parts are rated for 1,000,000 mechanical cycles, providing 12.5 times greater mechanical life. E-Switch parts also specify 50,000 electrical life cycles, a parameter not provided for the 41SM1. For high-cycle applications, E-Switch substitutes offer extended service life.

Q: What inventory availability exists for these parts?

A: The 41SM1 has 920 pieces in stock. E-Switch substitutes have higher inventory levels: MS0850500F060S1A has 997 pieces, MS0850500F080S1A has 1,250 pieces, and MS0850500F250S1A has 1,404 pieces. All parts are available as new original stock in bulk packaging.

Q: Can the 41SM1 be used in applications where E-Switch substitutes are specified?

A: The 41SM1 can be used as an upgrade in applications designed for E-Switch MS0850500 series parts, provided the application's electrical load does not exceed the 41SM1's ratings. The 41SM1 offers higher electrical capacity (11A/250V AC versus 5A/125V AC) and extended operating temperature range (-55°C to 125°C versus -25°C to 85°C). However, the 41SM1 has lower mechanical life (80,000 cycles versus 1,000,000 cycles) and does not provide electrical life specifications.
