TE Connectivity AMP Connectors 415020-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 415020-1 is a coaxial connector adapter designed to convert BNC Plug (Male Pin) to BNC Jack (Female Socket) configurations. This right-angle adapter operates at 75 Ohms impedance and utilizes bayonet lock fastening. The part is classified as obsolete, making identification of equivalent and substitute components necessary for ongoing system maintenance and new design implementations where this connector type is required.

Substiute Parts

415020-1

TE Connectivity AMP ConnectorsIn Stock: 1044415020-1 Datasheet

Current PartRFQ

5415020-1

TE Connectivity AMP ConnectorsIn Stock: 10845415020-1 Datasheet

DirectRFQ

031-9-75

Amphenol RFIn Stock: 1174031-9-75 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 415020-1 is determined by the following critical parameters that must remain consistent across equivalent components:

Mandatory Matching Parameters:

• Adapter Series: BNC to BNC
• Impedance: 75 Ohms
• Fastening Type: Bayonet Lock
• Style: Right Angle
• Adapter Type: Plug to Jack configuration

Functional Equivalence Criteria: Substitute parts must maintain the same electrical impedance (75 Ohms), mechanical interface (BNC bayonet lock), and physical form factor (right-angle mounting). The conversion direction from BNC Plug (Male Pin) to BNC Jack (Female Socket) defines the functional requirement.

Compliance Considerations: While the main part 415020-1 is obsolete and RoHS non-compliant, substitute parts may offer improved compliance status and active product availability. Substitutes identified in this reference maintain the same core electrical and mechanical specifications while potentially offering enhanced regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity AMP Connectors 5415020-1

The 5415020-1 is the direct equivalent to the obsolete 415020-1. This part maintains identical electrical and mechanical specifications while offering active product status and RoHS compliance. The 5415020-1 is manufactured by the same original equipment manufacturer (TE Connectivity AMP Connectors) and provides the same functional performance with improved regulatory compliance. Current inventory availability is 1009 pieces.

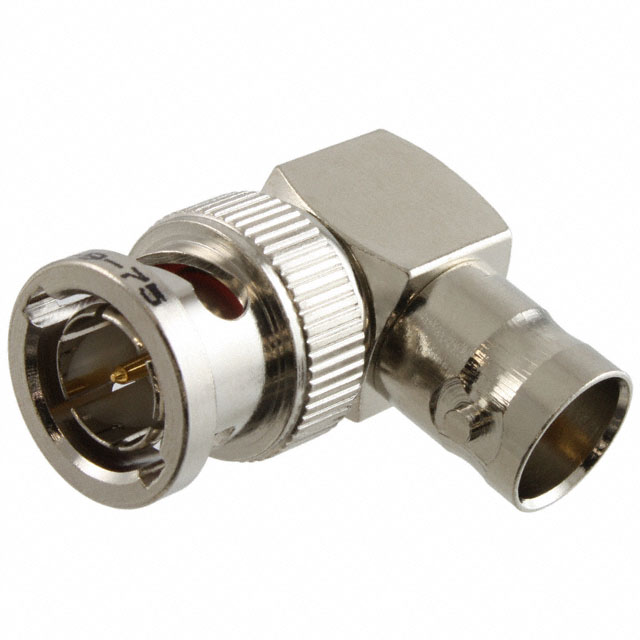

Secondary Substitute: Amphenol RF 031-9-75

The 031-9-75 provides functional equivalence with identical impedance (75 Ohms), adapter series (BNC to BNC), fastening type (Bayonet Lock), and right-angle style. This part is manufactured by Amphenol RF and carries active product status with ROHS3 and REACH compliance. The 031-9-75 specifies maximum frequency of 4 GHz and operating temperature range of -65°C to 165°C. Current inventory availability is 1121 pieces.

Compliance Status:

Both substitute parts offer improved regulatory compliance compared to the obsolete 415020-1. The 5415020-1 provides direct manufacturer continuity, while the 031-9-75 offers cross-manufacturer compatibility with enhanced environmental specifications.

Frequently Asked Questions (FAQ)

Q: Can the 5415020-1 directly replace the obsolete 415020-1?

A: Yes. The 5415020-1 maintains identical electrical impedance (75 Ohms), mechanical interface (BNC bayonet lock), adapter configuration (Plug to Jack), and physical form factor (right-angle). The primary difference is active product status and RoHS compliance.

Q: What is the functional difference between the 5415020-1 and 031-9-75?

A: Both parts provide equivalent BNC adapter functionality at 75 Ohms impedance with right-angle bayonet lock configuration. The 031-9-75 is manufactured by Amphenol RF rather than TE Connectivity and specifies maximum frequency (4 GHz) and operating temperature range (-65°C to 165°C). Material composition differs: the 031-9-75 uses brass body and dielectric material (PTFE) compared to the zinc die cast body and PMP dielectric of the 415020-1 and 5415020-1.

Q: Are there any compatibility concerns when substituting these parts?

A: No compatibility concerns exist for the specified parameters. All three parts maintain the same 75 Ohms impedance, BNC bayonet lock interface, and right-angle mounting configuration. The adapter type (Plug to Jack) and center gender (Female to Male) are identical across all parts.

Q: What is the difference in body material between the substitute parts?

A: The 415020-1 and 5415020-1 use zinc die cast bodies with nickel finish. The 031-9-75 uses a brass body with nickel finish. Both material compositions are suitable for RF coaxial adapter applications at 75 Ohms impedance.

Q: Which substitute part should be selected for new designs?

A: Selection depends on manufacturer preference and supply chain requirements. The 5415020-1 provides direct manufacturer continuity from TE Connectivity AMP Connectors with RoHS compliance. The 031-9-75 provides cross-manufacturer compatibility with specified frequency and temperature operating ranges. Both parts are active products with current inventory availability.

Q: What is the significance of the RoHS compliance difference?

A: The 415020-1 is RoHS non-compliant, while both 5415020-1 (RoHS Compliant) and 031-9-75 (ROHS3 Compliant) meet current regulatory requirements. For applications subject to RoHS regulations, either substitute part is appropriate.

Q: Are the dielectric materials interchangeable?
