TE Connectivity 413879-2 BNC Connector Jack Equivalent & Substitute Parts

Part Overview

The TE Connectivity 413879-2 is a BNC connector jack (female socket) rated for 50 ohms impedance, designed for panel mount through-hole applications with right-angle solder termination. This coaxial RF connector operates across a frequency range up to 4 GHz and is suitable for applications requiring bayonet lock fastening with bulkhead front-side nut mounting. The part is currently active in production status with 864 pieces available in original packaging (tray). Equivalent and substitute parts are identified based on matching electrical specifications, mechanical mounting characteristics, and material composition to ensure functional interchangeability in PCB-based RF circuit designs.

Key Parameters

Parameter	Specification
Connector Style	BNC
Connector Type	Jack, Female Socket
Impedance	50 Ohms
Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut
Contact Termination	Solder
Shield Termination	Solder
Fastening Type	Bayonet Lock
Frequency - Max	4 GHz
Operating Temperature	-55°C ~ 85°C
Voltage Rating	500 V
Mating Cycles	500
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Body Material	Zinc Die Cast
Body Finish	Nickel
Dielectric Material	Polymethylpentene (PMP)
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 413879-2 are classified into two categories based on electrical and mechanical parameter alignment:

Direct Substitutes (Packaging Variant): Parts that maintain identical electrical specifications, mechanical mounting configuration, and material composition but differ only in packaging format. These parts are interchangeable without design modification.

Parametric Equivalents (Specification Alignment): Parts that match all critical electrical parameters (impedance, frequency rating, voltage, operating temperature, mating cycles) and mechanical mounting characteristics (BNC jack, female socket, panel mount, right angle, bulkhead nut, bayonet lock, solder termination) but may vary in secondary characteristics such as body finish material, dielectric composition, or compliance certifications.

Key Parameters for Substitution Eligibility:

Connector style: BNC
Connector type: Jack, Female Socket
Impedance: 50 Ohms
Mounting type: Panel Mount, Through Hole, Right Angle
Mounting feature: Bulkhead - Front Side Nut
Fastening type: Bayonet Lock
Contact termination: Solder
Shield termination: Solder
Frequency maximum: 4 GHz or greater
Operating temperature range: -55°C to 85°C minimum
Voltage rating: 500 V minimum
Mating cycles: 500 minimum

Parameter Comparison

Part Number	Manufacturer	Product Status	Impedance	Frequency Max	Operating Temp	Body Finish	Dielectric Material	RoHS Status	Packaging	Inventory
413879-2	TE Connectivity AMP	Active	50 Ohms	4 GHz	-55°C ~ 85°C	Nickel	PMP	RoHS Compliant	Tray	864 Pcs
5413879-2	TE Connectivity AMP	Active	50 Ohms	4 GHz	-55°C ~ 85°C	Nickel	PMP	RoHS Compliant	Tube	7215 Pcs
227676-1	TE Connectivity AMP	Active	50 Ohms	4 GHz	-55°C ~ 85°C	Nickel	PMP	ROHS3 Compliant	Tray	1140 Pcs
5413879-1	TE Connectivity AMP	Active	50 Ohms	4 GHz	-55°C ~ 85°C	Nickel	PMP	ROHS3 Compliant	Tray	4924 Pcs
5415025-1	TE Connectivity AMP	Active	50 Ohms	4 GHz	-55°C ~ 85°C	Tin	PTFE, PMP	RoHS Compliant	Tray	1110 Pcs
5415025-2	TE Connectivity AMP	Obsolete	50 Ohms	4 GHz	-55°C ~ 85°C	Tin	PTFE	RoHS Compliant	Tray	2456 Pcs
031-5540	Amphenol RF	Active	50 Ohms	1 GHz	-55°C ~ 85°C	Nickel	PP	ROHS3 Compliant	Bag	831 Pcs
BNC5-J-P-GN-RA-BH2D	Samtec Inc.	Active	50 Ohms	4 GHz	-65°C ~ 125°C	Nickel	PTFE	ROHS3 Compliant	Tray	982 Pcs
VBM211	Cinch Connectivity Solutions	Active	50 Ohms	4 GHz	-40°C ~ 85°C	Nickel	PP	RoHS Compliant	Tray	1480 Pcs

Engineering Selection Recommendations

Tier 1 - Direct Substitutes (Identical Specifications):

The part 5413879-2 is a direct substitute for 413879-2, differing only in packaging format (tube versus tray). Both maintain identical electrical and mechanical specifications with RoHS compliance. Selection between these parts depends on assembly process requirements and packaging handling procedures.

Tier 2 - TE Connectivity Parametric Equivalents (Active Status):

Parts 227676-1, 5413879-1, and 5415025-1 are parametric equivalents manufactured by TE Connectivity with active product status. These parts satisfy all critical electrical and mechanical requirements. Part 227676-1 and 5413879-1 carry ROHS3 compliance certification, providing enhanced regulatory alignment for applications requiring updated RoHS standards. Part 5415025-1 incorporates dual dielectric materials (PTFE and PMP) with tin body finish, offering alternative material composition while maintaining 4 GHz frequency capability.

Tier 3 - Obsolete Status (Not Recommended for New Designs):

Part 5415025-2 carries obsolete product status and should not be selected for new circuit designs despite available inventory. Obsolete parts present supply chain risk and lack manufacturer support for future production requirements.

Tier 4 - Alternative Manufacturers (Specification Considerations):

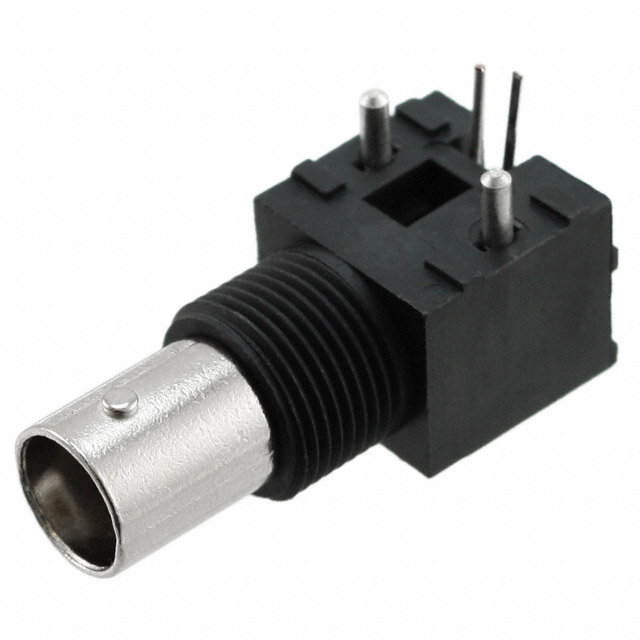

Part 031-5540 (Amphenol RF) meets core electrical and mechanical requirements but operates at reduced maximum frequency (1 GHz versus 4 GHz). This part is suitable only for applications with frequency requirements below 1 GHz. Part BNC5-J-P-GN-RA-BH2D (Samtec Inc.) provides extended operating temperature range (-65°C to 125°C) and ROHS3 compliance, suitable for applications requiring enhanced thermal performance. Part VBM211 (Cinch Connectivity Solutions) operates within a narrower temperature range (-40°C to 85°C) and should be evaluated for temperature-constrained applications.

Frequently Asked Questions (FAQ)

Q: Can 5413879-2 be used as a direct replacement for 413879-2?

A: Yes. Part 5413879-2 is electrically and mechanically identical to 413879-2. The only difference is packaging format (tube versus tray). Both parts are manufactured by TE Connectivity with identical specifications and RoHS compliance status.

Q: What is the difference between the TE Connectivity parts (227676-1, 5413879-1, 5415025-1) and the main part 413879-2?

A: All TE Connectivity parts maintain identical electrical specifications (50 ohms, 4 GHz, 500V, -55°C to 85°C). Differences include body finish material (nickel versus tin) and dielectric composition (PMP versus PTFE/PMP combinations). Parts 227676-1 and 5413879-1 carry ROHS3 certification versus standard RoHS compliance on 413879-2.

Q: Why is 5415025-2 listed but not recommended?

A: Part 5415025-2 carries obsolete product status. While inventory is available, obsolete parts lack manufacturer production support and should not be selected for new designs. Active alternatives with identical specifications are available.

Q: Can the Amphenol RF part 031-5540 replace 413879-2 in all applications?

A: No. Part 031-5540 operates at a maximum frequency of 1 GHz, compared to 4 GHz for 413879-2. This part is suitable only for applications with frequency requirements below 1 GHz. Verify application frequency requirements before substitution.

Q: What are the advantages of the Samtec part BNC5-J-P-GN-RA-BH2D?

A: Part BNC5-J-P-GN-RA-BH2D extends the operating temperature range to -65°C to 125°C (versus -55°C to 85°C for 413879-2) and carries ROHS3 compliance. This part is suitable for applications requiring enhanced thermal performance or updated regulatory compliance. The part includes mounting hardware (lockwasher and nut).

Q: Does the Cinch part VBM211 have any temperature limitations?

A: Yes. Part VBM211 operates within a narrower temperature range (-40°C to 85°C) compared to 413879-2 (-55°C to 85°C). This part is not suitable for applications requiring operation below -40°C. Verify application temperature requirements before selection.

Q: Are all substitute parts RoHS compliant?

A: Yes. All listed substitute parts carry either RoHS Compliant or ROHS3 Compliant certification status. ROHS3 represents updated RoHS standards and may be required for applications with enhanced regulatory requirements.

Q: What packaging formats are available for these BNC connectors?

A: Packaging formats include tray (standard), tube, and bag. Packaging selection depends on assembly process requirements, handling procedures, and inventory management systems. Electrical and mechanical specifications remain identical across all packaging formats.

Q: Can these parts be used interchangeably on the same PCB?

A: Yes, provided the application frequency requirement does not exceed the part's maximum frequency rating. All substitute parts maintain identical mechanical mounting characteristics (panel mount, through-hole, right angle, bulkhead nut, bayonet lock) and solder termination compatibility. Verify frequency and temperature requirements for your specific application.
