TE Connectivity AMP Connectors 413592-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 413592-2 is a coaxial adapter connector designed to convert BNC Plug (Male Pin) to BNC Jack (Female Socket) configurations in a dual-jack T-shaped form factor. This component operates at 50 Ohms impedance and utilizes bayonet lock fastening for secure mating. The part is classified as obsolete, necessitating identification of equivalent substitute components for ongoing system maintenance and new design implementations where this connector type is required.

Substiute Parts

413592-2

TE Connectivity AMP ConnectorsIn Stock: 913413592-2 Datasheet

Current PartRFQ

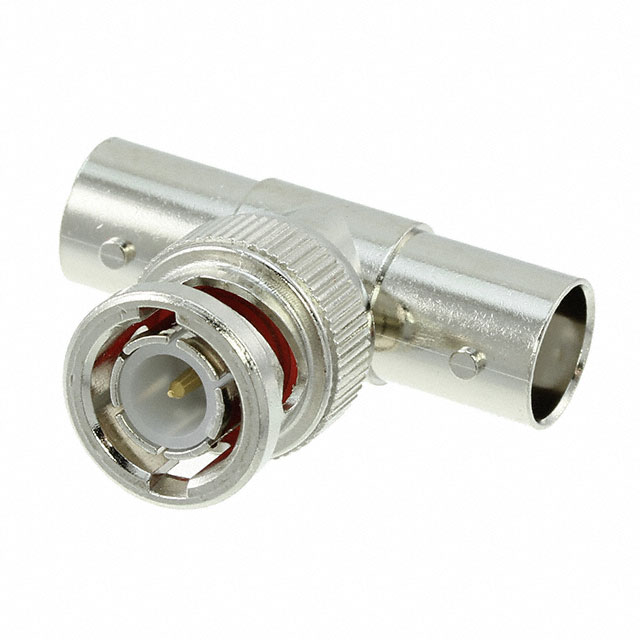

5-1634532-1

TE Connectivity AMP ConnectorsIn Stock: 10375-1634532-1 Datasheet

SimilarRFQ

31-208-RFX

Amphenol RFIn Stock: 143731-208-RFX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity AMP Connectors 413592-2 are qualified based on the following critical parameters that determine functional and mechanical compatibility:

Mandatory Matching Parameters:

• Adapter Type: Plug to Jack
• Adapter Series: BNC to BNC, Dual
• Center Gender: Female to Male
• Convert From: BNC Plug, Male Pin
• Convert To: BNC Jack, Female Socket (2)
• Impedance: 50 Ohms
• Style: T-Shape
• Mounting Type: Free Hanging (In-Line)
• Fastening Type: Bayonet Lock, Bayonet Lock
• Center Contact Plating: Gold

All identified substitute parts meet these mandatory parameters, ensuring direct functional equivalence in RF coaxial adapter applications. Variations in body material composition, dielectric material selection, and compliance certifications are noted but do not affect the core electrical and mechanical substitution criteria.

Parameter Comparison

Engineering Selection Recommendations

TE Connectivity AMP Connectors 5-1634532-1: This substitute maintains identical electrical and mechanical specifications to the 413592-2 while offering RoHS Compliance certification. The part is classified as obsolete but provides a direct functional equivalent. Selection of this part is appropriate for applications requiring RoHS compliance where the original 413592-2 cannot be used due to regulatory constraints. The Greenpar series designation indicates this component is part of TE Connectivity's environmentally compliant product line.

Amphenol RF 31-208-RFX: This substitute is the only active product among the identified equivalents, offering current manufacturing availability and full ROHS3 compliance. The part provides additional technical specifications including maximum frequency rating of 4 GHz, mating cycle rating of 500 cycles, and defined operating temperature range of -40°C to 85°C. Selection of this part is appropriate for new designs, system upgrades, and applications requiring components with active production status and extended technical documentation. The bulk packaging option supports high-volume procurement requirements.

Both substitute parts satisfy the mandatory electrical and mechanical parameters required for direct substitution in BNC coaxial adapter applications. Selection between them depends on product status requirements, compliance certifications, and procurement availability constraints specific to the application.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity AMP Connectors 5-1634532-1 be used as a direct replacement for the 413592-2?

A: Yes. Both parts share identical adapter type, series configuration, center gender, impedance, style, mounting type, and fastening specifications. The primary difference is RoHS compliance status, with the 5-1634532-1 offering RoHS Compliant certification while the 413592-2 is RoHS non-compliant.

Q: What is the primary advantage of selecting the Amphenol RF 31-208-RFX over the TE Connectivity alternatives?

A: The 31-208-RFX is the only active product with current manufacturing status. It provides documented frequency rating (4 GHz maximum), mating cycle specification (500 cycles), and operating temperature range (-40°C to 85°C). Both TE Connectivity parts are classified as obsolete.

Q: Are all three parts electrically equivalent for 50 Ohm RF applications?

A: Yes. All three parts maintain 50 Ohm impedance, identical adapter configuration (BNC Plug to dual BNC Jack), T-shaped form factor, bayonet lock fastening, and gold-plated center contacts. Electrical performance in RF coaxial applications is equivalent across all three parts.

Q: Does the dielectric material difference between parts affect substitution compatibility?

A: The dielectric material variations (PMP/POM Acetal in 413592-2, PE in 5-1634532-1, and POM Acetal in 31-208-RFX) do not affect substitution compatibility. All materials are suitable for 50 Ohm coaxial adapter applications. Material selection reflects manufacturing process differences and compliance requirements rather than functional performance differences.

Q: Which part should be selected for new equipment designs?

A: The Amphenol RF 31-208-RFX is the appropriate selection for new designs due to active product status, full technical specifications, and ROHS3 compliance. Both TE Connectivity parts are obsolete and should not be specified for new equipment development.

Q: Are there packaging differences between the substitute parts?

A: The 31-208-RFX is available in bulk packaging. Packaging specifications for the TE Connectivity parts (413592-2 and 5-1634532-1) are not specified in the provided data.

Q: Can these adapters be used in high-frequency applications above 4 GHz?

A: The 31-208-RFX is rated to 4 GHz maximum frequency. Frequency specifications for the TE Connectivity parts are not provided. Applications requiring operation above 4 GHz require verification against specific system requirements.
