TE Connectivity AMP Connectors 413524-5 Equivalent & Substitute Parts

Part Overview

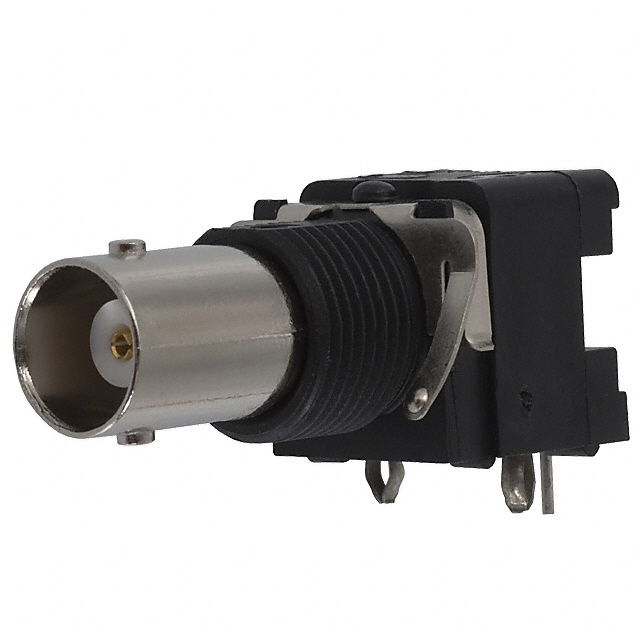

The TE Connectivity AMP Connectors 413524-5 is a BNC Connector Jack, Female Socket rated at 50 Ohms for RF coaxial applications. This panel mount, through-hole, right-angle solder connector operates across a frequency range up to 4 GHz and is designed for PCB integration with bayonet lock fastening. The part is currently Active in product status with 629 units in stock. Substitute parts are identified when equivalent electrical and mechanical parameters are required due to inventory constraints, design flexibility, or application-specific requirements within the same connector category.

Substiute Parts

413524-5

TE Connectivity AMP ConnectorsIn Stock: 710413524-5 Datasheet

Current PartRFQ

413515-7

TE Connectivity AMP ConnectorsIn Stock: 1124413515-7 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 413524-5 are identified based on strict electrical and mechanical parameter equivalence within the BNC coaxial connector category. The substitution logic is based on the following critical parameters:

Electrical Parameters:

• Connector Style: BNC
• Connector Type: Jack, Female Socket
• Impedance: 50 Ohms
• Frequency - Max: 4 GHz
• Voltage Rating: 500 V

Mechanical Parameters:

• Mounting Type: Panel Mount, Through Hole, Right Angle
• Contact Termination: Solder
• Shield Termination: Solder
• Fastening Type: Bayonet Lock
• Mating Cycles: 500

Material & Environmental Parameters:

• Operating Temperature: -55°C ~ 85°C
• Center Contact Material: Phosphor Bronze
• Body Material: Zinc
• Dielectric Material: Polymethylpentene (PMP)

Parts meeting all these parameters are classified as parametric equivalents and direct substitutes for PCB integration applications.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 413515-7 is a direct parametric equivalent to the 413524-5 across all critical electrical, mechanical, and material specifications. Both parts are Active in product status and share identical performance characteristics for 50 Ohm RF coaxial applications up to 4 GHz.

Selection Basis:

The 413515-7 substitute part maintains full compatibility with the 413524-5 in PCB integration applications. All functional parameters—including impedance, frequency response, operating temperature range, voltage rating, and mechanical mounting configuration—are identical. Both connectors employ identical materials (Phosphor Bronze center contact, Zinc body with Nickel finish, Gold plating, and PMP dielectric) and feature the same bayonet lock fastening mechanism with 500 mating cycles.

The 413515-7 offers increased inventory availability (1036 units versus 629 units) while maintaining the same Active product status. The difference in RoHS compliance designation (Not applicable versus RoHS non-compliant) reflects administrative classification and does not affect electrical or mechanical performance.

Both parts are classified under identical export control (EAR99) and tariff codes (8536.69.4010), confirming their functional equivalence for regulatory and procurement purposes.

Frequently Asked Questions (FAQ)

Q: Can the 413515-7 be used as a direct replacement for the 413524-5 in existing PCB designs?

A: Yes. The 413515-7 is a parametric equivalent with identical electrical specifications (50 Ohm impedance, 4 GHz frequency rating, 500 V voltage rating), mechanical configuration (panel mount, through-hole, right-angle solder termination), and material composition. No design modifications are required for substitution.

Q: Are the mounting footprints identical between these two parts?

A: Both parts share identical mounting specifications: Panel Mount, Through Hole, Right Angle configuration with Bulkhead - Front Side Nut mounting feature. The through-hole solder termination and bayonet lock fastening are identical, ensuring footprint compatibility.

Q: What is the difference in RoHS compliance between the two parts?

A: The 413524-5 is designated as RoHS non-compliant, while the 413515-7 is designated as Not applicable. This difference reflects administrative classification and does not indicate a change in material composition or environmental performance. Both parts maintain identical material specifications and operating characteristics.

Q: Do both parts operate across the same temperature range?

A: Yes. Both the 413524-5 and 413515-7 operate across the identical temperature range of -55°C to 85°C, with identical moisture sensitivity level (MSL 1 - Unlimited).

Q: Is there a difference in mating cycle durability?

A: No. Both parts are rated for 500 mating cycles, providing identical mechanical durability for connector engagement and disengagement operations.

Q: Why would the 413515-7 be selected over the 413524-5?

A: The 413515-7 offers higher inventory availability (1036 units in stock compared to 629 units). When equivalent electrical and mechanical performance is required, the substitute part with greater stock availability supports supply chain continuity and reduces procurement lead time.

Q: Are the dielectric materials the same?

A: Yes. Both parts use Polymethylpentene (PMP) as the dielectric material, ensuring identical electrical performance and frequency response characteristics.

Q: Can these parts be intermixed in the same assembly?

A: Yes. The parametric equivalence across all electrical, mechanical, and material specifications allows these parts to be used interchangeably within the same PCB assembly without performance degradation or compatibility issues.
