40P4.6-JMCS-G-TF(N) Equivalent & Substitute Parts

Part Overview

The 40P4.6-JMCS-G-TF(N) is a 40-position rectangular connector plug manufactured by JST Sales America Inc., designed for surface mount applications with outer shroud contacts and gold plating. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing production support, design updates, and inventory management. Substitute parts must maintain identical electrical and mechanical specifications to ensure direct compatibility without circuit redesign or board layout modifications.

Substiute Parts

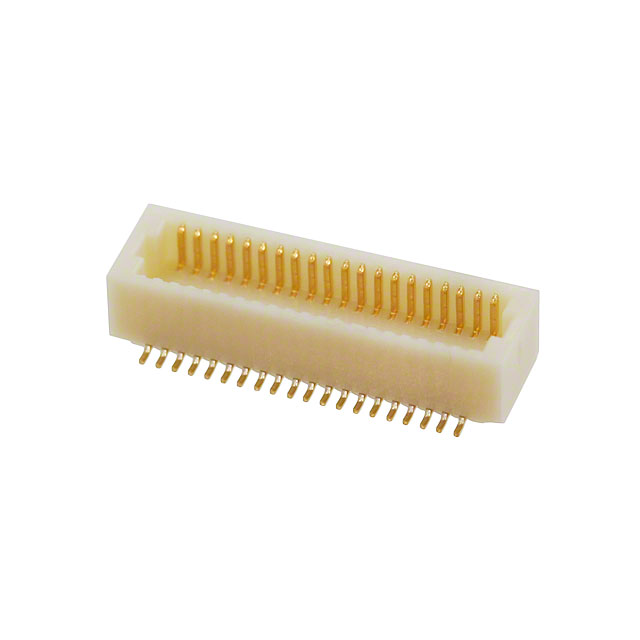

40P3.5-JMCS-G-TF(N)

JST Sales America Inc.In Stock: 81340P3.5-JMCS-G-TF(N) Datasheet

Current PartRFQ

145046040635868+

KYOCERA AVXIn Stock: 2716145046040635868+ Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 40P4.6-JMCS-G-TF(N) is determined by strict equivalence across the following critical parameters:

• Connector Configuration: 40 positions, 2-row arrangement, plug type with outer shroud contacts
• Electrical Interface: 0.020" (0.50mm) pitch contact spacing
• Physical Form Factor: Surface mount package with 4.6mm mated stacking height
• Material Specification: Gold contact finish for signal integrity and corrosion resistance
• Environmental Compliance: RoHS compliance and MSL rating of 1

The identified substitute part 145046040635868+ from KYOCERA AVX meets all these criteria, providing functional and mechanical interchangeability for the obsolete JST component.

Parameter Comparison

Engineering Selection Recommendations

The 145046040635868+ from KYOCERA AVX is the qualified substitute for the obsolete 40P4.6-JMCS-G-TF(N). Selection is based on the following engineering factors:

• Functional Equivalence: Identical electrical and mechanical specifications across all critical parameters ensure direct pin-for-pin compatibility
• Active Product Status: The KYOCERA AVX component is in active production, providing long-term supply chain stability and availability
• Regulatory Compliance: Both components meet RoHS requirements; the substitute carries ROHS3 compliance, representing current regulatory standards
• Environmental Rating: Matching MSL 1 rating confirms equivalent moisture handling and storage requirements
• Export Classification: Both components share the same ECCN and HTSUS classification, simplifying procurement and logistics

No circuit redesign, board layout modification, or additional qualification testing is required for this substitution.

Frequently Asked Questions (FAQ)

Q: Can the 145046040635868+ be used as a direct replacement for the 40P4.6-JMCS-G-TF(N)?

A: Yes. The substitute part maintains identical connector type, position count, pitch, row configuration, mounting method, contact finish, and stacking height. Direct substitution is supported without design changes.

Q: What is the primary reason for substitution?

A: The original JST component is classified as obsolete. The KYOCERA AVX equivalent is in active production, ensuring continued availability and supply chain reliability.

Q: Are there packaging differences between the two parts?

A: The KYOCERA AVX substitute is supplied in Cut Tape (CT) packaging. Verify packaging compatibility with your assembly process requirements.

Q: Do both parts have the same moisture sensitivity rating?

A: Yes. Both components carry MSL 1 (Unlimited), indicating identical moisture handling and storage specifications.

Q: Are there any compliance differences?

A: Both parts are RoHS compliant. The substitute carries ROHS3 compliance, which represents the current regulatory standard. The KYOCERA AVX part also carries REACH Unaffected status, providing additional regulatory clarity.

Q: What is the height above board for the substitute part?

A: The KYOCERA AVX component specifies a height above board of 0.110" (2.80mm). Verify this dimension against your board clearance requirements.

Q: Does the substitute include additional features?

A: The KYOCERA AVX part includes Pick and Place and Solder Retention features, which enhance manufacturing efficiency without affecting electrical or mechanical compatibility.
